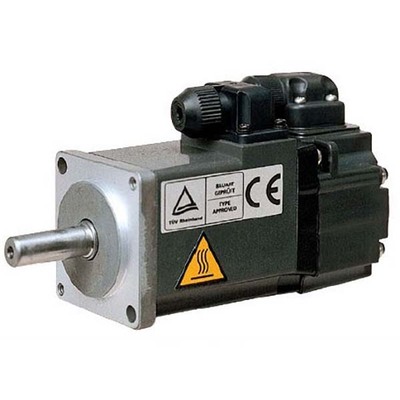

Servo Motor AC Geared MELSERVO JN Mitsubishi Electric HF-KP23BG1 1/12 200W 1/12 3000RPM Freio e Encoder Absoluto - HF-KP23...
,

Servo Motor AC Geared MELSERVO JN Mitsubishi Electric HF-KP23BG1 1/12 200W 1/12 3000RPM Freio e Encoder Absoluto

Consulte as Condições de Fornecimento

Visão geral

O servo motor rotativo AC com engrenagem MELSERVO JN da Mitsubishi Electric, modelo HF-KP23BG1, é um acionador de baixa inércia e

SKU: HF-KP23BG1 1/12 Categorias: , Marca:

Entre em contato

Especificações

Parâmetro Valor
Primary brand Mitsubishi Electric
Main function AC servo motor
Product series / family name MELSERVO JN series
Sub-range name HF-KP series
Functions AC geared rotary servo motor / gearmotor
Design straight shaft built-in e/m brake built-in absolute feedback encod. (18-bit) 1/12 standard gearhead low inertia / small power capacity natural cooling
Supply voltage (AC) 200Vac class
Rated current 1.4A
Rated active power (kW) 200W / 0.2kW
Rotational speed 3000rpm 4500rpm (maximum)
Torque 0.64Nm nominal
Maximum torque 1.9Nm
Moment of inertia 0.000052kg.m2 (0.52kg.cm2)
Mounting mode 90x90mm flange mounting
Degree of protection IP44
Dimensions H92.1mm x W90mm x D263.6mm
Net Height (mm) 92.1 mm
Net Width (mm) 90 mm
Net Depth (mm) 263.6 mm
Ambient air temperature for operation 0…+40 °C
Ambient air temperature for storage -15°C…+70 °C
Maximum current 4.2 A
Order code / Manufacturer SKU HF-KP23BG1 1/12
Manufacturer product status Commercialized
Gear ratio 1/12 (gearhead)
