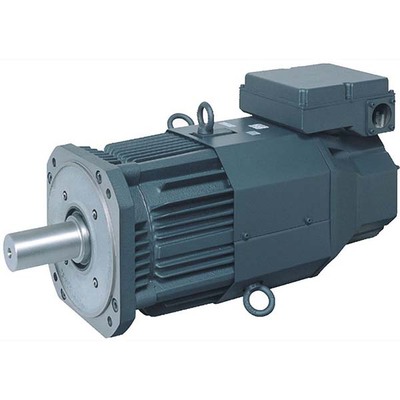

Adquira o Servo Motor AC Brushless Mitsubishi Electric MELSERVO J3 HA-LP11K1M4, 11kW, 70Nm, 400V, com encoder absoluto 18-bit. Ideal para aplicações de alta precisão.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J3 series |
| Sub-range name | HA-LP series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in absolute feedback encod. (18-bit) oil seal low inertia / medium-large power capacity fan cooling |
| Supply voltage (AC) | 400Vac class |
| Rated current | 31A |
| Rated active power (kW) | 11kW |
| Rotational speed | 1500rpm 2000rpm (maximum) |
| Torque | 70Nm nominal |
| Maximum torque | 210Nm |
| Moment of inertia | 0.022kg.m2 (220kg.cm2) |
| Mounting mode | 250x250mm flange mounting |
| Resolution | 18-bit (equivalent to 260000ppr) feedback |
| Degree of protection | IP44 |
| Dimensions | H376mm x W376mm x D605mm |
| Net Height (mm) | 376 mm |
| Net Width (mm) | 376 mm |
| Net Depth (mm) | 605 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 93 A |
| Order code / Manufacturer SKU | HA-LP11K1M4 |
| Manufacturer product status | Discontinued |
| Benefits | low inertia three types of the rated speed are available as standard and larger motors can be mounted either with the flange or the feet injection molding machines semiconductor manufacturing devices large material handling systems press machines |
