Servo Drive Híbrido Multi-Eixos Mitsubishi Electric MDS-EM-SPV3-16080, 160A (Spindle) / 3x80A (Servo), 200-230Vac, IP20.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo drive |
| Product series / family name | MDS-EM-SPV3 series |
| Functions | Multi axis – hybrid AC motion spindle servo drive / amplifier sine wave PWM control/current control method fully closed loop control |
| Design | built-in dynamic brake forced ventilation cooling |
| Supply voltage (AC) | 200Vac-230Vac (200V class; 220Vac / 230Vac) |
| Type of network | 3-phase input (3P) |
| Rated current | max. 160A (spindle) / 3x80A (servo) |
| Communication protocol | No communication interface |
| Degree of protection | IP20 |

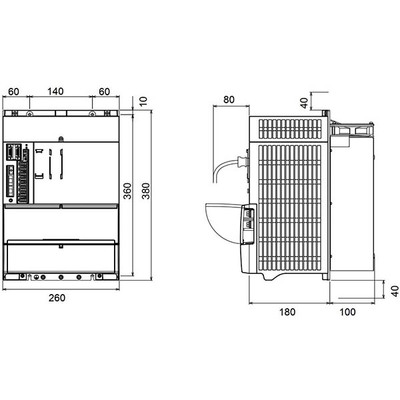

| Dimensions | H380mm x W260mm x D280mm |
| Net Height (mm) | 380 mm |
| Net Width (mm) | 260 mm |
| Net Depth (mm) | 280 mm |
| Ambient air temperature for operation | 0…+55 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Current consumption | 48A input |
| Technical compatibility with | HG series |
| Order code / Manufacturer SKU | MDS-EM-SPV3-16080 |
| Manufacturer product status | Commercialized |
| Benefits | The multi-hybrid drive unit is capable of driving a maximum of three servo axes and one spindle. This contributes to the downsizing of machines and offers technical advantages. Motor pwr. connector comprises an anti-disinsertion mechanism. This helps to eliminate connection errors. Safe torque off (STO) and safe brake control (SBC) are supported in effort to enhance safety features. |
