Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo drive |
| Product series / family name | MDS-DM2 series |
| Functions | Double (2-axis) AC motion servo drive / amplifier sine wave PWM control/current control method Safe torque off (STO) fully closed loop control |
| Design | built-in dynamic brake forced ventilation cooling |
| Supply voltage (AC) | 200Vac-230Vac (200V class; 220Vac / 230Vac) |
| Type of network | 3-phase input (3P) or DC input |
| Rated current | 15.8A (servo) / 67A (spindle axis) |
| Communication protocol | No communication interface |
| Degree of protection | IP20 |

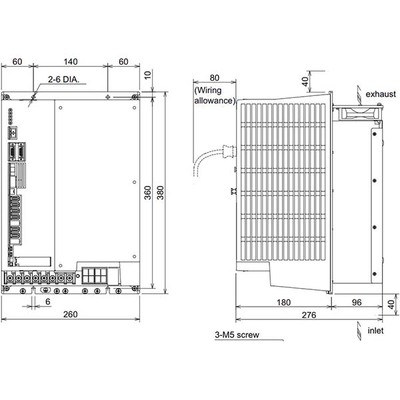

| Dimensions | H380mm x W260mm x D276mm |
| Net Height (mm) | 380 mm |
| Net Width (mm) | 260 mm |
| Net Depth (mm) | 276 mm |
| Ambient air temperature for operation | 0…+55 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Current consumption | 55A input |
| Technical compatibility with | HF[] series |
| Order code / Manufacturer SKU | MDS-DM2-SPV2-20080 |
| Manufacturer product status | Commercialized |
| Benefits | Multi-hybrid drives A line of high-performance multi-hybrid drive units are available The multi-hybrid drive unit drives a maximum of three servo axes and one spindle Supporting the downsizing of units and offering technical advantages |
