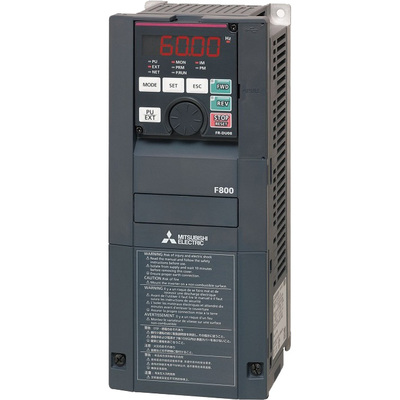

Inversor Mitsubishi Electric FR-F820-01540-1-60: 37kW, 220V O Inversor de Frequência FR-F820-01540-1-60 da Mitsubishi Electric é uma solução robusta para controle de velocidade e frequência em aplicações industriais. Com potências nominais de 37kW (50HP) e tensão de alimentação de 200-240VCA trifásico, este dispositivo é ideal para cargas leves (LD). Este inversor da série FREQROL FR-F800 oferece um amplo espectro de controle de frequência de saída, de 0.2 a 590Hz, com recursos avançados como controle PWM de alta frequência de portadora e controle vetorial de fluxo magnético. Sua construção inclui revestimento conformal (conforme IEC60721-3-3 3S2 3C2) e saída PTO (Pulse Train Output), garantindo maior durabilidade e flexibilidade. A capacidade de comunicação Modbus RTU integrada facilita a supervisão e o controle remoto, integrando-se facilmente a sistemas de automação existentes. O inversor também conta com proteção contra falhas diversas, garantindo a segurança e a confiabilidade da operação. ### Principais recursos * Controle de velocidade/frequência variável (VSD/VFD) * Revestimento conformal para resistência química * Saída PTO (Pulse Train Output) * Comunicação Modbus RTU * Ampla gama de funções de proteção * Controle de alta frequência de portadora PWM * Controle vetorial de fluxo magnético avançado * Controle de motor PM * Operação em múltiplos níveis de velocidade * Proteção térmica * Frenagem por injeção de CC * Operação JOG * Prevenção de estolamento * Evitação de regeneração * Compensação de escorregamento * Suavização de velocidade * Travessa * Auto sintonia * Seleção aplicada de motor * Controle PID * Seleção de parada (parada por desaceleração/coasting) * Função de parada por desaceleração com falha de energia * Função PLC * Diagnóstico de vida útil * Temporizador de manutenção * Monitor de corrente média * Múltiplas classificações * Função de teste * Entrada de alimentação de 24VCC para circuito de controle * Função de parada de segurança * Autogerenciamento de energia * Comunicação BACnet * Ajuste de ganho PID * Seleção de operação do ventilador de resfriamento * Armazenamento de características de carga * Direção de emergência ### Especificações | Parâmetro | Valor
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name | FREQROL FR-F800 series |
| Network frequency | (output) 0.2-590 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) / Inverter Soft-PWM control High carrier frequency PWM control Advanced magnetic flux vector control PM motor control Maximum and minimum frequency settings Multi-speed operation Acceleration/deceleration pattern Thermal protection DC injection braking Starting frequency JOG operation Output stop (MRS) Stall prevention Regeneration avoidance Increased magnetic excitation deceleration DC feeding Frequency jump Rotation display Automatic restart after instantaneous power failure Electronic bypass sequence Remote setting Retry function Carrier frequency selection Fast-response current limit Forward/reverse rotation prevention Operation mode selection Slip compensation Speed smoothing control Traverse Auto tuning Applied motor selection RS-485 communication PID control PID pre-charge function Cooling fan operation selection Stop selection (deceleration stop/coasting) Power-failure deceleration stop function PLC function Life diagnosis Maintenance timer Current average monitor Multiple rating Test run 24V power supply input for control circuit Safety stop function Self power management BACnet communication PID gain tuning Cleaning Load characteristics storage Emergency drive |
| Design | conformal coating FM term. (PTO output) Forced air cooling |
| Supply voltage (AC) | 200Vac-240Vac (220Vac / 230Vac) |
| Type of network | 3-phase/3P |
| Rated current | 140A (LD Light duty) 154A (SLD Super Light duty) 110% In for 60s / 120% In for 3s overload current rating (inverse-time characteristics; Super light duty) 120% In for 60s / 150% In for 3s overload current rating (inverse-time characteristics; Light duty) |
| Rated active power (kW) | 37kW (LD Light duty) 37kW (SLD Super Light Duty) |
| Rated power (HP) | 50HP (LD Light Duty) 50HP (SLD Super Light Duty) |
| Protection functions | Overcurrent trip during acceleration Overcurrent trip during constant speed Overcurrent trip during deceleration or stop Regenerative overvoltage trip during acceleration Regenerative overvoltage trip during constant speed Regenerative overvoltage trip during deceleration or stop Inverter overload trip (electronic thermal relay function) Motor overload trip (electronic thermal relay function) Heatsink overheat Stall prevention stop Upper limit fault detection Lower limit fault detection Output side earth (ground) fault overcurrent Output short-circuit Option fault Communication Option fault Parameter storage device fault PU disconnection Output phase loss CPU fault Operation panel power supply short circuit/RS-485 terminals power supply short circuit 24Vdcpower fault Communication fault (inverter) Analog input fault USB communication fault Safety circuit fault Internal circuit fault User definition error in the PLC function Detection of loss of synchronism detection (not available in initial status) External thermal relay operation PTC thermistor operation Retry count excess Abnormal output current detection Overspeed occurrence 4mA input fault Pre-charge fault PID signal fault Inrush current limit circuit fault Instantaneous power failure Undervoltage Input phase loss |
| Communication protocol | Modbus RTU |
| Digital inputs | 1 x digital input (source/sink) (STF) 1 x digital input (source/sink) (STR) 1 x digital input (source/sink) (STOP) 1 x digital input (source/sink) (RH) 1 x digital input (source/sink) (RM) 1 x digital input (source/sink) (RL) 1 x digital input (source/sink) (JOG) 1 x digital input (source/sink) (RT) 1 x digital input (source/sink) (MRS) 1 x digital input (source/sink) (RES) 1 x digital input (source/sink) (AU) 1 x digital input (source/sink) (CS) 1 x digital input (SS1 safe stop channel 1) 1 x digital input (SS1 safe stop channel 2) |
| Digital outputs | 1 x digital output (SPDT (Single Pole Double Throw contact A1/B1/C1) (programmable) 1 x digital output (SPDT Single Pole Double Throw contact A2/B2/C2) (programmable) 1 x digital output (sink/source open collector transistor) (RUN; programmable) 1 x digital output (sink/source open collector transistor) (SU; programmable) 1 x digital output (sink/source open collector transistor) (IPF; programmable) 1 x digital output (sink/source open collector transistor) (OL; programmable) 1 x digital output (sink/source open collector transistor) (FU; programmable) 1 x digital output (PTO Pulse Train Output) (Frequency meter indicator) 1 x digital output (programmable) (SO – Safety Monitor Output) |
| Analog inputs | 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) 1 x analog input (0-5Vdc / 0-10Vdc) 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) |
| Analog outputs | 1 x analog output (0-10Vdc) (signal output) |
| Degree of protection | IP00 |
| Chemical resistance | Chemical resistance (circuit board coating – IEC60721-3-3 3S2 3C2) |
| Rated apparent power (S) | 53kVA (LD Light Duty) 59kVA (SLD Super Light Duty) |
| Application type | Fan Pump Air conditioning |
| Order code / Manufacturer SKU | FR-F820-01540-1-60 |
| Manufacturer product status | Commercialized |
| Equivalent to | FRF82001540160 |
| Compliant with standard(s) | UL cUL CE KC (South Korea) Radio Waves Act RoHS IEC60721-3-3 (3S2; 3C2) |
