## Principais recursos * Controle de velocidade e frequência variável (VSD/VFD) * Revestimento protetor (AM term. e resistência química) * Certificação SIL2 / PLd * Comunicação RS-485 integrada * Grau de proteção IP20 * Operação em múltiplas classes de tensão (380-480VCA) * Controle PWM Soft-PWM * Controle PWM de alta frequência de portadora * Seleção entre controle V/F e controle vetorial de fluxo magnético avançado * Controle vetorial sem sensor avançado * Controle de motor PM (Ímã Permanente) * Ajuste de frequência máxima e mínima * Operação multi-velocidade * Padrões de aceleração/desaceleração configuráveis * Proteção térmica * Freio por injeção de CC * Frequência de partida * Operação JOG * Parada de saída (MRS) * Prevenção de stall (travamento) * Evita regeneração * Salto de frequência * Exibição de rotação * Reinício automático após falha momentânea de energia * Configuração remota * Aceleração/desaceleração automática * Função de retentativa * Seleção de frequência de portadora * Limite de corrente de resposta rápida * Prevenção de rotação inversa * Seleção do modo de operação * Compensação de escorregamento * Controle de queda (droop) * Suavização de velocidade * Travessa (Traverse) * Auto-sintonia para motores de Indução (IM) e Ímã Permanente (PM) * Economia de energia * Redução de tempo de inatividade * Aplicações: fábrica inteligente, ventiladores, sistemas de transferência, linhas de processamento de alimentos, embalagens de alimentos, máquinas de corte, sprinklers, linhas de produção automotiva, bombas.—SEPARATOR—## Especificações | Parâmetro | Valor | | :—————————— | :———————————————————————————————————————————————————————- | | Marca principal | Mitsubishi Electric | | Função principal | Inversor de Frequência (VSD/VFD) | | Série/família do produto | FREQROL FR-E800 series | | Frequência da rede (saída) | 0.2-590 Hz | | Tensão de alimentação (CA) | 380Vac-480Vac (400Vac / 415Vac / 440Vac) | | Tipo de rede | Trifásica/3P | | Corrente nominal | 4A (ND Normal Duty) 5.5A (LD Light duty) 150% In por 60s / 200% In por 3s (sobrecarga; características inversas no tempo; serviço normal) 120% In por 60s / 150% In por 3s (sobrecarga; características inversas no tempo; serviço leve) | | Potência ativa nominal (kW) | 1.5kW (ND Normal Duty) 2.2kW (LD Light duty) | | Potência nominal (HP) | 2HP (ND Normal Duty) 3HP (LD Light duty) | | Protocolo de comunicação | RS-485 | | Entradas digitais | 1 x entrada digital (sink) (STF) 1 x entrada digital (sink) (STR) 1 x entrada digital (sink) (RH) 1 x entrada digital (sink) (RM) 1 x entrada digital (sink) (RL) 1 x entrada digital (sink) (MRS) 1 x entrada digital (sink) (RES) 1 x entrada digital (SS1 safe stop channel 1) 1 x entrada digital (SS1 safe stop channel 2) | | Saídas digitais | 1 x saída digital (contato SPDT (Single Pole Double Throw A/B/C) (programável) 1 x saída digital (transistor coletor aberto sink/source) (RUN; programável) 1 x saída digital (transistor coletor aberto sink/source) (FU; programável) 1 x saída digital (programável) (SO – Saída de Monitoramento de Segurança) 1 x saída digital (PTO Pulse Train Output) | | Entradas analógicas | 1 x entrada analógica (0-5Vdc / 0-10Vdc / 0-20mA) 1 x entrada analógica (0-5Vdc / 0-10Vdc / 4-20mA) | | Saídas analógicas | 1 x saída analógica (-10…+10Vdc; 12 bits) | | Grau de proteção | IP20 | | Temperatura do ar ambiente para operação | -20…+60 °C | | Resistência química | Resistência química (revestimento da placa de circuito – IEC60721-3-3 3S2 3C2) | | Potência aparente nominal (S) | 3kVA (ND Normal Duty) 4.2kVA (LD Light duty) | | Código de pedido / SKU Fabricante | E840-0040-5-60 FR-E840-0040-5-60 | | Status do produto do fabricante | Comercializado | | Equivalente a | FR-E840-0040-5-60 FRE8400040560 | | Conformidade com normas | cULus CE TUV IEC60721-3-3 (3S2; 3C2) | | Classe | SIL2 PLd |—SEPARATOR—## Documentos * [Mitsubishi Electric – Factory Automation (FA) – FREQROL – FR-E800 Series – Catalog.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjMvMDEvMTMvMDgvMzYvMjIvNWY2MzdmZmEtNTRmZS00M2Q4LTk2NTQtYjA3ODAzMWMwZTMwL01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBGYWN0b3J5JTIwQXV0b21hdGlvbiUyMChGQSklMjAtJTIwRlJFUVJPTCUyMC0lMjBGUi1FODAwJTIwU2VyaWVzJTIwLSUyMENhdGFsb2cucGRmIl1d?sha=498c932ca6c14242) — Para mais informações e suporte técnico, entre em contato conosco.
Especificações
| Parâmetro | Valor |
|---|---|

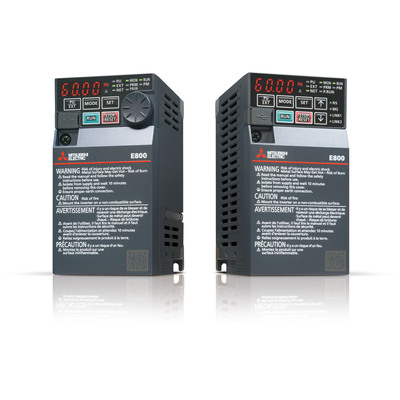

| Primary brand | Mitsubishi Electric |
| Main function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name | FREQROL FR-E800 series |
| Network frequency | (output) 0.2-590 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) / Inverter Soft-PWM control High carrier frequency PWM control Selectable among V/F control Advanced magnetic flux vector control Real sensorless vector control PM motor control Maximum and minimum frequency settings Multi-speed operation Acceleration/deceleration pattern Thermal protection DC injection brake Starting frequency JOG operation Output stop (MRS) Stall prevention Regeneration avoidance Frequency jump Rotation display Automatic restart after instantaneous power failure Remote setting Automatic acceleration/deceleration Retry function Carrier frequency selection Fast-response current limit Forward/reverse rotation prevention Operation mode selection Slip compensation Droop control Speed smoothing control Traverse Auto tuning Applied motor selection PID control Easy dancer control Cooling fan operation selection Stop selection (deceleration stop/coasting) Power-failure deceleration stop function Stop-on-contact control PLC function Life diagnosis Maintenance timer Current average monitor Multiple rating Speed control Torque control Torque limit Safety stop function |
| Design | conformal coating AM term. 400V class (3-phase) Forced air cooling |
| Supply voltage (AC) | 380Vac-480Vac (400Vac / 415Vac / 440Vac) |
| Type of network | 3-phase/3P |
| Rated current | 4A (ND Normal Duty) 5.5A (LD Light duty) 150% In for 60s / 200% In for 3s overload current rating (inverse-time characteristics; normal duty) 120% In for 60s / 150% In for 3s overload current rating (inverse-time characteristics; Light duty) |
| Rated active power (kW) | 1.5kW (ND Normal Duty) 2.2kW (LD Light duty) |
| Rated power (HP) | 2HP (ND Normal Duty) 3HP (LD Light duty) |
| Protection functions | Overcurrent trip during acceleration Overcurrent trip during constant speed Overcurrent trip during deceleration or stop Regenerative overvoltage trip during acceleration Regenerative overvoltage trip during constant speed Regenerative overvoltage trip during deceleration or stop Inverter overload trip Motor overload trip Heatsink overheat Undervoltage Input phase loss Stall prevention stop Loss of synchronism detection Upper limit fault detection Lower limit fault detection Brake transistor alarm detection Output side earth (ground) fault overcurrent Output short-circuit Output phase loss External thermal relay operation Option fault Communication Option fault Parameter storage device fault PU disconnection Retry count excess CPU fault Abnormal output current detection Inrush current limit circuit fault USB communication fault Analog input error Safety circuit fault Overspeed occurrence Speed deviation excess detection Brake sequence fault PID signal fault Ethernet communication fault Opposite rotation deceleration fault Internal circuit fault User definition error by the PLC function Board combination mismatch Fan alarm Stall prevention (overcurrent) Stall prevention (overvoltage) Regenerative brake pre-alarm Electronic thermal relay function pre-alarm PU stop Maintenance timer warning Parameter write error Operation panel lock Password locked Speed limit indication Safety stop Ethernet communication fault Duplicate IP address IP address fault Incorrect parameter setting |
| Communication protocol | RS-485 |
| Digital inputs | 1 x digital input (sink) (STF) 1 x digital input (sink) (STR) 1 x digital input (sink) (RH) 1 x digital input (sink) (RM) 1 x digital input (sink) (RL) 1 x digital input (sink) (MRS) 1 x digital input (sink) (RES) 1 x digital input (SS1 safe stop channel 1) 1 x digital input (SS1 safe stop channel 2) |
| Digital outputs | 1 x digital output (SPDT (Single Pole Double Throw contact A/B/C) (programmable) 1 x digital output (sink/source open collector transistor) (RUN; programmable) 1 x digital output (sink/source open collector transistor) (FU; programmable) 1 x digital output (programmable) (SO – Safety Monitor Output) 1 x digital output (PTO Pulse Train Output) |
| Analog inputs | 1 x analog input (0-5Vdc / 0-10Vdc / 0-20mA) 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) |
| Analog outputs | 1 x analog output (-10…+10Vdc; 12-bit) |
| Degree of protection | IP20 |
| Ambient air temperature for operation | -20…+60 °C |
| Chemical resistance | Chemical resistance (circuit board coating – IEC60721-3-3 3S2 3C2) |
| Rated apparent power (S) | 3kVA (ND Normal Duty) 4.2kVA (LD Light duty) |
| Application type | Smart factory Fans Transfer systems Food processing lines Food Packaging Cutting machines Sprinklers Automotive production lines Pumps |
| Order code / Manufacturer SKU | E840-0040-5-60 FR-E840-0040-5-60 |
| Manufacturer product status | Commercialized |
| Equivalent to | FR-E840-0040-5-60 FRE8400040560 |
| Compliant with standard(s) | cULus CE TUV IEC60721-3-3 (3S2; 3C2) |
| Class | SIL2 PLd |
| Benefits | Compact design Dual overload rating Auto-tune to Induction Motors (IM) and Permanent Magnet (PM) motors Energy saving Downtime reduction |
