Fotomicrossensores Omron EEGuia de referências
Também cadastrado como OMRON-FOTOMICROSSENSORES-OMRON-EE
Fotomicrossensores Omron EE. Consulte a lista de referências, documentação e orientações para cotação.
Disponibilidade e prazo são confirmados na cotação.

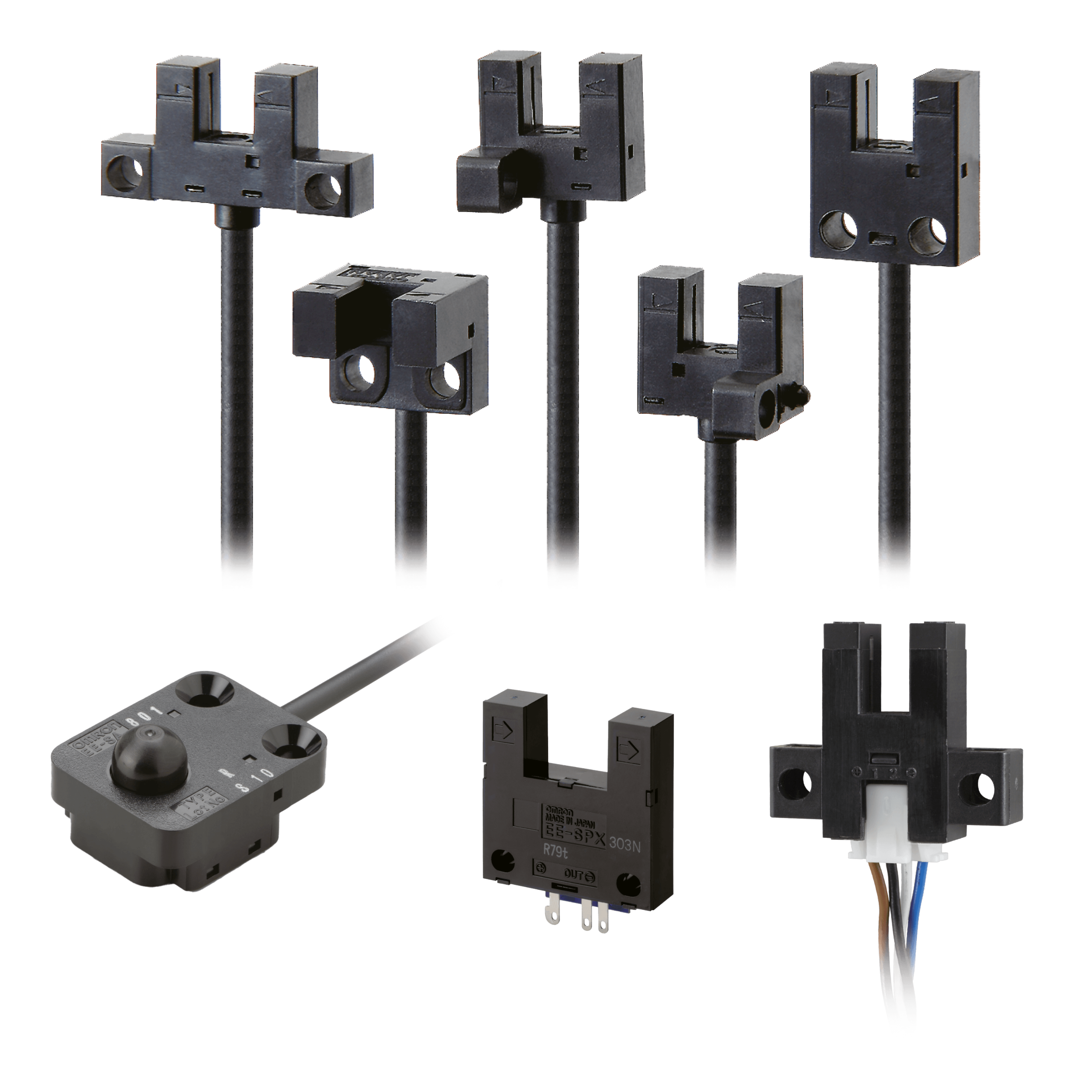

Fotomicrossensores Omron EEFotografia específica não disponível
Códigos e documentação
Fotomicrossensores Omron EE. Compare a geometria do sensor, a fenda ou distância, a saída NPN ou PNP e a lógica Light-ON ou Dark-ON. Confira também o cabo ou conector e a tensão de alimentação. Buscas sem hífens ajudam a localizar a referência, mas o pedido deve manter o código completo do fabricante.
As tabelas abaixo contêm 93 referências com link direto por código. Use a busca para localizar o part number, inclusive sem espaços ou hífens; confirme sempre os sufixos antes de cotar.
Fichas por part number
- EE-SX870P 2M — Fotomicrossensor PNP com cabo de 2 m
Fotomicrossensores EE
| Imagem | Part number | Descricao tecnica | Datasheet |
|---|---|---|---|
| # EE-SX770A EESX770A | Sensor, Photomicro, Thin Compact Slot, Cable Termination, NPN, 5mm | Datasheet | |
| # EE-SX951P-W 1M EESX951PW1M | L-Shp 5Mm Pw Pnp 1M | Datasheet | |
| # EE-SX671P-WR 1M EESX671PWR1M | 5Mm Slot Lsh, L/D-On, Pnp, 1Mc | Datasheet | |
| # EE-SX671 EESX671 | Photoelectric Sensors, Slot-type, Through-Beam, 5mm, NPN Out, L-Shape | Datasheet | |
| # EE-SX872P EESX872P | Tc Slot Pms Pnp L-On T Shape | Datasheet | |
| # EE-SPX303N EESPX303N | Sensor, Indicator, Photomicro, 13 mm, Infrared Light, Dark ON, Modulated Light | Datasheet | |
| # EE-SPX613 EESPX613 | Liquid Level Sensor, Slot, Through Beam, NPN, Pre-wired, EE-SPX Series | Datasheet | |
| # EE-SX671P EESX671P | Sensor, PNP, Thru Beam Retroreflective Sensing Mode, Photoelectric, 5 mm | Datasheet | |
| # EE-SX672-WR 1M EESX672WR1M | Photoelectric Sensor Slot, Through Beam, NPN, 0.005m Range, EE-SX67 Series | Datasheet | |
| # EE-SX771R EESX771R | Tc Slot Pms Pnp D-On L Shape | Datasheet | |
| # EE-SX772 EESX772 | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX770 EESX770 | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX770R EESX770R | Thin Compact Slot Pms Pnp D-On | Datasheet | |
| # EE-SPY302 EESPY302 | Sensor, Dark-ON, Diffuse Mode Sensing Mode, Photoelectric, 5 mm, Red LED | Datasheet | |
| # EE-SX672 EESX672 | Photoelectric Sensors, Slot-type, Through-Beam, 5mm, NPN Out, T-Shape | Datasheet | |
| # EE-SX870 EESX870 | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SPY402 EESPY402 | Sensor, Light-ON, Diffuse Mode Sensing Mode, Photoelectric, 5 mm, Red LED | Datasheet | |
| # EE-SX871A EESX871A | Tc Slot Pms Npn L-On L Shape | Datasheet | |
| # EE-SX671A EESX671A | Photoelectric Sensors, Slot-type, Through-Beam, 5mm, NPN Out, L-Shape | Datasheet | |
| # EE-SX677-WR 1M EESX677WR1M | PHOTOMICROSENSOR R-SHAPED 5MM NPN DARK/LIGHT-ON PRE-WIRED, EE-SX67 Series | Datasheet | |
| # EE-SX674 EESX674 | Sensor, Photomicrosensor, Slot Type, 5mm, DarkOn/LightOn, NPN Output | Datasheet | |
| # EE-SPX403N EESPX403N | Sensor, Indicator, Photomicro, 13 mm, Infrared Light, Light ON, Modulated Light | Datasheet | |
| # EE-SX674P EESX674P | Photoelectric Sensor F Slot 5mm Range Light-ON/Dark-ON PNP EE-SX67 Series | Datasheet | |
| # EE-SX674P-WR 1M EESX674PWR1M | 5Mm Slot Clm, L/D-On, Pnp, Con | Datasheet | |
| # EE-SX951-W 1M EESX951W1M | Slot Photomicrosensor, 5mm, Pre-Wired, NPN, 1m Cable, IP50, EE-SX Series | Datasheet | |
| # EE-SX672A EESX672A | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX772P EESX772P | Tc Slot Pms Pnp D-On T Shape | Datasheet | |
| # EE-SX674A EESX674A | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX670 EESX670 | Photoelectric Sensors, Slot-type, Through-Beam, 3.6mm, NPN Out, L-Shape | Datasheet | |
| # EE-SX670A EESX670A | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SPW321 EESPW321 | Sensor, Dark-ON, Photomicro, 300 mm, Infrared, Modulated Light, EE-SPW Series | Datasheet | |
| # EE-SY671 EESY671 | Sensor, Diffuse Reflective Sensing Mode, Photoelectric, 1 to 5, Infrared, LED | Datasheet | |
| # EE-SX673-WR 1M EESX673WR1M | Photomicrosensor, Close-Mounting, 5Mm, Npn, Dark/Light-On, Pre-Wired | Datasheet | |
| # EE-SX771 EESX771 | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX673 EESX673 | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX872 EESX872 | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX672P EESX672P | Sensor, Photomicrosensor, T-Shaped, Slot, 5Mm Width, Light-On/Dark-On | Datasheet | |
| # EE-SX952-W 1M EESX952W1M | Photo sensor, F-shaped, 6.5 mm slot, 2 NPN outputs, 1m cable, EE-SX95 Series | Datasheet | |
| # EE-SX674R EESX674R | Photoelectric Sensor Close Mount Slot 5mm Range Light/Dark-ON PNP EE-SX67 Series | Datasheet | |
| # EE-SX771P EESX771P | Tc Slot Pms Pnp D-On L Shape | Datasheet | |
| # EE-SY672 EESY672 | Sensor, Diffuse Reflective Sensing Mode, Photoelectric, 1 to 5, Infrared, LED | Datasheet | |
| # EE-SX471 EESX471 | Sensor Photomicrosensor L-Shaped Slot 5Mm Width Light-On | Datasheet | |
| # EE-SX674-WR 1M EESX674WR1M | Photomicrosensor, Close-Mounting, 5Mm, Npn, Dark/Light-On, Pre-Wired | Datasheet | |
| # EE-SPY412 EESPY412 | Sensor, Light-ON, Diffuse Mode Sensing Mode, Photomicro, 2 to 5 mm, Infrared | Datasheet | |
| # EE-SX974-C1 EESX974C1 | Photomicro Sensor, Slot Type, 5mm Distance, 4 Pole, 24VDC, 1EE-SX97 Series | Datasheet | |
| # EE-SX670P EESX670P | Sensor, PNP, Thru Beam Retroreflective Sensing Mode, Photoelectric, 5 mm | Datasheet | |
| # EE-SPY301 EESPY301 | Sensor, Dark-ON, Diffuse Mode Sensing Mode, Photoelectric, 5 mm, Red LED | Datasheet | |
| # EE-SX472 EESX472 | SENSOR PHOTOMICROSENSOR T-SHAPED SLOT 5MM WIDTH LIGHT-ON, EE-SX47 Series | Datasheet | |
| # EE-SX470 EESX470 | SENSOR PHOTOMICROSENSOR STANDARD SLOT 5MM WIDTH LIGHT-ON, EE-SX47 Series | Datasheet | |
| # EE-SX672P-WR 1M EESX672PWR1M | Non-Modulated, Through-Beam Type, 5 Mm Slot Width, L/D-On, PNP, 1 kHz min | Datasheet | |
| # EE-SPY312 EESPY312 | Sensor, Dark-ON, Diffuse Mode Sensing Mode, Photomicro, 2 to 5 mm, Infrared | Datasheet | |
| # EE-SPY401 EESPY401 | Sensor, Light-ON, Diffuse Mode Sensing Mode, Photoelectric, 5 mm, Red LED | Datasheet | |
| # EE-SX675 EESX675 | Photomicrosensor,W/Connector,T-Shaped,10Mm,Npn,Dark/Light-On,Incident Light | Datasheet | |
| # EE-SPY411 EESPY411 | Sensor, Light-ON, Diffuse Mode Sensing Mode, Photomicro, 2 to 5 mm, Infrared | Datasheet | |
| # EE-SX954-W 1M EESX954W1M | Sensor, U-shp 5mm PW NPN 1M | Datasheet | |
| # EE-SX772A EESX772A | Sensor, Slot Dark-On, T-Shape, Through Beam, NPN, 5 to 24VDC, 5mm, 35 mA | Datasheet | |
| # EE-SPX302-W2A EESPX302W2A | Sensor, Indicator, Photomicro, 3.6 mm, Infrared Light, Dark ON, Modulated Light | Datasheet | |
| # EE-SX970-C1 EESX970C1 | 5MM SLOT L/D-ON NPN STAND | Datasheet | |
| # EE-SX771A | Slot Sensor, 5mm Width, L Shaped, NPN, 2m Cable, Dark-ON, EX-SX77 Series | Datasheet | |
| # EE-SX672R EESX672R | 5Mm Slot Pms L/D-On Pnp Tshape | Datasheet | |
| # EE-SPX401 EESPX401 | Sensor, PNP, Slot Sensing Mode, Photomicro, 3.6 mm, Infrared, 5 to 24 VDC, LED | Datasheet | |
| # EE-SPW321-A EESPW321A | T-BEAM PMS SLIM 11.8IN SD D-ON | Datasheet | |
| # EE-SX954-R 1M EESX954R1M | U-shp 5mm PW NPN 1M Robotic | Datasheet | |
| # EE-SX677 EESX677 | PHOTOMICROSENSOR | Datasheet | |
| # EE-SX671-WR 1M EESX671WR1M | Photoelectric Sensor, Slot, Through Beam, NPN, 0.005m Range, EE-SX67 Series | Datasheet | |
| # EE-SX976-C1 EESX976C1 | 5MM SLOT L/D-ON NPN F-SHAPE | Datasheet | |
| # EE-SX673P EESX673P | Emitter/Detector, Sensor, Connector Model, Supply V 5-24 VDC, 5mm Sensing Dist | Datasheet | |
| # EE-SX871 EESX871 | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX872A EESX872A | Tc Slot Pms Npn L-On T Shape | Datasheet | |
| # EE-SX676 EESX676 | Photomicrosensor,W/Connector,F-Shaped,5Mm,Npn,Dark/Light-On,Incendent Light | Datasheet | |
| # EE-SPX305-W2A EESPX305W2A | Sensor Prewired Slot 5Mm Width 9Mm Depth Dark-On | Datasheet | |
| # EE-SX770P EESX770P | Thin Compact Slot Pms Pnp D-On | Datasheet | |
| # EE-SX673A EESX673A | Sensor, NPN, Slot Sensing Mode, Photomicro, 5 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX952-R 1M EESX952R1M | F-shp 5mm PW NPN 1M Robotic | Datasheet | |
| # EE-SPX843 EESPX843 | Sensor, NPN, Slot Sensing Mode, Photomicro, 3.6 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX871P EESX871P | Tc Slot Pms Pnp L-On L Shape | Datasheet | |
| # EE-SPX306-W2A EESPX306W2A | Sensor, Indicator, Photomicro, 3.6 mm, Infrared Light, Dark ON, Modulated Light | Datasheet | |
| # EE-SPX743 EESPX743 | Sensor, NPN, Slot Sensing Mode, Photomicro, 3.6 mm, Infrared Light, 5 to 24 VDC | Datasheet | |
| # EE-SX970P-C1 | 5MM SLOT L-D-ON PNP STAND, EESX2139M | Datasheet | |
| # EE-SPX405-W2A EESPX405W2A | Sensor, Indicator, Photomicro, 5 mm, Infrared Light, Light ON, Modulated Light | Datasheet | |
| # EE-SX474 EESX474 | Photmicrosensor, Slot, Through-Beam, 5mm, Light-On, NPN, Connector | Datasheet | |
| # EE-SX977-C1 EESX977C1 | 5MM SLOT L/D-ON NPN R-SHAPE | Datasheet | |
| # EE-SPW421 EESPW421 | Sensor, Light-ON, Photomicro, 300 mm, Infrared, Modulated Light | Datasheet | |
| # EE-SX473 EESX473 | 5MM SLOT PMS L-ON NPN C MOUNT | Datasheet | |
| # EE-SX670R EESX670R | 5Mm Slot Pms, L/D-On, Pnp | Datasheet | |
| -- | # EE-SX950-W 1M EESX950W1M | Std 5mm PW NPN 1M | |
| # EE-SX951-R 3M EESX951R3M | L-shp 5mm PW NPN 3M Robotic | Datasheet | |
| # EE-SX870A EESX870A | Sensor, Thin Compact, Slot, PMS, NPN | Datasheet | |
| # EE-SPX402-W2A EESPX402W2A | SENSOR,PREWIRED,SLOT,3.6MM WIDTH,6.6MM DEPTH,LIGHT-ON | Datasheet | |
| # EE-SX671R EESX671R | Photoelectric Sensor, Thru-Beam, 5mm, 4-Pin, Slot PMS L/D-ON, PNP, L-Shape | Datasheet | |
| # EE-SPX404-W2A EESPX404W2A | SENSOR,PREWIRED,SLOT,3.6MM WIDTH,6.6MM DEPTH,LIGHT-ON | Datasheet | |
| # EE-SX870P EESX870P | Fotomicrossensor PNP com cabo de 2 m. Especificações e documentação. | Datasheet | |
| # EESX771P | Photomicro snsr, slm, 5mm slt, L-shpd, indicator incident L-on,D-on,PNP, 2 m cb | Datasheet |
Como solicitar cotação
Informe part number completo, quantidade, aplicação e dados do equipamento instalado. Envie fotos quando houver dúvida de identificação. Preço, disponibilidade e prazo são confirmados na proposta; a lista de códigos não indica estoque imediato.
Identificação da referência
Dados do Fotomicrossensores Omron EE
| Código de referência | Fotomicrossensores Omron EE |
|---|
Referência preservada do cadastro Mokka. Os parâmetros da configuração devem ser conferidos no documento do fabricante antes de selecionar ou substituir o item.
Seleção e reposição do Fotomicrossensores Omron EE
Antes de solicitar Fotomicrossensores Omron EE, confira os pontos abaixo:
- Confira alimentação, entradas e saídas, terminais, montagem e os sufixos do código completo.
- Informe todos os sufixos e a revisão. Códigos parecidos não garantem equivalência.
- Para reposição, envie foto legível da etiqueta e confirme a aplicação com a equipe.
Informe o código completo Fotomicrossensores Omron EE e a quantidade. Para reposição, envie também uma foto legível da etiqueta, e do equipamento no qual será utilizado.
Documentação do Fotomicrossensores Omron EE
Omron — catálogo do fabricantePortal para consulta. Este link não comprova os parâmetros desta referência.Ficha organizada em 28 de outubro de 2026. A origem dos dados e os limites da conferência estão indicados nesta página. Confirme a revisão, a compatibilidade com a aplicação e as condições de fornecimento.
Outros códigos desta família
As referências abaixo possuem configurações próprias. A proximidade do código não confirma equivalência.
