Válvulas proporcionais sem realimentação KDG4V-3M-3 Vickers

Válvulas proporcionais sem realimentação KDG4V-3M/3 Vickers

Consulte as Condições de Fornecimento

Categoria:

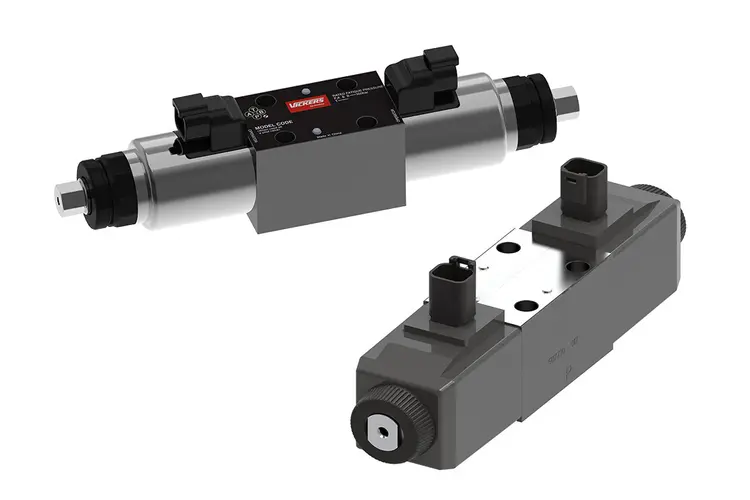

Válvula Proporcional Direcional Manifold Danfoss KDG4V‑3M/3 – Controle Sem Feedback para Máxima Precisão

A válvula proporcional direcional KDG4V‑3M/3 da Danfoss foi desenvolvida para oferecer controle de fluxo, aceleração e frenagem em sistemas hidráulicos que exigem repetibilidade e resposta rápida, sem recorrer a sensores de feedback. O resultado é um conjunto compacto, robusto e pronto para aplicações que vão de plataformas aéreas a máquinas agrícolas e sistemas industriais.

Visão Geral

Montada em subplaca CETOP 3/NG06, esta válvula proporcional de duplo solenóide combina a confiabilidade da linha Vickers com conectores Deutsch IP69K, garantindo proteção superior contra poeira, água e lavagens de alta pressão – ideal para ambientes móveis ou industriais agressivos.

Principais Especificações

  • Pressão máxima (P, A, B): 350 bar (5 000 psi)
  • Pressão no retorno (T): 210 bar (3 000 psi)
  • Vazão nominal: até 30 L/min (7,9 GPM)
  • Tensão de bobina: 12 V DC (1,56 Ω) ou 24 V DC (7,7 Ω)
  • Faixa de temperatura ambiente: ‑20 °C a +70 °C
  • Conectores: Deutsch DT04‑2P macho (par IP69K)

Benefícios do Projeto sem Feedback

  • Menor complexidade de circuito: dispensa sensores externos, reduzindo pontos de falha.
  • Resposta precisa e suave: ajuste proporcional linear de fluxo e direção.
  • Robustez para serviço severo: design protegido contra corrosão (65/66 design) e vibração extrema.
  • Integração facilitada: compatível como válvula piloto para famílias DG5V‑7/8.

Aplicações Típicas

  • Plataformas elevatórias e manipuladores telescópicos
  • Tratores, pulverizadores e equipamentos agrícolas
  • Sistemas de direção e transmissão hidro­staticos em veículos fora‑de‑estrada
  • Bancos de válvulas em máquinas‑ferramenta e prensas industriais

Termos de Busca Relacionados (SEO)

  • Válvula proporcional KDG4V‑3M Danfoss
  • Válvula direcional CETOP 3 sem feedback
  • Proportional directional valve NG06
  • Vickers by Danfoss KDG4V‑3M/3
  • Válvula hidráulica proporcional manifold

Como Escolher o Modelo Ideal

Verifique a vazão e a pressão do seu circuito, escolha o spool que melhor se adapta ao perfil de caudal desejado e selecione a tensão da bobina compatível com sua fonte (12 V ou 24 V). Caso precise de rampas de aceleração customizadas, entre em contato para suporte técnico.

Solicite Sua Cotação

Para preços, prazos de entrega e suporte de aplicação, fale com os especialistas da Mokka‑Sensors. Clique aqui e solicite uma cotação agora mesmo.

Descrição Referência Código do Modelo
KDG4V3-2B-07N MU THROTTLE E040191 N/A
KDG4V 5 33C50N Z VM U H730, KDG4V533C50NZVMUH730 869901 N/A
KDG4V5 2C65S Z VM U H6 30, KDG4V52C65SZVMUH630 869899 N/A
KDG4V 5 33C50N Z M U HA7 30, KDG4V533C50NZMUHA730 859446 N/A
KDG4V 5 33C30N Z M U HA730, KDG4V533C30NZMUHA730 859445 N/A
KDG4V 5 2C50N Z VM U H730, KDG4V52C50NZVMUH730 859273 N/A
KDG4V-3MS-2C19N-H-M-KUP5 -H5-65 853AN00017A N/A
KDG4V-3M-33C50X-H-M-KUP5 -H7-65, KDG4V3M33C50XHMKUP5H765 853AN00014A N/A
KDG4V-3MS-2C08N-M-KUP5-G 5-65, KDG4V3MS2C08NMKUP5G565 853AN00013A N/A
KDG4V-3M-33C30X-M-KUP5-H 7-65, KDG4V3M33C30XMKUP5H765 853AN00003A N/A
KDG4V-3M-33C20N-M-KUP5-H 7-65, KDG4V3M33C20NMKUP5H765 853AN00002A N/A
KDG5V-5-2C70N45-X-T-M-U-H1-10 821AN00130A N/A
KDG5V-7-2C180N100-M-U-H1-20 821AN00129A N/A
KDG5V-7-33C230N-EX-T-M-U-H1-20, KDG5V733C230NEXTMUH120 821AN00128A N/A
KDG5V-7-33C170N-EX-T-M-U-H1-20, KDG5V733C170NEXTMUH120 821AN00127A N/A
KDG5V-7-2C230N-E-H-M-U-H1-20, KDG5V72C230NEHMUH120 821AN00126A N/A
KDG5V-7-2C180N100-X-T-H-M-U-H1-20, KDG5V72C180N100XTHMUH120 821AN00125A N/A
KDG5V-7-33C170N-VM-U-H1-20, KDG5V733C170NVMUH120 821AN00124A N/A
KDG5V-7-2C180N100-EX-H-M-U-H1-20, KDG5V72C180N100EXHMUH120 821AN00123A N/A
KDG5V-7-2C180N-VM-U-H1-20, KDG5V72C180NVMUH120 821AN00122A N/A
KDG5V-7-2C230N140-EX-H-M-U-H1-20, KDG5V72C230N140EXHMUH120 821AN00121A N/A
KDG5V-5-2C70N45-M-U-H1-10, KDG5V52C70N45MUH110 821AN00120A N/A
KDG5V-7-2C180N100-X-T-VM-U-H1-20, KDG5V72C180N100XTVMUH120 821AN00119A N/A
KDG5V-7-33C230N140-E-M-U-H1-20, KDG5V733C230N140EMUH120 821AN00118A N/A
KDG5V-7-33C230N140-X-VM-U-H1-20, KDG5V733C230N140XVMUH120 821AN00117A N/A
KDG5V-7-2C180N100-E-M-U-H1-20, KDG5V72C180N100EMUH120 821AN00116A N/A
KDG5V-7-2C180N100-X-T-M-U-H1-20, KDG5V72C180N100XTMUH120 821AN00115A N/A
KDG5V-7-2C180N100-E-T-M-U-H1-20, KDG5V72C180N100ETMUH120 821AN00114A N/A
KDG5V-7-2C180N100-E-VM-U-H1-20, KDG5V72C180N100EVMUH120 821AN00113A N/A
KDG5V-7-2C180N100-X-M-U-H1-20, KDG5V72C180N100XMUH120 821AN00112A N/A
KDG5V-7-2C180N-X-Z-VM-U-H1-20, KDG5V72C180NXZVMUH120 821AN00111A N/A
KDG5V-7-2C180N-X-H-M-U-H1-20, KDG5V72C180NXHMUH120 821AN00110A N/A
KDG5V-7-2C180N-M-U-H1-20, KDG5V72C180NMUH120 821AN00109A N/A
KDG5V-7-2C180N-EX-H-M-U-H1-20, KDG5V72C180NEXHMUH120 821AN00108A N/A
KDG5V-7-2C180N-EX-M-U-H1-20, KDG5V72C180NEXMUH120 821AN00107A N/A
KDG5V-7-2C180N-E-Z-M-U-H1-20, KDG5V72C180NEZMUH120 821AN00106A N/A
KDG5V-7-2C180N-X-T-H-M-U-H1-20, KDG5V72C180NXTHMUH120 821AN00105A N/A
KDG5V-7-2C180N-T-H-M-U-HA1-20, KDG5V72C180NTHMUHA120 821AN00104A N/A
KDG5V-7-2C180N-X-M-U-H1-20, KDG5V72C180NXMUH120 821AN00103A N/A
KDG5V-7-2C180N-T-M-U-H1-20, KDG5V72C180NTMUH120 821AN00102A N/A
KDG5V-7-2C180N-EX-VM-U-H1-20, KDG5V72C180NEXVMUH120 821AN00101A N/A
KDG5V-7-2C180N-H-M-U-HA1-20, KDG5V72C180NHMUHA120 821AN00100A N/A
KDG5V-7-33C170N-EX-VM-U-H1-20, KDG5V733C170NEXVMUH120 821AN00099A N/A
KDG5V-7-33C170N-X-H-M-U-H1-20, KDG5V733C170NXHMUH120 821AN00098A N/A
KDG5V-7-33C170N-EX-H-VM-U-H1-20, KDG5V733C170NEXHVMUH120 821AN00097A N/A
KDG5V-7-33C170N-X-VM-U-H1-20, KDG5V733C170NXVMUH120 821AN00096A N/A
KDG5V-7-33C170N-H-M-U-H1-20, KDG5V733C170NHMUH120 821AN00095A N/A
KDG5V-7-33C170N-X-M-U-H1-20, KDG5V733C170NXMUH120 821AN00094A N/A
KDG5V-7-33C170N-EX-H-M-U-H1-20, KDG5V733C170NEXHMUH120 821AN00093A N/A
KDG5V-7-33C170N-X-T-M-U-H1-20, KDG5V733C170NXTMUH120 821AN00092A N/A
KDG5V-7-33C170N-T-M-U-H1-20, KDG5V733C170NTMUH120 821AN00091A N/A
KDG5V-7-33C170N-E-M-U-H1-20, KDG5V733C170NEMUH120 821AN00090A N/A
KDG5V-7-2C230N140-E-M-U-H1-20, KDG5V72C230N140EMUH120 821AN00089A N/A
KDG5V-7-33C230N-EX-VM-U-H1-20, KDG5V733C230NEXVMUH120 821AN00088A N/A
KDG5V-7-2C230N140-X-T-M-U-H1-20, KDG5V72C230N140XTMUH120 821AN00087A N/A
KDG5V-7-2C230N140-X-T-H-M-U-H1-20, KDG5V72C230N140XTHMUH120 821AN00086A N/A
KDG5V-7-2C230N-X-Z-VM-U-H1-20, KDG5V72C230NXZVMUH120 821AN00085A N/A
KDG5V-7-2C230N-X-H-M-U-H1-20, KDG5V72C230NXHMUH120 821AN00084A N/A
KDG5V-7-2C230N-M-U-H1-20, KDG5V72C230NMUH120 821AN00083A N/A
KDG5V-7-2C230N-EX-H-M-U-H1-20, KDG5V72C230NEXHMUH120 821AN00082A N/A
KDG5V-7-33C230N-X-H-M-U-H1-20, KDG5V733C230NXHMUH120 821AN00081A N/A
KDG5V-7-33C230N-EX-H-VM-U-H1-20, KDG5V733C230NEXHVMUH120 821AN00080A N/A
KDG5V-7-2C230N-EX-M-U-H1-20, KDG5V72C230NEXMUH120 821AN00079A N/A
KDG5V-7-2C230N-E-Z-M-U-H1-20, KDG5V72C230NEZMUH120 821AN00078A N/A
KDG5V-7-33C230N-X-VM-U-H1-20, KDG5V733C230NXVMUH120 821AN00077A N/A
KDG5V-7-2C230N140-E-T-M-U-H1-20, KDG5V72C230N140ETMUH120 821AN00076A N/A
KDG5V-7-2C230N-X-T-H-M-U-H1-20, KDG5V72C230NXTHMUH120 821AN00075A N/A
KDG5V-7-2C230N-T-H-M-U-HA1-20, KDG5V72C230NTHMUHA120 821AN00074A N/A
KDG5V-7-2C230N-X-M-U-H1-20, KDG5V72C230NXMUH120 821AN00073A N/A
KDG5V-7-33C230N-M-U-H1-20, KDG5V733C230NMUH120 821AN00072A N/A
KDG5V-7-33C230N-H-M-U-H1-20, KDG5V733C230NHMUH120 821AN00071A N/A
KDG5V-7-2C230N-T-M-U-H1-20, KDG5V72C230NTMUH120 821AN00070A N/A
KDG5V-7-2C230N-EX-VM-U-H1-20, KDG5V72C230NEXVMUH120 821AN00069A N/A
KDG5V-7-33C230N-X-M-U-H1-20, KDG5V733C230NXMUH120 821AN00068A N/A
KDG5V-7-33C230N-EX-H-M-U-H1-20, KDG5V733C230NEXHMUH120 821AN00067A N/A
KDG5V-7-33C170N-M-U-H1-20, KDG5V733C170NMUH120 821AN00066A N/A
KDG5V-7-2C180N-T-H-M-U-H1-20, KDG5V72C180NTHMUH120 821AN00065A N/A
KDG5V-7-2C180N-X-T-M-U-H1-20, KDG5V72C180NXTMUH120 821AN00064A N/A
KDG5V-7-2C230N-H-M-U-HA1-20, KDG5V72C230NHMUHA120 821AN00063A N/A
KDG5V-7-2C230N-H-M-U-H1-20, KDG5V72C230NHMUH120 821AN00062A N/A
KDG5V-7-2C230N140-E-VM-U-H1-20, KDG5V72C230N140EVMUH120 821AN00061A N/A
KDG5V-7-33C230N-X-T-M-U-H1-20, KDG5V733C230NXTMUH120 821AN00060A N/A
KDG5V-7-33C230N-T-M-U-H1-20, KDG5V733C230NTMUH120 821AN00059A N/A
KDG5V-7-33C230N-E-M-U-H1-20, KDG5V733C230NEMUH120 821AN00058A N/A
KDG5V-5-2C90N-X-M-U-G1-10, KDG5V52C90NXMUG110 821AN00057A N/A
KDG5V-8-2C330N-T-H-M-U-H1-20, KDG5V82C330NTHMUH120 821AN00056C N/A
KDG5V-7-2C230N-T-H-M-U-H 1-20 821AN00055A N/A
KDG5V-7-2C230N-X-T-M-U-H1-20, KDG5V72C230NXTMUH120 821AN00054A N/A
KDG5V-7-2C230N140-X-M-U- H1-20 821AN00053A N/A
KDG5V-5-33C60N35-VM-U-H1-10, KDG5V533C60N35VMUH110 821AN00052A N/A
KDG5V-5-33C60N35-X-T-VM-U-H1-10, KDG5V533C60N35XTVMUH110 821AN00051A N/A
KDG5V-5-33C80N-X-T-H-VM-U-H1-10, KDG5V533C80NXTHVMUH110 821AN00045C N/A
KDG5V-8-33C330N200-X-T-H-VM-U-H1-20, KDG5V833C330N200XTHVMUH120 821AN00043C N/A
KDG5V-8-133C330N200-X-T-VM-U-H1-20, KDG5V8133C330N200XTVMUH120 821AN00041C N/A
KDG5V-5-33C80N-E-T-H-M-U-H1-10, KDG5V533C80NETHMUH110 821AN00039A N/A
KDG5V-7-33C85N-H-M-U-H1-10, KDG5V733C85NHMUH110 821AN00035A N/A
KDG5V-8-33C330N-EX-M-U-HA1-20, KDG5V833C330NEXMUHA120 821AN00033C N/A
KDG5V-8-33C330N200-X-VM-U-H1-20, KDG5V833C330N200XVMUH120 821AN00032C N/A
KDG5V-8-2C330N-H-VM-U-H1-20, KDG5V82C330NHVMUH120 821AN00031C N/A
KDG5V-8-33C330N-T-M-U-HA1-20, KDG5V833C330NTMUHA120 821AN00029C N/A
KDG5V-8-33C330N-E-H-M-U-H1-20, KDG5V833C330NEHMUH120 821AN00028C N/A
KDG5V-8-33C330N200-X-T-H-M-U-H1-20, KDG5V833C330N200XTHMUH120 821AN00027C N/A
KDG5V-8-33C330N200-EX-H-VM-U-H1-20, KDG5V833C330N200EXHVMUH120 821AN00022C N/A
KDG5V-8-33C330N-X-H-M-U-G1-20, KDG5V833C330NXHMUG120 821AN00021C N/A
KDG5V-8-33C330N-VM-U-H1-20, KDG5V833C330NVMUH120 821AN00019C N/A
KDG5V-8-2C330N-X-T-H-M-U-H1-20, KDG5V82C330NXTHMUH120 821AN00016C N/A
KDG5V-10-33C550N-EX-H-M-U-H1-11, KDG5V1033C550NEXHMUH111 821AN00015B N/A
KDG5V-8-33C330N-EX-H-M-U-H1-20, KDG5V833C330NEXHMUH120 821AN00014C N/A
KDG5V-8-2C330N-EX-M-U-H1-20, KDG5V82C330NEXMUH120 821AN00011C N/A
KDG5V-8-2C330N-X-M-U-H1-20, KDG5V82C330NXMUH120 821AN00008C N/A
KDG5V-8-2C330N-M-U-H1-20, KDG5V82C330NMUH120 821AN00007C N/A
KDG5V-8-33C330N-T-H-M-U-H1-20, KDG5V833C330NTHMUH120 821AN00005C N/A
KDG5V-8-2C330N-EX-T-H-M-U-H1-20, KDG5V82C330NEXTHMUH120 821AN00003C N/A
KDG5V-10-133C550N-X-Z-M-U-H1-11, KDG5V10133C550NXZMUH111 821AN00001B N/A
KDG4V-5-2C70N-M-U-H7-30, KDG4V52C70NMUH730 820AN00050C N/A
KDG4V-3-33C27N-M-U-G7-60, KDG4V333C27NMUG760 820AN00048F N/A
KDG4V-3M-2C30N-M-KUP15-HA7-66 820AN00047F N/A
KDG4V-3-2C30N-M-U-G7-60, KDG4V32C30NMUG760 820AN00046F N/A
KDG4V-3-2C30N-M-U-HA7-60, KDG4V32C30NMUHA760 820AN00045F N/A
KDG4V-3-33C27N-M-U-HA7-60, KDG4V333C27NMUHA760 820AN00044F N/A
KDG4V-5-33C50N25-H-M-U-HA7-30, KDG4V533C50N25HMUHA730 820AN00041C N/A
KDG4V-3M-33C20N-M-KUP15-HA7-66, KDG4V333C20NMKUP5HA760 820AN00040F N/A
KDG4V-3M-2C20N-M-KUP15-HA7-66, KDG4V32C20NMKUP5HA760 820AN00038F N/A
KDG4V-3-2C13N-M-U-HA7-60, KDG4V32C13NMUHA760 820AN00037F N/A
KDG4V-3-33C13N-M-U-G7-60, KDG4V333C13NMUG760 820AN00030F N/A
KDG4V-3-33C20N-M-KUP5-H7-60, KDG4V333C20NMKUP5H760 820AN00028F N/A
KDG4V-3S-2C04N-M-U1-G5-6 0, KDG4V3S2C04NMU1G560 820AN00021F N/A
KDG4V-3S-2C19N-M-U1-HA5- 60, KDG4V3S2C19NMU1HA560 820AN00020F N/A
KDG4V-3-33C20N-M-KUP5-G7-60, KDG4V333C20NMKUP5G760 820AN00015F N/A
KDG4V-3-33C27N-M-U-H7-60, KDG4V333C27NMUH760 820AN00013F N/A
KDG4V-3-2C30N-M-KUP5-G7-60, KDG4V32C30NMKUP5G760 820AN00004F N/A
KDG4V-5-33C50N-Z-VM-U-H7-30, KDG4V533C50NZVMUH730 820AN00003C N/A
KDG4V-3S-2C19N-M-KUP6-G5 -60, KDG4V3S2C19NMKUP6G560 820AN00002F N/A
CKDG5V-7-52C230N-E-T-M-U-HB-20 6051238-001 N/A
CKDG5V-8-52C330N-M-U-HB-20 6051237-001 N/A
CKDG5V-8-52C330N-T-M-U-HB-20 6051236-001 N/A
CKDG5V-8-52C330N-E-T-M-U-HB-20 6051235-001 N/A
CKDG5V-5-52C90N-M-U-HB-10 6051234-001 N/A
CKDG5V-5-52C90N-T-M-U-HB-10 6051233-001 N/A
CKDG5V-5-52C90N-E-M-U-HB-10 6051232-001 N/A
CKDG5V-8-33C330N-E-M-U-HB-20 6051212-001 N/A
CKDG5V-8-2C330N200-E-M-U-HB-20 6051211-001 N/A
CKDG5V-8-2C330N-E-M-U-HB-20 6051210-001 N/A
CKDG5V-7-52C230N-E-M-U-HB-20 6051209-001 N/A
CKDG5V-7-33C230N-E-M-U-HB-20 6051208-001 N/A
CKDG5V-7-2C230N140-E-M-U-HB-20 6051207-001 N/A
CKDG5V-7-2C230N-E-M-U-HB-20 6051206-001 N/A
CKDG5V-5-52C90N-E-T-M-U-HB-10 6051205-001 N/A
CKDG5V-5-2C90N-E-T-M-U-HB-10 6051204-001 N/A
CKDG4V-5-33C70N-M-U-HB7-30 6051203-001 N/A
CKDG4V-5-2C70N-M-U-HB7-30 6051202-001 N/A
CKDG5V-8-52C330N-E-M-U-HB-20 6051175-001 N/A
KDG4V-3M-33C07N-M-KUP15-HA7-66 6051135-001 N/A
CKDG5V-7-2C230N140-M-U-HB-20 6050999-001 N/A
CKDG5V-7-52C230N-M-U-HB-20 6050963-001 N/A
CKDG5V-7-52C230N-T-M-U-HB-20 6050962-001 N/A
KDG5V-7-2C180N-X-T-M-U-H1-20-EN165 6050697-001 N/A
KDG4V-3-33C30X-M-U-H7-60-EN165, KDG4V333C30XMUH760EN165 6050696-001 N/A
CKDG4V-5-52C70N-M-U-HB7-30 6050451-001 N/A
KDG4V-3M-33C07N-M-KUP15-GP7-66, KDG4V3M33C07NMKUP15GP766 6050435-001 N/A
KDG4V-3M-2C07N-M-KUP15-GP7-66 6050434-001 N/A
KDG4V-3M-33C20N-M-KUP15-GP7-66, KDG4V3M33C20NMKUP15GP766 6050432-001 N/A
KDG4V-3M-2C20N-M-KUP15-GP7-66 6050431-001 N/A
KDG4V-3M-2C30N-M-KUP15-GP7-66, KDG4V3M2C30NMKUP15GP766 6050430-001 N/A
KDG4V-3M-33C27N-M-KUP15-GP7-66 6050429-001 N/A
KDG4V3-33C03F-H-M-U-H7-60-EN137 6050417-001 N/A
KDG4V-3-33C13N-M-U-GP7-60-EN176, KDG4V333C13NMUGP760EN176 6050387-001 N/A
KDG4V-3-33C27N-M-U-GP7-60-EN176, KDG4V333C27NMUGP760EN176 6050385-001 N/A
KDG4V-3M-33C27N-M-KUP15-HA7-66, KDG4V3M33C27NMKUP15HA766 6050180-001 N/A
KDG4V-3M-33C13N-M-KUP15-HA7-66 6050179-001 N/A
KDG5V-7-2C180N-X-T-M-U-H1-10-EN165, KDG5V72C180NXTMUH110EN165 6048759-001 N/A
KDG3V-8-33C330N-T-20-EN55, KDG3V833C330NT20EN55 6044541-001 N/A
KDG3V-8-33C330N-20-EN55, KDG3V833C330N20EN55 6044119-001 N/A
KDG4V-3-33C14A-M-KUP5-G5-60-EN149, KDG4V333C14AMKUP5G560EN149 6041290-001 N/A
KDG3V-5-33C80N-10-EN55, KDG3V533C80N10EN55 6040037-001 N/A
KDG3V-8-33C330N200-20-EN55, KDG3V833C330N20020EN55 6040035-001 N/A
KDG4V-3-31C13N-Z-M-U-HA7-60, KDG4V331C13NZMUHA760 6035284-001 N/A
KDG4V-5-2C70NS-H-M-U-G6-30-EN142, KDG4V52C70NSHMUG630EN142 6034770-001 N/A
KDG3V-8-33C330N-E-20-EN134, KDG3V833C330NE20EN134 6033035-001 N/A
KDG3V-8-33C330N200-E-20-EN134, KDG3V833C330N200E20EN134 6033034-001 N/A
KDG4V-5-33C70N-M-U-H7-30-EN56, KDG4V533C70NMUH730EN56 6024812-001 N/A
KDG5V-7-33C170N100-T-M-U-H1-10, KDG5V733C170N100TMUH110 5992998-001 N/A
KDG4V 5 33C50N Z M U H730, KDG4V533C50NZMUH730 565330 N/A
KDG4V 5 33C30N Z M U H730, KDG4V533C30NZMUH730 565329 N/A
KDG4V 5 2C65S Z M U H6 30, KDG4V52C65SZMUH630 565328 N/A
KDG4V 5 2C50N Z M U H7 30, KDG4V52C50NZMUH730 565327 N/A
KDG4V 5 2C50N Z MU G7 30, KDG4V52C50NZMUG730 565326 N/A
KDG4V 5 2C30N Z M U H7 30, KDG4V52C30NZMUH730 565325 N/A
KDG4V3-2C03N-Z-VM-U-H7-60, KDG4V32C03NZVMUH760 12038706 N/A
KDG4V3-33C03N-H-M-U-HA7-60, KDG4V333C03NHMUHA760 12038698 N/A
KDG4V3-33C03N-Z-M-U-H7-60, KDG4V333C03NZMUH760 12038645 N/A
KDG4V3-2C03N-Z-M-U-H7-60, KDG4V32C03NZMUH760 12038644 N/A
KDG4V3-2C03N-H-M-U-H7-60, KDG4V32C03NHMUH760 12038380 N/A
KDG4V3-33C03N-H-M-U-H7-60, KDG4V333C03NHMUH760 12038273 N/A
CKDG5V-7-2C230N140-E-M-U-HB-20 12032129 N/A
KDG3V-7-33C170N-E-20, KDG3V733C170NE20 12031519 N/A
KDG4V-3-2C20N-M-KUP6-HA7-60 12028350 N/A
KDG3V-7-2C230N-E-20-EN55, KDG3V72C230NE20EN55 12023979 N/A
KDG4V-3-33C27N-M-U-GP7-60 12023503 N/A
KDG4V-3M-2C07N-M-KUP5-G7-65 12022848 KDG4V-3M-2C08N-M-KUP5-G7-65
CKDG5V-7-2C230N-T-M-U-HB-20 12022260 N/A
KDG5V-5-33C80N40-X-T-VM-U-H1-10 12020316 N/A
KDG5V-5-33C80N40-X-VM-U-H1-10 12020315 N/A
CKDG4V-5-2C75N-M-U-HB7-30 12020161 N/A
KDG3V-7-33C170N-E-20-EN55, KDG3V733C170NE20EN55 12019720 N/A
KDG5V-10-33C550N310-EX-M-U-H1-11 12017065 N/A
KDG5V-5-33C90N-T-H-M-U-H1-10, KDG5V533C90NTHMUH110 12017033 N/A
KDG5V-7-33C130N65-EX-M-U-H1-20 12016523 N/A
KDG5V-5-33C60N35-EX-M-U-H1-10 12010169 N/A
KDG5V-7-2C180N-E-T-M-U-H1-20, KDG5V72C180NETMUH120 12010127 N/A
KDG4V-3-2C03N-H-M-U-H7-60, KDG4V32C03NHMUH760 12009845 N/A
KDG4V-3-33C03N-H-M-U-H7-60, KDG4V333C03NHMUH760 12009844 N/A
KDG4V3-33C03N-MU-G7-60, KDG4V333C03NMUG760 12009843 N/A
KDG4V-3-2C03N-M-U-G7-60, KDG4V32C03NMUG760 12009842 N/A
KDG4V-3-2C03N-M-U-H7-60, KDG4V32C03NMUH760 12009841 N/A
KDG5V-7-2C180N-X-T-M-U-H1-10-EN165 12008617 N/A
KDG4V-3-33C03N-M-U-H7-60, KDG4V333C03NMUH760 12007916 N/A
KDG5V-8-2C330N200-M-U-HA1-20, KDG5V82C330N200MUHA120 12007369 N/A
KDG5V-7-2C230N140-M-U-HA1-20, KDG5V72C230N140MUHA120 12007366 N/A
KDG5V-7-2C230N140-M-U-HA1-20, KDG5V72C230N140MUHA120 12005312 N/A
KBDG5V-5-33C80N-M2-PE7-H1-11-EN162 12000795 N/A
KDG5V-7-33C130N65-X-VM-U-H1-20 12000774 N/A
KDG5V-10-33C550N310-X-VM-U-H1-11 12000773 N/A
KDG5V-8-2C330N-X-H-M-U-G1-20, KDG5V82C330NXHMUG120 11348319 N/A
KRG4V-5-2C75N-M-U-HA7-30 11347342 N/A
KDG5V-7-33C130N65-X-T-VM-U-H1-20, KDG5V733C130N65XTVMUH120 11344770 N/A
KDG4V-3M-33C-32N-MKUP5-H7-65 11343957 N/A
KDG4V-3-2C30N-H-M-KUP4-HA7-60, KDG4V32C30NHMKUP4HA760 02-414576 N/A
KDG3V-8-33C330N-E-20-EN39, KDG3V833C330NE20EN39 02-414403 N/A
KDG3V-8-2C330N-E-20-EN55, KDG3V82C330NE20EN55 02-414348 N/A
KDG4V-5-2C70N-H-M-U-H7-30, KDG4V52C70NHMUH730 02-414294 N/A
KDG4V5 2C30N Z M U H7 30 EN137, KDG4V52C30NZMUH730EN137 02-414291 N/A
KDG4V 3S 2C08N H M KUP5D2 H5 60 EN70, KDG4V3S2C08NHMKUP5D2H560EN70 02-414117 N/A
KDG4V3-2C20N-M-KUP5-H7-60-EN121, KDG4V32C20NMKUP5H760EN121 02-414048 N/A
KDG5V-7-33C170N-E-VM-U-H1-10, KDG5V733C170NEVMUH110 02-413839 N/A
KDG5V-8-33C330N-X-T-H-M-U-H1-20, KDG5V833C330NXTHMUH120 02-413687 N/A
KDG5V-8-33C330N200-EX-M-U-H1-20, KDG5V833C330N200EXMUH120 02-413669 N/A
KDG4V3-2C30N-M-U-H7-60, KDG4V32C30NMUH760 02-413408 N/A
KDG4V3-2C03F-M-U-G7-60, KDG4V32C03FMUG760 02-413396 N/A
KDG5V-8-33C330N-X-VM-U-H1-20, KDG5V833C330NXVMUH120 02-413366 N/A
KDG4V3-2C20N-VM-U-G7-60, KDG4V32C20NVMUG760 02-413266 N/A
KDG4V3-33C03F-M-U-GP7-60, KDG4V333C03FMUGP760 02-413257 N/A
KDG4V3-2C13N-VM-U-G7-60, KDG4V32C13NVMUG760 02-413224 N/A
KDG5V-8-2C330N-EX-T-M-U-H1-20, KDG5V82C330NEXTMUH120 02-413210 N/A
KDG4V-3-33C27N-M-KUP5-G7-60, KDG4V333C27NMKUP5G760 02-413208 N/A
KDG5V-8-33C330N200-X-T-VM-U-H1-20, KDG5V833C330N200XTVMUH120 02-413166 N/A
VALVE KDG5V-5-33C60N40-VM-U-H1-10, KDG5V533C60N40VMUH110 02-413139 N/A
KDG4V-3-33C13N-Z-VM-U1-H7-60, KDG4V333C13NZVMU1H760 02-413033 N/A
KDG5V-8-33C330N-X-T-M-U-H1-20, KDG5V833C330NXTMUH120 02-412969 N/A
KDG5V-8-33C330N-EX-T-M-U-H1-20, KDG5V833C330NEXTMUH120 02-412968 N/A
KDG4V-3-2C31S-H-M-U-GP7-60, KDG4V32C31SHMUGP760 02-412962 N/A
KDG5V-8-33C330N-T-VM-U-H1-20, KDG5V833C330NTVMUH120 02-412811 N/A
KDG5V-8-33C330N200-M-U-H1-20, KDG5V833C330N200MUH120 02-412759 N/A
KDG5V-7-33C130N65-T-VM-U-H1-10, KDG5V733C130N65TVMUH110 02-412693 N/A
KDG5V-8-33C330N-X-T-VM-U-H1-20, KDG5V833C330NXTVMUH120 02-412611 N/A
KDG5V-7-2C180N-E-T-M-U-H1-10, KDG5V72C180NETMUH110 02-412571 N/A
KDG4V-5-33C50N-M-U-H7-30-EN137 02-412565 N/A
KDG5V-8-33C330N200-E-VM-U-H1-20, KDG5V833C330N200EVMUH120 02-412540 N/A
KDG5V-8-33C330N200-EX-H-M-U-H1-20, KDG5V833C330N200EXHMUH120 02-412529 N/A
KDG5V-8-33C330N200-VM-U-H1-20, KDG5V833C330N200VMUH120 02-412514 N/A
KDG4V3-33C13N-M-U-HA7-60, KDG4V333C13NMUHA760 02-412489 N/A
KDG4V3-2C30N-Z-M-KUP4-H7-60, KDG4V32C30NZMKUP4H760 02-412365 N/A
KDG5V-8-33C330N-EX-M-U-H1-20, KDG5V833C330NEXMUH120 02-412360 N/A
KDG5V-8-33C330N-T-M-U-H1-20, KDG5V833C330NTMUH120 02-412357 N/A
KDG5V-7-2C180N-E-H-M-U-HA1-10, KDG5V72C180NEHMUHA110 02-412268 N/A
KDG5V-5-2C90N-EX-T-M-U-H1-10, KDG5V52C90NEXTMUH110 02-412251 N/A
KDG5V-8-33C330N-E-Z-M-U-H1-20, KDG5V833C330NEZMUH120 02-412200 N/A
KDG5V-8-2C330N-E-Z-M-U-H1-20, KDG5V82C330NEZMUH120 02-412199 N/A
KDG3V-8-2C330N-E-20, KDG3V82C330NE20 02-412198 N/A
KDG3V-8-2C330N-E-20-EN39, KDG3V82C330NE20EN39 02-412031 N/A
KDG5V-7-33C130N65-X-T-M-U-H1-10, KDG5V733C130N65XTMUH110 02-411987 N/A
KDG4V3-2C07N-M-U-HA7-60, KDG4V32C07NMUHA760 02-411949 N/A
KDG4V3-2C13N-H-M-U-HA7-60, KDG4V32C13NHMUHA760 02-411919 N/A
KDG5V-7-33C130N65-X-T-VM-U-H1-10, KDG5V733C130N65XTVMUH110 02-411791 N/A
KDG5V-5-33C60N40-X-T-VM-U-H1-10, KDG5V533C60N40XTVMUH110 02-411790 N/A
KDG4V3-33C13N-H-M-U-HA7-60-EN94, KDG4V333C13NHMUHA760EN94 02-411617 N/A
KDG5V-8-2C330N200-X-T-VM-U-H1-20, KDG5V82C330N200XTVMUH120 02-411613 N/A
KDG4V3-2C30N-M-KUP4-H7-60, KDG4V32C30NMKUP4H760 02-411551 N/A
KDG4V3-33C20N-Z-M-U1-H7-60, KDG4V333C20NZMU1H760 02-411512 N/A
KDG5V-5-33C80N-T-M-U-HR1-10, KDG5V533C80NTMUHR110 02-411419 N/A
KDG4V-3-33C20N10-H-M-U-HA7-60-EN94, KDG4V333C20N10HMUHA760EN94 02-411289 N/A
KDG3V-8-33C330N-E-20, KDG3V833C330NE20 02-411288 N/A
DG4V-3S-8B(L)-M-U1-H5-61 OBSOLETE 02-411258 N/A
KDG5V-7-2C180N-EX-T-M-U-H1-10, KDG5V72C180NEXTMUH110 02-411213 N/A
KDG4V3-33C03F-H-M-U-HA7-60-EN94, KDG4V333C03FHMUHA760EN94 02-411176 N/A
KDG4V3-33C07N-H-M-U-HA7-60-EN94, KDG4V333C07NHMUHA760EN94 02-411175 N/A
KDG4V 3S 2C15N H M KUP5D2 H5 60 EN70, KDG4V3S2C15NHMKUP5D2H560EN70 02-411174 N/A
KDG4V-5-33C50N25-VM-U-H7-30, KDG4V533C50N25VMUH730 02-411098 N/A
KDG4V3-33C20N10-VM-U-H7-60, KDG4V333C20N10VMUH760 02-411097 N/A
KDG5V-7-33C130N65-EX-M-U-H1-10, KDG5V733C130N65EXMUH110 02-411079 N/A
KDG4V-3S-33C04A-M-U-H5-6 0, KDG4V3S33C04AMUH560 02-402895 N/A
KDG4V-3S-33C22N-M-KUP7-G P5-60-EN735, KDG4V3S33C22NMKUP7GP560EN735 02-402805 N/A
KDG4V-3S-2C08N-M-KU-G7-6 0-EN725, KDG4V3S2C08NMKUG760EN725 02-402585 N/A
KDG4V-3-2C19S-M-KUP6-G7- 60-EN726, KDG4V32C19SMKUP6G760EN726 02-402544 N/A
KDG4V-3S-33C22A-M-KU-G7- 60-EN721, KDG4V3S33C22AMKUG760EN721 02-402401 N/A
KDG5V-5-M-33C80N-M-KUP5- -H1-10, KDG5V5M33C80NMKUP5H110 02-402323 N/A
KDG5V-8-M-33C330N-M-KUP5 -H1-20, KDG5V8M33C330NMKUP5H120 02-402322 N/A
KDG5V-8-M-33C330N200-M-K UP5-H1-20, KDG5V8M33C330N200MKUP5H120 02-402321 N/A
KDG5V-10-M-2C550N-X-M-KU P5-H1-11, KDG5V10M2C550NXMKUP5H111 02-402239 N/A
KDG4V-3S-33C22A-M-KUP6-H 5-60-EN711, KDG4V3S33C22AMKUP6H560EN711 02-401709 N/A
KDG4V-3S-2C08N-M-KU-GP5- 60-EN704, KDG4V3S2C08NMKUGP560EN704 02-401479 N/A
KDG4V-3S-33C22A-H-M-KUP5 -GP5-60, KDG4V3S33C22AHMKUP5GP560 02-401477 N/A
KDG3V-10-33C550N-11, KDG3V1033C550N11 02-400464 N/A
KDG4V-3S-2C19N-VM-KU-GP7-60-EN648, KDG4V3S2C19NVMKUGP760EN648 02-400248 N/A
KDG4V-3S-2C15N-M-KU-H7-6 0-EN648, KDG4V3S2C15NMKUH760EN648 02-399557 N/A
KDG5V-10-33C550N310-X-T-VM-U-H1-11, KDG5V1033C550N310XTVMUH111 02-399316 N/A
KDG4V-3S-33C22A-H-M-U-GP5-60, KDG4V3S33C22AHMUGP560 02-399213 N/A
KDG5V-10-2C550N-X-T-H-M- U-H1-11 02-399053 N/A
KDG4V-3S-33C08A-M-KUP1-H5-60-EN692, KDG4V3S33C08AMKUP1H560EN692 02-398974 N/A
KDG4V-3S-33C22A-M-KUP1-H5-60-EN692, KDG4V3S33C22AMKUP1H560EN692 02-398973 N/A
KDG4V-3S-2C08N-VM-KU-H7- 60-EN648, KDG4V3S2C08NVMKUH760EN648 02-398397 N/A
KDG4V-3S-33C22N-M-KUP7-G 5-60-EN683, KDG4V3S33C22NMKUP7G560EN683 02-398337 N/A
KDG4V-3S-33C08N-VM-KU-H7 -60-EN648, KDG4V3S33C08NVMKUH760EN648 02-398227 N/A
KDG4V-3S-33C08A-VM-U-H5-60, KDG4V3S33C08AVMUH560 02-397861 KDG4V-3S-33C08A-M-U-H5-60
KDG4V-3S-33C22N-VM-KU-H7 -60-EN648, KDG4V3S33C22NVMKUH760EN648 02-397218 N/A
KDG4V-3S-33C22N-M-KUP7-G P5-60, KDG4V3S33C22NMKUP7GP560 02-397158 N/A
KDG5V-10-2C550N-EX-H-M-U, KDG5V102C550NEXHMUH111 02-396741 N/A
KDG5V-10-33C550N310-M-U- H1-11, KDG5V1033C550N310MUH111 02-396740 N/A
KDG5V-10-33C550N-EX-VM-U -H1-11 02-396736 N/A
KDG5V-10-33C550N-X-T-H-M-U-H1-11, KDG5V1033C550NXTHMUH111 02-396733 N/A
KDG5V-10-33C550N310-EX-VM-U-H1-11, KDG5V1033C550N310EXVMUH111 02-396732 N/A
KDG4V-3S-33C22N-M-U-G5-60, KDG4V3S33C22NMUG560 02-396163 N/A
KDG4V-3S-2C08N-H-M-U-G5- 60, KDG4V3S2C08NHMUG560 02-394815 N/A
KDG4V-3S-2C19N-VM-KU-H7- 60-EN648 02-394447 N/A
KDG4V-3S-2C19N-M-KUP1-H5 -60 02-394330 N/A
KDG4V-3S-33C27A-M-U-GP5- 60-EN645 02-393979 N/A
KDG4V-3S-2C19N-M-KUP6-HA 5-60-EN607, KDG4V3S2C19NMKUP6HA560EN607 02-391978 N/A
KDG4V-3S-33C08A-M-KU-HA5 -60-EN616, KDG4V3S33C08AMKUHA560EN616 02-391545 N/A
KDG4V-3S-33C08A-M-KU-G7- 60-EN596, KDG4V3S33C08AMKUG760EN596 02-364927 N/A
KDG4V-3S-2C19N-M-U1-GP5- 60, KDG4V3S2C19NMU1GP560 02-364494 N/A
KDG4V-3-2C28S-H-MU-H7-60 02-362115 N/A
KDG4V-3S-33C15A-H-M-U-HA 5-60-EN503, KDG4V3S33C15AHMUHA560EN503 02-360084 N/A
KDG5V-7-2C180N100-EX-M-U-H1-10, KDG5V72C180N100EXMUH110 02-359771 N/A
KDG5V 7 33C170N E H VM UH1 10, KDG5V733C170NEHVMUH110 02-359687 N/A
KDG5V 5 33C80N E H VM UH1 10, KDG5V533C80NEHVMUH110 02-359686 N/A
KDG5V-5-33C80N-X-H-M-U-HA1-10, KDG5V533C80NXHMUHA110 02-359643 N/A
KDG3V 7 2C180N100 10, KDG3V72C180N10010 02-359621 N/A
KDG5V 7 33C170N X T H VMU H1 10, KDG5V733C170NXTHVMUH110 02-359571 N/A
KDG4V3 2C20N10 M U H7 60, KDG4V32C20N10MUH760 02-359554 N/A
KDG5V 7 2C180N100 X M UH1 10, KDG5V72C180N100XMUH110 02-359464 N/A
KDG4V-5-2C50N-H-M-U-HA7-30 02-359312 N/A
KDG5V 7 2C180N X T M U H1 10, KDG5V72C180NXTMUH110 02-359262 N/A
KDG5V 7 2C180N X T H M UH1 10, KDG5V72C180NXTHMUH110 02-359252 N/A
KDG4V 5 2C50N H M U HA730, KDG4V52C50NHMUHA730 02-359132 N/A
KDG4V3 2C20N H M U HA7 60, KDG4V32C20NHMUHA760 02-359091 N/A
KDG5V 7 33C170N VM U H110, KDG5V733C170NVMUH110 02-359050 N/A
KDG4V3-33C03F-M-U-G7-60, KDG4V333C03FMUG760 02-359010 N/A
KDG5V 5 33C80N VM U H1 10, KDG5V533C80NVMUH110 02-358984 N/A
KDG5V 7 33C170N X T VM UH1 10, KDG5V733C170NXTVMUH110 02-358953 N/A
KDG5V 5 2C90N H M U H1 10, KDG5V52C90NHMUH110 02-358897 N/A
KDG4V3 2C28S M U G7 60, KDG4V32C28SMUG760 02-358824 N/A
KDG4V 3 33C20N M U G7 60, KDG4V333C20NMUG760 02-358823 N/A
KDG4V5 33C50N Z M U1 H730, KDG4V533C50NZMU1H730 02-358781 N/A
KDG5V 7 33C170N T M U HA1 10, KDG5V733C170NTMUHA110 02-358751 N/A
KDG4V 5 33C50N M U HA7 30, KDG4V533C50NMUHA730 02-358688 N/A
KDG4V-3-33C30X-VM-U-HA7-60, KDG4V333C30XVMUHA760 02-358414 N/A
KDG5V-5-33C60N40-X-VM-U-H1-10, KDG5V533C60N40XVMUH110 02-358195 N/A
KDG4V-3-33C30X-VM-U-HR7-60, KDG4V333C30XVMUHR760 02-358187 N/A
KDG5V 7 33C130N65 X VM UH1 10 02-358168 N/A
KDG5V 7 2C180N100 E T MU H1 1 0, KDG5V72C180N100ETMUH110 02-358129 N/A
KDG4V3 2C07N Z M U G7 60, KDG4V32C07NZMUG760 02-358072 N/A
KDG5V 7 33C170N E H M UH1 10, KDG5V733C170NEHMUH110 02-358044 N/A
KDG4V-3S-2C19N-M-U1-G5-6 0, KDG4V3S2C19NMU1G560 02-356879 N/A
KDG4V-3S-33C22N-M-U-H5-60, KDG4V3S33C22NMUH560 02-356806 N/A
KDG4V-3S-33C15A-H-M-U-GP 5-60-EN503, KDG4V3S33C15AHMUGP560EN503 02-355632 N/A
KDG4V 3S 2C15N M KUP5D2H5 60 EN70, KDG4V3S2C15NMKUP5D2H560EN70 02-353983 N/A
KDG5V-8-2C330N200-E-M-U-H1-20, KDG5V82C330N200EMUH120 02-353787 N/A
KDG5V-8-33C330N200-E-M-U-H1-20, KDG5V833C330N200EMUH120 02-353786 N/A
KDG5V-8-33C330N-T-M-U-HA1-20, KDG5V833C330NTMUHA120 02-353773 N/A
KDG5V-8-33C330N-T-H-VM-U-H1-20, KDG5V833C330NTHVMUH120 02-353772 N/A
KDG5V-8-2C330N-X-T-M-U-H1-20, KDG5V82C330NXTMUH120 02-353771 N/A
KDG5V-8-133C330N200-T-H-M-U-H1-20, KDG5V8133C330N200THMUH120 02-353769 N/A
KDG5V-8-2C330N-Z-M-U-H1-20, KDG5V82C330NZMUH120 02-353767 N/A
KDG5V-8-33C330N-X-M-U-H1-20, KDG5V833C330NXMUH120 02-353766 N/A
KDG5V-8-33C330N-X-H-M-U-H1-20, KDG5V833C330NXHMUH120 02-353765 N/A
KDG5V-8-33C330N-M-U-HA1-20, KDG5V833C330NMUHA120 02-353763 N/A
KDG5V-8-33C330N-M-U-H1-20, KDG5V833C330NMUH120 02-353762 N/A
KDG5V-8-33C330N-H-M-U-H1-20 02-353761 N/A
KDG5V-8-33C330N-EX-VM-U-H1-20, KDG5V833C330NEXVMUH120 02-353760 N/A
KDG5V-8-33C330N-EX-H-VM-U-H1-20, KDG5V833C330NEXHVMUH120 02-353759 N/A
KDG5V-8-33C330N-E-M-U-H1-20, KDG5V833C330NEMUH120 02-353758 N/A
KDG5V-8-33C330N-E-H-VM-U-H1-20, KDG5V833C330NEHVMUH120 02-353757 N/A
KDG5V-8-2C330N-X-H-M-U-H1-20, KDG5V82C330NXHMUH120 02-353756 N/A
KDG5V-8-2C330N-VM-U-H1-20, KDG5V82C330NVMUH120 02-353755 N/A
KDG5V-8-2C330N-T-M-U-H1-20, KDG5V82C330NTMUH120 02-353754 N/A
KDG5V-8-2C330N-M-U-HA1-20, KDG5V82C330NMUHA120 02-353753 N/A
KDG5V-8-2C330N-EX-H-M-U-H1-20, KDG5V82C330NEXHMUH120 02-353752 N/A
KDG5V-8-2C330N-E-M-U-H1-20, KDG5V82C330NEMUH120 02-353751 N/A
VALVE KDG5V-5-33C60N40-E-M-U-H1-10 02-353707 N/A
KDG5V-7-2C180N100-E-M-U-H1-10 02-353703 N/A
KDG5V-7-33C130N65-E-M-U-H1-10 02-353702 N/A
KDG4V3-2C31S-Z-M-U-HA7-60, KDG4V32C31SZMUHA760 02-353611 N/A
KDG4V3-2C31S-M-U-H7-60, KDG4V32C31SMUH760 02-353533 N/A
KDG4V-3-34C15N-Z-M-KUP6-G7-60-EN102, KDG4V334C15NZMKUP6G760EN102 02-353359 N/A
KDG4V3-2C07N-Z-M-P-H7-60-EN47 02-353217 N/A
KDG4V-3S-2C15N-M-KUP4-HA5-60, KDG4V3S2C15NMKUP4HA560 02-353010 N/A
KDG4V3-33C20N-H-M-U-H7-60-EN94, KDG4V333C20NHMUH760EN94 02-352927 N/A
KDG4V-5-2C50N-M-U-HA7-30, KDG4V52C50NMUHA730 02-352816 N/A
KDG5V-5-2C90N-T-VM-U-H1-10, KDG5V52C90NTVMUH110 02-352717 N/A
KDG4V-3-33C20N10-H-M-U-H7-60-EN94 02-352558 N/A
KDG4V3-33C13N-H-M-U-H7-60-EN94, KDG4V333C13NHMUH760EN94 02-352557 N/A
KDG4V3-33C07N-H-M-U-H7-60-EN94 02-352556 N/A
KDG4V3-33C27N-Z-M-U-HA7-60, KDG4V333C27NZMUHA760 02-352555 N/A
KDG4V-3-33C27N-Z-M-U-G7-60 02-352554 N/A
KDG4V3-33C27N-Z-M-U-H7-60, KDG4V333C27NZMUH760 02-352553 N/A
KDG4V3-33C27N-H-M-U-H7-60, KDG4V333C27NHMUH760 02-352552 N/A
KDG4V 3 2C13N H M U GP760, KDG4V32C13NHMUGP760 02-352400 N/A
KDG5V-5-33C80N-X-T-H-M-U-H1-10, KDG5V533C80NXTHMUH110 02-352344 N/A
KDG4V5 33C50N25 HMU H7 30EN137, KDG4V533C50N25HMUH730EN137 02-352325 N/A
KDG4V3 2C30N Z M U G7 60, KDG4V32C30NZMUG760 02-352316 N/A
KDG4V-5-33C30N-M-U-HA7-30, KDG4V533C30NMUHA730 02-352273 N/A
KDG4V-3-33C50X-H-M-U-H7-60, KDG4V333C50XHMUH760 02-352122 N/A
KDG5V-7-2C180N100-E-VM-U-H1-10 02-352110 N/A
KDG4V3 33C07N H M U H7 60 EN137, KDG4V333C07NHMUH760EN137 02-352043 N/A
KDG5V 7 2C180N EX M U H110, KDG5V72C180NEXMUH110 02-351960 N/A
KDG5V 5 33C80N EX M U H110, KDG5V533C80NEXMUH110 02-351959 N/A
KDG5V-5-2C70N45-X-H-M-U-H1-10, KDG5V52C70N45XHMUH110 02-351946 N/A
KDG5V-7-33C170N-EX-T-M-U-H1-10, KDG5V733C170NEXTMUH110 02-351819 N/A
KDG5V 7 33C170N T H M UH1 10, KDG5V733C170NTHMUH110 02-351681 N/A
KDG5V 5 33C80N X VM U H110, KDG5V533C80NXVMUH110 02-351092 N/A
KDG4V 5 2C70N Z VM U H730, KDG4V52C70NZVMUH730 02-351091 N/A
KDG4V 3 2C28S M U HA7 60, KDG4V32C28SMUHA760 02-351000 N/A
KDG4V3 2C13N Z M U G7 60, KDG4V32C13NZMUG760 02-350940 N/A
KDG4V3-33C20N-Z-M-U-G7-60, KDG4V333C20NZMUG760 02-350939 N/A
KDG4V 3S 2C08N M KUP4 HA5 60 E N82, KDG4V3S2C08NMKUP4HA560EN82 02-350929 N/A
KDG5V 7 2C180N EX VM U H1 10, KDG5V72C180NEXVMUH110 02-350752 N/A
KDG4V3-2C20N-M-U-GP7-60, KDG4V32C20NMUGP760 02-350575 N/A
KDG5V 5 33C80N X T M U H1 10, KDG5V533C80NXTMUH110 02-350445 N/A
KDG4V 3 33C30X H M U H760 EN4 7 02-350420 N/A
KDG5V 7 2C180N H M U HA110, KDG5V72C180NHMUHA110 02-350356 N/A
KDG5V 7 2C180N EX H VM UH1 10, KDG5V72C180NEXHVMUH110 02-350314 N/A
KDG4V3 33C20N H VM U H760, KDG4V333C20NHVMUH760 02-350313 N/A
KDG4V3 33C20N10 H VM U H7 60, KDG4V333C20N10HVMUH760 02-350312 N/A
KDG4V3 2C20N M U HA7 60, KDG4V32C20NMUHA760 02-350289 N/A
KDG5V 7 33C170N M U H1 10, KDG5V733C170NMUH110 02-350228 N/A
KDG5V-5-2C90N-T-M-U-HR1-10, KDG5V52C90NTMUHR110 02-350125 N/A
KDG5V 7 2C180N X VM U H110, KDG5V72C180NXVMUH110 02-350119 N/A
KDG4V3 33C10N20 Z M U H760, KDG4V333C10N20ZMUH760 02-350088 N/A
KDG5V 5 33C80N X T M U HA1 10, KDG5V533C80NXTMUHA110 02-350074 N/A
KDG5V 5 2C90N T H M U HA1 10, KDG5V52C90NTHMUHA110 02-350030 N/A
KDG4V-3S-33C15N-M-U-G5-6 0, KDG4V3S33C15NMUG560 02-343510 N/A
KDG4V 3S 2C15N M U G5 60, KDG4V3S2C15NMUG560 02-339801 N/A
KDG4V-3S-33C08A-M-KU-HA5 -60-EN502, KDG4V3S33C08AMKUHA560EN502 02-336402 N/A
KDG5V 5 2C90N X T VM U H1 10, KDG5V52C90NXTVMUH110 02-333827 N/A
KDG4V-3-33C30X-H-VM-U-HA7-60, KDG4V333C30XHVMUHA760 02-333775 N/A
KDG5V-7-33C130N65-EX-VM-U-H1-10, KDG5V733C130N65EXVMUH110 02-333692 N/A
KDG4V 5 2C50N H VM U H730, KDG4V52C50NHVMUH730 02-333644 N/A
KDG5V 5 33C80N H M U H110, KDG5V533C80NHMUH110 02-333631 N/A
KDG5V 7 33C170N EX H VMU H1 1 0, KDG5V733C170NEXHVMUH110 02-333561 N/A
KDG5V 7 2C180N T H M U HA1 10, KDG5V72C180NTHMUHA110 02-333552 N/A
KDG4V 3 33C20N VM U H7 60, KDG4V333C20NVMUH760 02-333521 N/A
KDG4V3 33C03F M U H7 60, KDG4V333C03FMUH760 02-333437 N/A
KDG5V-5-2C90N-M-U-HA1-10, KDG5V52C90NMUHA110 02-333306 N/A
KDG5V 7 2C180N100 X T MU H1 1 0, KDG5V72C180N100XTMUH110 02-333302 N/A
KDG4V3 2C03F H M U HA7 60, KDG4V32C03FHMUHA760 02-333190 N/A
KDG5V-7-33C170N-H-M-U-HA1-10, KDG5V733C170NHMUHA110 02-333087 N/A
KDG4V3-33C13N-H-M-U-G7-60, KDG4V333C13NHMUG760 02-333024 N/A
KDG4V3 33C20N H M U G7 60, KDG4V333C20NHMUG760 02-333023 N/A
KDG4V 3 2C07N H VM U H760, KDG4V32C07NHVMUH760 02-332985 N/A
KDG4V 3 33C20N Z M U GP760, KDG4V333C20NZMUGP760 02-332855 N/A
KDG5V 7 33C170N M U HR110, KDG5V733C170NMUHR110 02-332797 N/A
KDG4V3 2C28S Z VM U H7 60, KDG4V32C28SZVMUH760 02-332788 N/A
KDG4V3 33C03F VM U H7 60, KDG4V333C03FVMUH760 02-332766 N/A
KDG5V 7 33C170N T M U H110, KDG5V733C170NTMUH110 02-332758 N/A
KDG5V 5 33C80N E M U H110, KDG5V533C80NEMUH110 02-332675 N/A
KDG5V 7 33C170N X T M UH1 10, KDG5V733C170NXTMUH110 02-332469 N/A
KDG5V 7 2C180N X Z VM UH1 10, KDG5V72C180NXZVMUH110 02-332454 N/A
KDG4V 3S 2C15N M KUP4 G560 EN70 02-332416 N/A
KDG5V 5 2C90N E M U H1 10, KDG5V52C90NEMUH110 02-332255 N/A
KDG4V3-2C28S-M-U-GP7-60, KDG4V32C28SMUGP760 02-332139 N/A
KDG4V3 2C03F H M U H7 60, KDG4V32C03FHMUH760 02-332128 N/A
KDG5V 5 33C80N T M U H110, KDG5V533C80NTMUH110 02-332111 N/A
KDG4V3-2C28S H-M-U-G7-60, KDG4V32C28SHMUG760 02-332098 N/A
KDG5V 7 2C180N100 X T HM U H1 10 02-332084 N/A
KDG4V 3 33C20N Z M P H760 EN4 7 02-332082 N/A
KDG4V-5-33C50N25-H-VM-U-H7-30, KDG4V533C50N25HVMUH730 02-332081 N/A
KDG5V 7 2C180N100 X Z MU H1 1 0, KDG5V72C180N100XZMUH110 02-332044 N/A
KDG4V 5 2C30N Z VM U H730, KDG4V52C30NZVMUH730 02-332014 N/A
KDG4V 3S 2C19N VM U H5 60, KDG4V3S2C19NVMUH560 02-330493 N/A
KDG4V-3S-2C15N-M-U-GP5-6 0, KDG4V3S2C15NMUGP560 02-329307 N/A
KDG4V-3S-33C15A-M-KU-HA5 -60-EN495, KDG4V3S33C15AMKUHA560EN495 02-325874 N/A
KDG5V 5 33C80N X T H M UHA1 1 0, KDG5V533C80NXTHMUHA110 02-323899 N/A
KDG4V 5 2C50N Z M U1 H730, KDG4V52C50NZMU1H730 02-323887 N/A
KDG4V3 2C20N Z M U1 H7 60, KDG4V32C20NZMU1H760 02-323833 N/A
KDG5V 5 2C90N X T H M UH1 10, KDG5V52C90NXTHMUH110 02-323828 N/A
KDG5V 5 2C90N X T M U H110, KDG5V52C90NXTMUH110 02-323786 N/A
KDG5V 5 2C90N T M U H1 10, KDG5V52C90NTMUH110 02-323667 N/A
KDG4V3-2C30N-Z-M-U-HA7-60, KDG4V32C30NZMUHA760 02-323577 N/A
KDG5V 5 33C80N X H M U H1 10, KDG5V533C80NXHMUH110 02-323538 N/A
KDG5V 5 33C80N X T VM UH1 10, KDG5V533C80NXTVMUH110 02-323534 N/A
KDG5V 7 33C170N X H M UHA1 10, KDG5V733C170NXHMUHA110 02-323386 N/A
KDG5V 5 2C90N EX Z M U H1 10, KDG5V52C90NEXZMUH110 02-323372 N/A
KDG4V3 2C03F Z VM U H7 60, KDG4V32C03FZVMUH760 02-323371 N/A
KDG5V 5 33C80N T H M U H1 10, KDG5V533C80NTHMUH110 02-323325 N/A
KDG5V-7-2C180N100-T-M-U-H1-10, KDG5V72C180N100TMUH110 02-323261 N/A
KDG5V-7-2C180N-E-M-U-H1-10, KDG5V72C180NEMUH110 02-323228 N/A
KDG4V-5-2C70N-Z-M-U1-H7-30, KDG4V52C70NZMU1H730 02-323203 N/A
KDG5V 7 33C170N X M U H110, KDG5V733C170NXMUH110 02-323194 N/A
KDG5V 7 2C180N T H M U H1 10, KDG5V72C180NTHMUH110 02-323159 N/A
KDG4V-3-33C30X-Z-VM-U-H7, KDG4V333C30XZVMUH760 02-323141 N/A
KDG5V 7 2C180N100 X H MU H1 1 0, KDG5V72C180N100XHMUH110 02-323056 N/A
KDG5V 7 2C180N X M U H110, KDG5V72C180NXMUH110 02-323051 N/A
KDG5V 5 2C90N M U H1 10, KDG5V52C90NMUH110 02-323047 N/A
KDG4V-3S-33C04A-M-U-GP5-60, KDG4V3S33C04AMUGP560 02-321545 N/A
KDG4V3 33C07N M U G7 60, KDG4V333C07NMUG760 02-319545 N/A
KDG4V3 33C03F Z M U G7 60, KDG4V333C03FZMUG760 02-319544 N/A
KDG5V-5-2C90N-T-H-M-U-H1-10, KDG5V52C90NTHMUH110 02-319474 N/A
KDG4V 5 33C50N VM U H7 30, KDG4V533C50NVMUH730 02-319434 N/A
KDG4V3 2C28S Z M U G7 60, KDG4V32C28SZMUG760 02-319405 N/A
KDG4V3 2C03F M U H7 60, KDG4V32C03FMUH760 02-319371 N/A
KDG4V-3-33C30X-Z-M-P-H7-60-EN47 02-319336 N/A
KDG5V-7-2C180N100-M-U-H1-10, KDG5V72C180N100MUH110 02-319313 N/A
KDG5V-5-2C90N-T-M-U-HA1-10, KDG5V52C90NTMUHA110 02-319277 N/A
KDG4V-3-33C30X-M-U-G7-60, KDG4V333C30XMUG760 02-319164 N/A
KDG4V3 2C07N M U H7 60, KDG4V32C07NMUH760 02-318526 N/A
KDG4V3 2C20N M U G7 60, KDG4V32C20NMUG760 02-318525 N/A
KDG5V 5 2C90N X M U H1 10, KDG5V52C90NXMUH110 02-318522 N/A
KDG5V 7 33C170N X VM U H1 10, KDG5V733C170NXVMUH110 02-318387 N/A
KDG4V 5 33C50N25 M U H730, KDG4V533C50N25MUH730 02-318378 N/A
KDG4V3 33C20N10 M U H7 60, KDG4V333C20N10MUH760 02-318377 N/A
KDG4V3 33C13N M U H7 60, KDG4V333C13NMUH760 02-318376 N/A
KDG4V3-33C07N-M-U-H7-60, KDG4V333C07NMUH760 02-318375 N/A
KDG4V3 2C20N10 Z M U H760, KDG4V32C20N10ZMUH760 02-318364 N/A
KDG4V3 2C20N H M U G7 60, KDG4V32C20NHMUG760 02-318320 N/A
KDG4V3 2C13N VM U H7 60, KDG4V32C13NVMUH760 02-318305 N/A
KDG5V 7 33C170N E M U H110, KDG5V733C170NEMUH110 02-318243 N/A
KDG5V 5 33C80N X M U H110, KDG5V533C80NXMUH110 02-318242 N/A
KDG5V5 33C80N M U H1 10, KDG5V533C80NMUH110 02-318228 N/A
KDG5V 7 2C180N M U H1 10, KDG5V72C180NMUH110 02-318206 N/A
KDG5V 7 2C180N T M U H110, KDG5V72C180NTMUH110 02-318195 N/A
KDG5V 7 2C180N X H VM UH1 10, KDG5V72C180NXHVMUH110 02-318159 N/A
KDG4V-3S-2C19N-H-M-U-H5-60, KDG4V3S2C19NHMUH560 02-317856 N/A
KDG4V-3S-2C08N-M-U1-H5-6 0, KDG4V3S2C08NMU1H560 02-317509 N/A
KDG4V-3S-33C15A-H-M-U-HA 5-60 02-317427 N/A
KDG5V 7 2C180N E H M U H1 10, KDG5V72C180NEHMUH110 02-312433 N/A
KDG4V3 2C03F H VM U H7 60, KDG4V32C03FHVMUH760 02-312431 N/A
KDG5V 5 2C90N E H M U H110, KDG5V52C90NEHMUH110 02-312405 N/A
KDG5V 5 33C80N E H M U H1 10, KDG5V533C80NEHMUH110 02-312404 N/A
KDG4V3 33C03F Z M P H7 60 EN47 02-312358 N/A
KDG4V3 2C30N Z M U H7 60, KDG4V32C30NZMUH760 02-312331 N/A
KDG4V 5 2C50N H M U H7 30, KDG4V52C50NHMUH730 02-312306 N/A
KDG4V-3-33C30X-VM-U1-H7-60, KDG4V333C30XVMU1H760 02-312137 N/A
KDG4V 3 33C13N M P H7 60EN47 02-312096 N/A
KDG5V 7 33C85N X T H M UHA1 1 0, KDG5V733C85NXTHMUHA110 02-312025 N/A
KDG4V 3 33C30X M U HR7 60, KDG4V333C30XMUHR760 02-311994 N/A
KDG4V3 33C03F H M U H7 60, KDG4V333C03FHMUH760 02-311985 N/A
KDG4V 3 33C20N M U HA7 60, KDG4V333C20NMUHA760 02-311860 N/A
KDG4V 5 2C65S VM U H6 30, KDG4V52C65SVMUH630 02-311679 N/A
KDG5V-7-2C180N-VM-U-H1-10, KDG5V72C180NVMUH110 02-311572 N/A
KDG4V-3-2C28S-Z-VM-U-GP7-60, KDG4V32C28SZVMUGP760 02-311538 N/A
KDG4V 3 2C07N H M U H7 60, KDG4V32C07NHMUH760 02-311296 N/A
KDG5V 7 2C180N X H M U HA1 10, KDG5V72C180NXHMUHA110 02-311289 N/A
KDG4V-5-2C50N25-M-U-H7-30, KDG4V52C50N25MUH730 02-311245 N/A
KDG4V 5 2C50N Z M U HA730, KDG4V52C50NZMUHA730 02-311240 N/A
KDG4V 5 2C30N Z M U HA730, KDG4V52C30NZMUHA730 02-311239 N/A
KDG4V 3 33C20N Z M U HA760, KDG4V333C20NZMUHA760 02-311238 N/A
KDG4V 3 33C13N Z M U HA760, KDG4V333C13NZMUHA760 02-311237 N/A
KDG4V-3-33C07N-Z-M-U-HA7-60, KDG4V333C07NZMUHA760 02-311236 N/A
KDG4V 3 2C07N Z M U HA760, KDG4V32C07NZMUHA760 02-311234 N/A
KDG4V-3-33C30X-VM-U-H7-60 02-311229-XD N/A
KDG4V 3 33C30X VM U H7 60, KDG4V333C30XVMUH760 02-311229 N/A
KDG5V 7 33C170N EX VM UH1 10, KDG5V733C170NEXVMUH110 02-311228 N/A
KDG4V5-2C65S-Z-M-U-HA6-30, KDG4V52C65SZMUHA630 02-311147 N/A
KDG5V 7 33C170N X H VM UH1 10, KDG5V733C170NXHVMUH110 02-311036 N/A
KDG4V-3-33C30X-H-VM-U-H7-60 02-311035-XD N/A
KDG4V 3 33C30X H VM U H760, KDG4V333C30XHVMUH760 02-311035 N/A
KDG4V3 33C13N H VM U H760, KDG4V333C13NHVMUH760 02-311032 N/A
KDG4V3 33C03F H M U HA760, KDG4V333C03FHMUHA760 02-310927 N/A
KDG4V 3 33C30X H M U HA760, KDG4V333C30XHMUHA760 02-310920 N/A
KDG4V-3-33C30X-Z-M-U-GP7-60, KDG4V333C30XZMUGP760 02-310883 N/A
KDG4V3 33C07N H MU H7 60, KDG4V333C07NHMUH760 02-310855 N/A
KDG4V 5 33C30N H M U H7 30, KDG4V533C30NHMUH730 02-310763 N/A
KDG4V 5 2C30N H M U H7 30, KDG4V52C30NHMUH730 02-310762 N/A
KDG4V 3 2C28S MU H7 60, KDG4V32C28SMUH760 02-310761 N/A
KDG4V3-2C13N-Z-M-U1-H7-60, KDG4V32C13NZMU1H760 02-310607 N/A
KDG4V-3S-33C15A-H-M-U-H5 -60 02-310277 N/A
KDG4V-3S-2C15N-M-U-H5-60, KDG4V3S2C15NMUH560 02-310275 N/A
KDG4V-3S-33C22A-H-M-U-H5-60, KDG4V3S33C22AHMUH560 02-309901 N/A
KDG4V 3 2C13N Z MU HA7 60, KDG4V32C13NZMUHA760 02-157814 N/A
KDG5V 7 33C170N X H MU H1 10, KDG5V733C170NXHMUH110 02-157777 N/A
KDG4V 3 2C20N Z MU HA7 60, KDG4V32C20NZMUHA760 02-157769 N/A
KDG5V 5 2C90N E Z MU H110, KDG5V52C90NEZMUH110 02-157740 N/A
KDG5V 5 33C80N E Z MU H110, KDG5V533C80NEZMUH110 02-157738 N/A
KDG5V 7 2C180N E Z MU H110, KDG5V72C180NEZMUH110 02-157737 N/A
KDG5V 7 33C170N E Z MU H1 10, KDG5V733C170NEZMUH110 02-157736 N/A
KDG4V 3 2C20N Z VM U H760, KDG4V32C20NZVMUH760 02-157724 N/A
KDG5V 5 33C80N X VM U1 H1 10, KDG5V533C80NXVMU1H110 02-157644 N/A
KDG5V5 2C90N Z MU H1 10, KDG5V52C90NZMUH110 02-157629 N/A
KDG4V-3-33C30X-Z-M-U-H7-60 02-157628-XD N/A
KDG4V-3-33C30X-Z-M-U-H7-60, KDG4V333C30XZMUH760 02-157628 N/A
KDG5V 5 33C80N M U HA1 10, KDG5V533C80NMUHA110 02-157575 N/A
KDG4V-3-33C30X-M-U-H7-60 02-157450-XD N/A
KDG4V 3 33C30X M U H7 60, KDG4V333C30XMUH760 02-157450 N/A
KDG3V 7 33C170N E 10 EN55, KDG3V733C170NE10EN55 02-157435 N/A
KDG3V 5 33C80N E 10 EN55, KDG3V533C80NE10EN55 02-157433 N/A
KDG3V 5 2C70N45 E 10 EN55, KDG3V52C70N45E10EN55 02-157432 N/A
KDG4V 5 33C50N M U H7 30, KDG4V533C50NMUH730 02-157268 N/A
KDG4V 5 33C30N M U H7 30, KDG4V533C30NMUH730 02-157267 N/A
KDG4V-5-2C65S-M-U-H6-30, KDG4V52C65SMUH630 02-157266 KDG4V-5 2C65S M U H6 30
KDG4V 5 2C50N M U H7 30, KDG4V52C50NMUH730 02-157265 N/A
KDG4V 5 2C30N M U H7 30, KDG4V52C30NMUH730 02-157264 N/A
KDG4V 3 2C20N Z MU G7 60, KDG4V32C20NZMUG760 02-157208 N/A
KDG3V 7 33C170N E 10, KDG3V733C170NE10 02-157198 N/A
KDG3V 7 2C180N E 10, KDG3V72C180NE10 02-157197 N/A
KDG3V 5 33C80N E 10, KDG3V533C80NE10 02-157194 N/A
KDG3V 5 2C90N E 10, KDG3V52C90NE10 02-157193 N/A
KDG3V-5-2C90N-E-10-EN39, KDG3V52C90NE10EN39 02-157191 N/A
KDG3V 7 2C180N E 10 EN55, KDG3V72C180NE10EN55 02-157189 N/A
KDG3V 5 2C90N E 10 EN55, KDG3V52C90NE10EN55 02-157188 N/A
KDG4V 3 2C13N MU H7 60, KDG4V32C13NMUH760 02-157183 N/A
KDG4V 3 33C30X M U HA7 60, KDG4V333C30XMUHA760 02-157027 N/A
KDG4V 5 33C30N H MU HA730, KDG4V533C30NHMUHA730 02-157009 N/A
KDG4V 5 33C50N H MU HA730, KDG4V533C50NHMUHA730 02-157008 N/A
KDG4V3 2C13N Z VM U H7 60, KDG4V32C13NZVMUH760 02-156943 N/A
KDG4V 3 2C28S Z M U HA760, KDG4V32C28SZMUHA760 02-156477 N/A
KDG4V 3 33C20N Z VM U H760, KDG4V333C20NZVMUH760 02-156215 N/A
KDG4V-3-33C20N-M-U-H7-60, KDG4V333C20NMUH760 02-156062 N/A
KDG5V 7 33C170N H MU H110, KDG5V733C170NHMUH110 02-156055 N/A
KDG4V-3S-2C19N-M-U-HA5-60, KDG4V3S2C19NMUHA560 02-155946 N/A
KDG4V-3S-2C19N-M-U-GP5-6 0, KDG4V3S2C19NMUGP560 02-155925 N/A
KDG4V 3S 2C08N M U GP5 60, KDG4V3S2C08NMUGP560 02-155924 N/A
KDG4V-3S-2C08N-M-U-G5-60, KDG4V3S2C08NMUG560 02-155923 N/A
KDG4V-3S-33C15A-M-U-G5-60, KDG4V3S33C15AMUG560 02-155391 N/A
KDG3V-3-33C34A-S-60, KDG3V333C34AS60 02-155234 N/A
KDG4V 3S 2C08N M U HA5 60, KDG4V3S2C08NMUHA560 02-154918 N/A
KDG3V-5-33C95A-S-10, KDG3V533C95AS10 02-154404 N/A
KDG3V 5 2C95A S 10, KDG3V52C95AS10 02-154403 N/A
KDG3V-5-33C63A-S-10, KDG3V533C63AS10 02-154402 N/A
KDG4V-3S-33C08A-H-M-U-H5-60, KDG4V3S33C08AHMUH560 02-154278 N/A
KDG4V-3S-2C08N-H-M-U-H5- 60, KDG4V3S2C08NHMUH560 02-154277 N/A
KDG3V-3-2C34A-S-60, KDG3V32C34AS60 02-153999 N/A
KDG3V-3-2C23A-S-60, KDG3V32C23AS60 02-153998 N/A
KDG4V-3S-2C19N-M-U-G5-60, KDG4V3S2C19NMUG560 02-149710 N/A
KDG4V 3S 2C19N M U H5 60, KDG4V3S2C19NMUH560 02-149542 N/A
KDG4V-3S-2C15N-M-U1-H5-6 0, KDG4V3S2C15NMU1H560 02-149022 N/A
KDG4V-3S-2C15N-M-U-HA5-6 0, KDG4V3S2C15NMUHA560 02-148890 N/A
KDG4V 3S 2C19N M U1 H5 60, KDG4V3S2C19NMU1H560 02-148610 N/A
KDG4V-3S-2C19S-M-U1-H5-6 0, KDG4V3S2C19SMU1H560 02-148494 N/A
SP KDG4V-3S-33C22A-M-U GP5-60 02-148365SP N/A
KDG4V-3S-33C22A-M-U-GP5-60, KDG4V3S33C22AMUGP56 02-148365 N/A
KDG4V-3S-33C22A-M-U-G5-6 0, KDG4V3S33C22AMUG560 02-148364 N/A
KDG4V-3S-33C22A-H-M-U-G5 -60 02-148363 N/A
KDG4V-3S-2C15N-VM-U-H5-6 0, KDG4V3S2C15NVMUH560 02-148351 N/A
KDG4V-3S-2C19N-H-M-U-G5-60, KDG4V3S2C19NHMUG560 02-148055 N/A
KDG4V-3S-33C22A-M-U1-G5- 60, KDG4V3S33C22AMU1G560 02-147980 N/A
KDG5V 5 33C80N EX H MU H1 10, KDG5V533C80NEXHMUH110 02-147699 N/A
KDG5V7 2C180N100 EX H MUH1 10, KDG5V72C180N100EXHMUH110 02-147696 N/A
KDG5V 7 33C170N EX H MUH1 10, KDG5V733C170NEXHMUH110 02-147695 N/A
KDG4V 3 2C20N MU H7 60, KDG4V32C20NMUH760 02-147675 N/A
KDG4V 5 33C50N H MU H7 30, KDG4V533C50NHMUH730 02-147663 N/A
KDG4V 3 33C13N H MU HA760, KDG4V333C13NHMUHA760 02-147654 N/A
KDG4V 3 33C07N H MU HA760, KDG4V333C07NHMUHA760 02-147653 N/A
KDG4V 3 2C28S H V MU H760, KDG4V32C28SHVMUH760 02-147652 N/A
KDG4V5 33C50N Z VM U1 H730, KDG4V533C50NZVMU1H730 02-147634 N/A
KDG4V 3 33C20N H MU H7 60, KDG4V333C20NHMUH760 02-147633 N/A
KDG4V 3 2C13N H MU H7 60, KDG4V32C13NHMUH760 02-147623 N/A
KDG4V 3 33C13N H MU H7 60, KDG4V333C13NHMUH760 02-147601 N/A
KDG4V 3 2C20N H MU H7 60, KDG4V32C20NHMUH760 02-147600 N/A
KDG4V 3 33C20N H MU HA760, KDG4V333C20NHMUHA760 02-147599 N/A
KDG4V 3 2C28S H MU H7 60, KDG4V32C28SHMUH760 02-147588 N/A
KDG4V-3-33C13N-Z-VM-U-H7-60, KDG4V333C13NZVMUH760 02-147539 N/A
KDG5V 7 2C180N X H MU H110, KDG5V72C180NXHMUH110 02-147391 N/A
KDG5V 5 2C90N EX H MU H110, KDG5V52C90NEXHMUH110 02-147347 N/A
KDG4V-3-33C30X-H-M-U-G7-60, KDG4V333C30XHMUG760 02-147289 Alternate part number: 3402000085
KDG5V 7 2C180N EX H MU H1 10, KDG5V72C180NEXHMUH110 02-147284 N/A
KDG4V 5 2C65S Z MU1 H6 30, KDG4V52C65SZMU1H630 02-147247 N/A
KDG4V 5 2C65S H MU H6 30, KDG4V52C65SHMUH630 02-147171 N/A
KDG4V-3-33C30X-H-M-U-H7-60 02-147108-XD N/A
KDG4V 3 33C30X H MU H7 60, KDG4V333C30XHMUH760 02-147108 N/A
KDG4V-3-33C30X-H-M-U1-H7-60, KDG4V333C30XHMU1H760 02-147064 N/A
KDG4V 3 33C13N Z M U H760, KDG4V333C13NZMUH760 02-146928 N/A
KDG4V 3 33C07N Z M U H760, KDG4V333C07NZMUH760 02-146927 N/A
KDG4V 3 33C03F Z M U H760, KDG4V333C03FZMUH760 02-146926 N/A
KDG4V 3 2C28S Z M U H7 60, KDG4V32C28SZMUH760 02-146925 N/A
KDG4V 3 2C03F Z MU H7 60, KDG4V32C03FZMUH760 02-146924 N/A
KDG4V 5 33C30N Z M U1 H730, KDG4V533C30NZMU1H730 02-146910 N/A
KDG4V 3 2C07N Z M U H7 60, KDG4V32C07NZMUH760 02-146723 N/A
KDG4V 3 2C13N Z M U H7 60, KDG4V32C13NZMUH760 02-146722 N/A
KDG4V 3 33C20N Z M U H760, KDG4V333C20NZMUH760 02-146721 N/A
KDG4V 3 2C20N Z M U H7 60, KDG4V32C20NZMUH760 02-146720 N/A
KDG4V-3S-2C19S-M-U-GP5-6 0, KDG4V3S2C19SMUGP560 02-145688 N/A
KDG4V-3S-33C15A-M-U-GP5- 60 02-145354 N/A
KDG4V 3S 2C08S M U H5 60, KDG4V3S2C08SMUH560 02-144093 N/A
KDG4V-3S-33C08A-M-U-HA5-60, KDG4V3S33C08AMUHA560 02-141687 N/A
KDG4V-3S-33C22A-M-U-H5-60, KDG4V3S33C22AMUH560 02-140085 N/A
KDG4V-3S-33C08A-M-U-G5-60, KDG4V3S33C08AMUG560 02-140083 N/A
KDG4V 5 33C50N25 Z M U H7 30, KDG4V533C50N25ZMUH730 02-138968 N/A
KDG4V 5 2C50N25 Z MU H730, KDG4V52C50N25ZMUH730 02-138967 N/A
KDG4V-3S-2C08S-M-U-HA5-6 0 02-135192 N/A
KDG4V 3S 2C19S M U G5 60, KDG4V3S2C19SMUG560 02-135179 N/A
KDG4V 3S 2C19S M U H5 60, KDG4V3S2C19SMUH560 02-135165 N/A
KDG4V 3S 2C15S M U H5 60, KDG4V3S2C15SMUH560 02-135164 N/A
KDG4V 3S 2C08N M U H5 60, KDG4V3S2C08NMUH560 02-135162 N/A
KDG4V-3S-33C15A-M-U-H5-60, KDG4V3S33C15AMUH560 02-135161 N/A
KDG4V-3S-2C15S-M-FW-H5-6 0, KDG4V3S2C15SMFWH560 02-135153 N/A
KDG4V 3S 2C08S M U G5 60, KDG4V3S2C08SMUG560 02-135151 N/A
KDG4V-3S-33C08A-M-U-H5-60, KDG4V3S33C08AMUH560 02-135150 N/A
KDG5V-7-33C130N65-X-T-M-U-H1-10 02-114987 N/A
KDG4V 5 2C70N Z M U H7 30, KDG4V52C70NZMUH730 02-110489 N/A
VALVE KDG4V-5-33C50N-Z-M-U-G7-30, KDG4V533C50NZMUG730 02-108635 N/A



Avaliações

Não há avaliações ainda.

Seja o primeiro a avaliar “Válvulas proporcionais sem realimentação KDG4V-3M/3 Vickers”

O seu endereço de e-mail não será publicado. Campos obrigatórios são marcados com *

Produtos relacionados

Carrinho de compras
