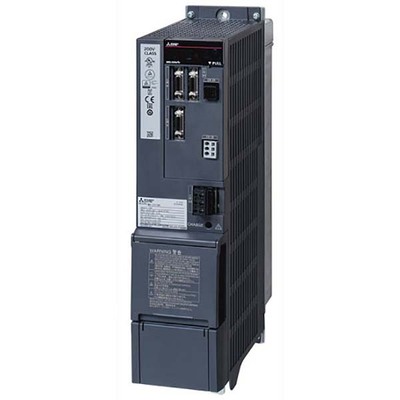

Esta unidade é compatível com a série MELSERVO J4 da Mitsubishi Electric e é equivalente ao modelo MRCV18K4.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Regeneration unit |
| Product series / family name | MELSERVO J4 series |
| Functions | Pwr. regeneration converter unit |
| Design | forced ventilation cooling |
| Supply voltage (AC) | 380Vac-480Vac (400V class; 400Vac / 415Vac / 440Vac) |
| Type of network | 3-phase input (3P) |
| Rated current | 38A |
| Rated active power (kW) | 18kW |
| Protection functions | Regenerative overvoltage shut-off overload shut-off (electronic thermal) Main circuit device overheat error protection regenerative fault protection Undervoltage protection MC drive circuit error protection Open-phase detection Inrush current suppression circuit error protection Cooling fan error protection |
| Degree of protection | IP20 |
| Dimensions | H380mm x W90mm x D200mm |
| Net Height (mm) | 380 mm |
| Net Width (mm) | 90 mm |
| Net Depth (mm) | 200 mm |
| Ambient air temperature for operation | 0…+55 °C |
| Ambient air temperature for storage | -20°C…+65 °C |
| Power consumption | (auxiliary power consumption) 30 W |
| Order code / Manufacturer SKU | MR-CV18K4 |
| Manufacturer product status | Commercialized |
| Equivalent to | MRCV18K4 |
