Descubra o servoacionamento Mitsubishi Electric MR-JET-20G (SKU: MR-JET-20G), com 200W, 200-240V, CC-Link, freio dinâmico e resistor regenerativo.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo drive |
| Product series / family name | MELSERVO JET series |
| Sub-range name | MR-JE series |
| Functions | AC motion servo drive / amplifier sine wave PWM control/current control method point table method safety parameter setting advanced vibration suppression control II adaptive filter II robust filter quick tuning auto tuning one-touch tuning tough drive function drive recorder function machine diagnosis function pwr. monitoring function lost motion compensation super trace control continuous operation to torque control mode |
| Design | built-in dynamic brake built-in regenerative resistor natural cooling |
| Supply voltage (AC) | 200Vac-240Vac (200V class; 220Vac / 230Vac) |
| Type of network | Single-phase input (2P) or 3-phase input (3P) |
| Rated current | 1.8A |
| Rated active power (kW) | 200W / 0.2kW |
| Protection functions | overcurrent shut-off regenerative overvoltage shut-off overload shut-off (electronic thermal) servo motor overheat protection encoder fault protection regenerative fault protection undervoltage protection instantaneous power failure protection overspeed protection excessive error protection magnetic pole detection protection linear servo control fault protection |
| Communication protocol | CC-Link |
| Digital inputs | 1 x digital input (24Vdc; sink/source) (EM2) 1 x digital input (24Vdc; sink/source) (LSP) 1 x digital input (24Vdc; sink/source) (LSN) |
| Digital outputs | 1 x digital output (rly. contact type) (ALM) 1 x digital output (rly. contact type) (INP) 1 x digital output (rly. contact type) (MBR) |
| Degree of protection | IP20 |

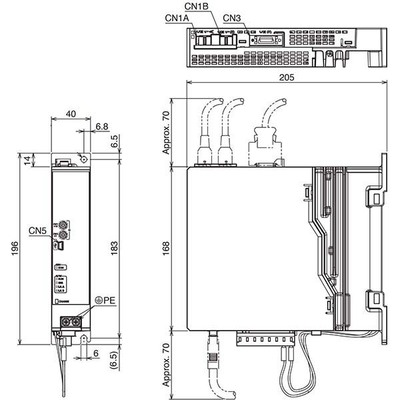

| Dimensions | H196mm x W40mm x D205mm |
| Net Height (mm) | 196 mm |
| Net Width (mm) | 40 mm |
| Net Depth (mm) | 205 mm |
| Ambient air temperature for operation | 0…+55 °C |
| Ambient air temperature for storage | -25°C…+70 °C |
| Current consumption | 1.5A input |
| Order code / Manufacturer SKU | MR-JET-20G |
| Manufacturer product status | Commercialized |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC EN61800-5-1 IEC61508-5-2 EN63000 UL61800-5-1 CSA GB KN61800-3 |
