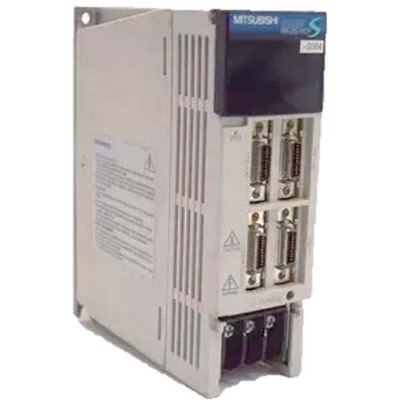

Servoacionamento AC MELSERVO J2S 600W com freio dinâmico e função de posicionamento CC-Link. O servoacionamento Mitsubishi Electric MR-J2S-60CP-S084 oferece alta performance e comunicação avançada.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo drive |
| Product series / family name | MELSERVO J2S series |
| Sub-range name | MR-J2 series |
| Functions | AC motion servo drive / amplifier built-in positioning function sine wave PWM control/current control method |
| Design | built-in dynamic brake built-in position function natural cooling |
| Supply voltage (AC) | 200Vac-230Vac (200V class; 220Vac / 230Vac) |
| Type of network | Single-phase input (2P) or 3-phase input (3P) |
| Rated active power (kW) | 600W / 0.6kW |
| Protection functions | overcurrent shut-off regeneration overvoltage shut-off overload shut-off (electronic thermal) servo motor overheat protection encoder fault protection regeneration fault protection undervoltage/sudden power outage protection overspeed protection excessive error protection |
| Communication protocol | CC-Link |
| Digital inputs | 1 x digital input (24Vdc; sink/source) (EMG) 1 x digital input (24Vdc; sink/source) (LSP) 1 x digital input (24Vdc; sink/source) (LSN) 1 x digital input (24Vdc; sink/source) (DOG) 4 x digital inputs (24Vdc; sink/source) (programmable) |
| Digital outputs | 1 x digital output (rly. contact type) (ALM) 1 x digital output (rly. contact type) (ZP) 1 x digital output (rly. contact type) (CPO) 1 x digital output (rly. contact type) (MEND) 1 x digital output (rly. contact type) (RD) 1 x digital output (rly. contact type) (programmable) |
| Dimensions | H168mm x W70mm x D135mm |
| Net Height (mm) | 168 mm |
| Net Width (mm) | 70 mm |
| Net Depth (mm) | 135 mm |
| Ambient air temperature for operation | 0…+55 °C |
| Ambient air temperature for storage | -20°C…+65 °C |
| Technical compatibility with | HC-SFS series HC-LFS series |
| Order code / Manufacturer SKU | MR-J2S-60CP-S084 |
| Manufacturer product status | Discontinued |
