Descubra o Servo Motor Geared AC MELSERVO J4 Mitsubishi Electric HG-SR7024G1 1/43: 7kW de potência, 400V, feedback de 22 bits e torque de 33,4Nm. Ideal para aplicações de precisão.
Especificações

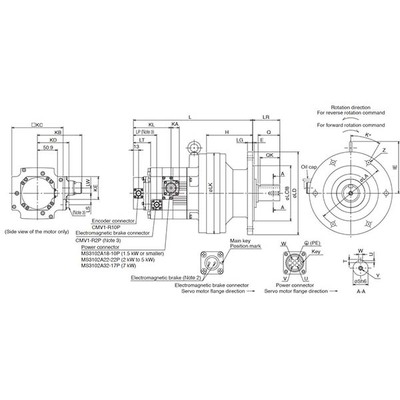

| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | HG-SR series |
| Functions | AC geared rotary servo motor / gearmotor |
| Design | straight shaft built-in absolute feedback encod. (22-bit) 1/43 high-precision gearhead (flange output) medium inertia / medium power capacity natural cooling |
| Supply voltage (AC) | 400Vac class |
| Rated current | 13A |
| Rated active power (kW) | 7000W / 7kW |
| Rotational speed | 2000rpm 3000rpm (maximum) |
| Torque | 33.4Nm nominal |
| Maximum torque | 100Nm |
| Moment of inertia | 0.0267kg.m2 (267kg.cm2) |
| Connection type | 2 x MS-type connectors |
| Efficiency | 85-94% |
| Mounting mode | 490x490mm flange mounting (grbx. output) |
| Resolution | 22-bit (equivalent to 4194304ppr) feedback |
| Degree of protection | IP44 |
| Dimensions | H359.1mm x W420mm x D747mm |
| Net Height (mm) | 359.1 mm |
| Net Width (mm) | 420 mm |
| Net Depth (mm) | 747 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum radial load | 2058 N |
| Maximum axial load | 980 N |
| Maximum current | 59 A |
| Order code / Manufacturer SKU | HG-SR7024G1 1/43 |
| Manufacturer product status | Commercialized |
| Equivalent to | HGSR7024G1143 |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC EN61800-3 EN60034-1 EN62061 SILCL3 EN50581 UL1004-1 UL1004-6 CSA KC EAC |
| Gear ratio | 1/43 (gearhead) |
| Backlash | 40arcminutes (0.67°) maximum |
| Recommended accessories | for standard 1-axis use amplifiers – MR-J4-700GF4 – MR-J4-700GF4-RJ – MR-J4-700B4 – MR-J4-700B4-RJ – MR-J4-DU900B4 – MR-J4-DU900B4-RJ – MR-J4-700A4 – MR-J4-700A4-RJ Use amplifier motor cables as follows – Encoder cable for HG-SR and HG-SR (direct connection type) — Standard bending life –> 2m ( MR-J3ENSCBL2M-L ) – Encoder cable for HG-SR and HG-SR (direct connection type) — Standard bending life –> 2m ( MR-J3ENSCBL2M-L ) –> 5m ( MR-J3ENSCBL5M-L ) –> 10m ( MR-J3ENSCBL10M-L ) –> 20m ( MR-J3ENSCBL20M-L ) –> 30m ( MR-J3ENSCBL30M-L ) — Long bending life –> 2m ( MR-J3ENSCBL2M-H ) –> 5m ( MR-J3ENSCBL5M-H ) –> 10m ( MR-J3ENSCBL10M-H ) –> 15m ( MR-J3ENSCBL15M-H ) –> 17m ( MR-J3ENSCBL17M-H ) –> 20m ( MR-J3ENSCBL20M-H ) –> 30m ( MR-J3ENSCBL30M-H ) –> 40m ( MR-J3ENSCBL40M-H ) –> 50m ( MR-J3ENSCBL50M-H or MR-J3ENS4CBL50M-H ) –> 60m ( MR-J3ENSCBL60M-H or MR-J3ENS4CBL60M-H ) –> 80m ( MR-J3ENS4CBL80M-H ) –> 90m ( MR-J3ENS4CBL90M-H ) –> 100m ( MR-J3ENS4CBL100M-H ) – Power supply cable cables (straight type connector) — Standard bending life –> 2m ( MR-J3P7-2M ) –> 5m ( MR-J3P7-5M ) –> 7m ( MR-J3P7-7M ) –> 10m ( MR-J3P7-10M ) –> 15m ( MR-J3P7-15M ) –> 20m ( MR-J3P7-20M ) –> 25m ( MR-J3P7-25M ) –> 30m ( MR-J3P7-30M ) –> 50m ( MR-J3P7-50M ) – Power supply cable; Shielded type cables (straight type connector) — Long bending life –> 2m ( MR-J3PWS7-2M ) –> 5m ( MR-J3PWS7-5M ) –> 10m ( MR-J3PWS7-10M ) –> 15m ( MR-J3PWS7-15M ) –> 20m ( MR-J3PWS7-20M ) –> 25m ( MR-J3PWS7-25M ) –> 30m ( MR-J3PWS7-30M ) –> 40m ( MR-J3PWS7-40M ) –> 50m ( MR-J3PWS7-50M ) – Power supply cable for HG-SR/HG-JR/HG-UR series to MR-J4W2/MR-J4W3 series amplifier — Standard bending life –> 2m ( SC-EPWS2CBL2M-L ) –> 5m ( SC-EPWS2CBL5M-L ) –> 10m ( SC-EPWS2CBL10M-L ) –> 20m ( SC-EPWS2CBL20M-L ) –> 30m ( SC-EPWS2CBL30M-L ) — Long bending life –> 2m ( SC-EPWS2CBL2M-H ) –> 5m ( SC-EPWS2CBL5M-H ) –> 10m ( SC-EPWS2CBL10M-H ) –> 20m ( SC-EPWS2CBL20M-H ) –> 30m ( SC-EPWS2CBL30M-H ) |
