Especificações
| Parâmetro | Valor |
|---|---|

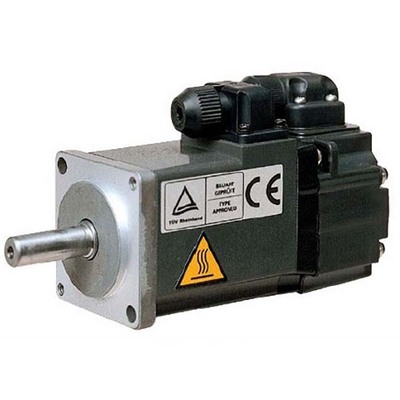

| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO JN series |
| Sub-range name | HF-KP series |
| Functions | AC geared rotary servo motor / gearmotor |
| Design | straight shaft built-in e/m brake built-in absolute feedback encod. (18-bit) 1/21 high-precision gearhead (shaft output) low inertia / small power capacity natural cooling |
| Supply voltage (AC) | 200Vac class |
| Rated current | 2.7A |
| Rated active power (kW) | 400W / 0.4kW |
| Rotational speed | 3000rpm 4500rpm (maximum) |
| Torque | 1.3Nm nominal |
| Maximum torque | 3.8Nm |
| Moment of inertia | 0.0001kg.m2 (1kg.cm2) |
| Mounting mode | 90x90mm flange mounting |
| Degree of protection | IP44 |
| Dimensions | H92.1mm x W90mm x D289mm |
| Net Height (mm) | 92.1 mm |
| Net Width (mm) | 90 mm |
| Net Depth (mm) | 289 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 8.1 A |
| Order code / Manufacturer SKU | HF-KP43BG7 1/21 |
| Manufacturer product status | Commercialized |
| Gear ratio | 1/21 (gearhead) |
