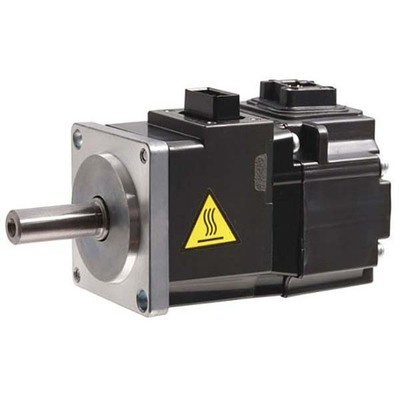

Motor Servo AC Brushless Mitsubishi MELSERVO J4 HG-MR13BD Servo Motor AC Brushless Mitsubishi Electric HG-MR13BD, parte da série MELSERVO J4, com 100W de potência e freio integrado. Ideal para aplicações que exigem alta precisão. ## Visão geral Este é um servomotor rotativo AC sem escovas, pertencente à série MELSERVO J4 da Mitsubishi Electric. Ele é projetado com um eixo com corte em D (com chaveta), freio eletromagnético integrado e um encoder absoluto de 22 bits. O motor opera com resfriamento natural e possui baixa inércia e capacidade de pequena potência. O servomotor oferece uma saída nominal de 100W (0.1kW) e uma tensão de alimentação de 200Vca. Com um torque nominal de 0.32Nm e velocidade rotacional nominal de 3000rpm, ele é adequado para diversas aplicações industriais. O grau de proteção IP65 garante resistência contra poeira e jatos d’água. ## Principais recursos * Motor rotativo AC sem escovas * Eixo com corte em D (com chaveta) * Freio eletromagnético integrado * Encoder absoluto de 22 bits integrado * Baixa inércia * Resfriamento natural * Conector retangular de 4 pinos * Montagem por flange de 40x40mm * Grau de proteção IP65 ## Especificações | Parâmetro | Valor | | :——————————— | :——————————————————————————————————— | | Marca principal | Mitsubishi Electric | | Função principal | Servomotor AC | | Série / nome da família do produto | Série MELSERVO J4 | | Nome do sub-range | Série HG-MR | | Funções | Servomotor rotativo AC sem escovas | | Projeto | Eixo com corte em D (com chaveta) freio eletromagnético integrado codificador de feedback absoluto (22 bits) inércia ultrabaixa / capacidade de pequena potência resfriamento natural | | Tensão de alimentação (AC) | Classe 200Vca | | Corrente nominal | 0.9A | | Potência ativa nominal (kW) | 100W / 0.1kW | | Velocidade de rotação | 3000rpm 6000rpm (máxima) | | Torque | 0.32Nm nominal | | Torque máximo | 0.95Nm | | Momento de inércia | 0.00000362kg.m² (0.0362kg.cm²) | | Tipo de conexão | Conector retangular de 4 pinos | | Modo de montagem | Montagem por flange de 40x40mm | | Resolução | Feedback de 22 bits (equivalente a 4194304ppr) | | Grau de proteção | IP65 | | Dimensões | A57.1mm x L40mm x P148mm | | Altura líquida (mm) | 57.1 mm | | Largura líquida (mm) | 40 mm | | Profundidade líquida (mm) | 148 mm | | Temperatura do ar ambiente para operação | 0…+40 °C | | Temperatura do ar ambiente para armazenamento | -15°C…+70 °C | | Carga radial máxima | 88 N | | Carga axial máxima | 59 N | | Corrente máxima | 2.5 A | | Código de pedido / SKU do fabricante | HG-MR13BD | | Status do produto do fabricante | Comercializado | | Equivalente a | HGMR13BD | | Em conformidade com a(s) norma(s) | Marcação CE TUV Rheinland cULus UL KC EN61800-3 EN60034-1 EN62061 SILCL3 EN50581 UL1004-1 UL1004-6 CSA KC EAC | ## Documentos * [Mitsubishi Electric – MELSERVO J4 series – Catalogue.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjIvMDIvMTAvMTUvMDQvMjgvNTZlMGQzODAtNWQ4ZC00NTI5LTg0ZmEtZjFjOTQwMWZlZjEyL01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBNRUxTRVJWTyUyMEo0JTIwc2VyaWVzJTIwLSUyMENhdGFsb2d1ZS5wZGYiXV0?sha=5401ce98f40052fe) Este produto é compatível com os amplificadores da série MR-J4. Para informações detalhadas sobre cabos e acessórios recomendados, consulte a documentação técnica. [Entre em contato conosco para mais informações.](https://mokka-sensors.com.br/#contato)
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | HG-MR series |
| Functions | AC brushless rotary servo motor |
| Design | D-cut shaft (with flat) built-in e/m brake built-in absolute feedback encod. (22-bit) ultra-low inertia / small power capacity natural cooling |
| Supply voltage (AC) | 200Vac class |
| Rated current | 0.9A |
| Rated active power (kW) | 100W / 0.1kW |
| Rotational speed | 3000rpm 6000rpm (maximum) |
| Torque | 0.32Nm nominal |
| Maximum torque | 0.95Nm |
| Moment of inertia | 0.00000362kg.m2 (0.0362kg.cm2) |
| Connection type | 4-pin rectangular connector |
| Mounting mode | 40x40mm flange mounting |
| Resolution | 22-bit (equivalent to 4194304ppr) feedback |
| Degree of protection | IP65 |
| Dimensions | H57.1mm x W40mm x D148mm |
| Net Height (mm) | 57.1 mm |
| Net Width (mm) | 40 mm |
| Net Depth (mm) | 148 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum radial load | 88 N |
| Maximum axial load | 59 N |
| Maximum current | 2.5 A |
| Order code / Manufacturer SKU | HG-MR13BD |
| Manufacturer product status | Commercialized |
| Equivalent to | HGMR13BD |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC EN61800-3 EN60034-1 EN62061 SILCL3 EN50581 UL1004-1 UL1004-6 CSA KC EAC |
| Recommended accessories | for standard 1-axis use amplifiers – MR-J4-10GF – MR-J4-10GF-RJ – MR-J4-10B – MR-J4-10B-RJ – MR-J4-10B1 – MR-J4-10B1-RJ – MR-J4-10A – MR-J4-10A-RJ – MR-J4-10A1 – MR-J4-10A1-RJ for standard 2-axis use amplifiers – MR-J4W2-44B for standard 3-axis use amplifiers – MR-J4W3-222B – MR-J4W3-444B Use amplifier motor cables as follows – Encoder cable for HG-KR/HG-MR lead out in direction of motor shaft (direct connection type) — Standard bending life –> 2m ( MR-J3ENCBL2M-A1-L ) –> 5m ( MR-J3ENCBL5M-A1-L ) –> 10m ( MR-J3ENCBL10M-A1-L ) – Encoder cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (direct connection type) — Standard bending life –> 1m ( MR-J3ENCBL1M-A2-L ) –> 2m ( MR-J3ENCBL2M-A2-L ) –> 5m ( MR-J3ENCBL5M-A2-L ) –> 10m ( MR-J3ENCBL10M-A2-L ) — Long bending life –> 1m ( MR-J3ENCBL1M-A2-H ) –> 2m ( MR-J3ENCBL2M-A2-H ) –> 5m ( MR-J3ENCBL5M-A2-H ) –> 10m ( MR-J3ENCBL10M-A2-H ) – Encoder cable for HG-KR/HG-MR (junction type) — Standard bending life –> 2m ( MR-EKCBL2M-L or MR-J3ENSCBL2M-L ) –> 5m ( MR-EKCBL5M-L or MR-J3ENSCBL5M-L ) –> 10m ( MR-EKCBL10M-L or MR-J3ENSCBL10M-L ) –> 15m ( MR-EKCBL15M-L ) –> 20m ( MR-EKCBL20M-L or MR-J3ENSCBL20M-L ) –> 30m ( MR-EKCBL30M-L or MR-J3ENSCBL30M-L ) — Long bending life –> 2m ( MR-EKCBL2M-H or MR-J3ENSCBL2M-H ) –> 5m ( MR-EKCBL5M-H or MR-J3ENSCBL5M-H ) –> 10m ( MR-EKCBL10M-H or MR-J3ENSCBL10M-H ) –> 20m ( MR-EKCBL20M-H or MR-J3ENSCBL20M-H ) –> 30m ( MR-EKCBL30M-H or MR-J3ENSCBL30M-H ) –> 40m ( MR-J3ENSCBL40M-H ) –> 50m ( MR-EKCBL50M-H or MR-J3ENSCBL50M-H ) –> 60m ( MR-J3ENSCBL60M-H ) – Encoder cable for HG-KR/HG-MR lead out in direction of motor shaft (junction type) — Standard bending life –> 0.3m ( MR-J3JCBL03M-A1-L ) –> 3m ( MR-J3JSCBL03M-A1-L ) – Encoder cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (junction type) — Standard bending life –> 0.3m ( MR-J3JCBL03M-A2-L ) –> 3m ( MR-J3JSCBL03M-A2-L ) – Power supply cable for HG-KR/HG-MR lead out in direction of motor shaft (direct connection type) — Standard bending life –> 2m ( MR-PWS1CBL2M-A1-L ) –> 3m ( MR-PWS1CBL3M-A1-L ) –> 5m ( MR-PWS1CBL5M-A1-L ) –> 10m ( MR-PWS1CBL10M-A1-L ) — Long bending life –> 2m ( MR-PWS1CBL2M-A1-H ) –> 3m ( MR-PWS1CBL3M-A1-H ) –> 5m ( MR-PWS1CBL5M-A1-H ) –> 7m ( MR-PWS1CBL7M-A1-H ) –> 8m ( MR-PWS1CBL8M-A1-H ) –> 10m ( MR-PWS1CBL10M-A1-H ) – Power supply cable; Shielded type for HG-KR/HG-MR lead out in direction of motor shaft (direct connection type) — Standard bending life –> 0.3m ( MR-J3PS03M-A1 ) –> 5m ( MR-J3PS5M-A1 ) –> 10m ( MR-J3PS10M-A1 ) – Power supply cable; Shielded type for HG-KR/HG-MR lead out in opposite direction of motor shaft (direct connection type) — Standard bending life –> 0.3m ( MR-J3PS03M-A2 ) –> 5m ( MR-J3PS5M-A2 ) –> 10m ( MR-J3PS10M-A2 ) – Power supply cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (direct connection type) — Standard bending life –> 1m ( MR-PWS1CBL1M-A2-L ) –> 2m ( MR-PWS1CBL2M-A2-L ) –> 5m ( MR-PWS1CBL5M-A2-L ) –> 10m ( MR-PWS1CBL10M-A2-L ) — Long bending life –> 1m ( MR-PWS1CBL1M-A2-H ) –> 5m ( MR-PWS1CBL5M-A2-H ) –> 10m ( MR-PWS1CBL10M-A2-H ) –> 15m ( MR-PWS1CBL15M-A2-H ) – Power supply cable for HG-KR/HG-MR lead out in direction of motor shaft (relay type) — Standard bending life –> 0.3m ( MR-PWS2CBL03M-A1-L ) – Power supply cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (relay type) — Standard bending life –> 0.3m ( MR-PWS2CBL03M-A2-L ) – Power supply cable for HG-KR/HG-MR series to MR-J4W2/MR-J4W3 series amplifier — Direct connection type lead out in direction of motor shaft –> 2m ( SC-EPWS1CBL2M-A1-L ) –> 5m ( SC-EPWS1CBL5M-A1-L ) — Direct connection type lead out in opposite direction of motor shaft –> 2m ( SC-EPWS1CBL2M-A2-L ) –> 5m ( SC-EPWS1CBL5M-A2-L ) — Direct connection type lead out in direction of motor shaft (Long bending life) –> 2m ( SC-EPWS1CBL2M-A1-H ) –> 5m ( SC-EPWS1CBL5M-A1-H ) — Direct connection type lead out in opposite direction of motor shaft (Long bending life) –> 2m ( SC-EPWS1CBL2M-A2-H ) –> 5m ( SC-EPWS1CBL5M-A2-H ) – Motor brake cables for HG-KR/HG-MR Lead out in direction of motor shaft (direct connection type) — Standard bending life –> 2m ( MR-BKS1CBL2M-A1-L ) –> 5m ( MR-BKS1CBL5M-A1-L ) –> 10m ( MR-BKS1CBL10M-A1-L ) — Long bending life –> 2m ( MR-BKS1CBL2M-A1-H ) –> 5m ( MR-BKS1CBL5M-A1-H ) –> 7m ( MR-BKS1CBL7M-A1-H ) –> 10m ( MR-BKS1CBL10M-A1-H ) – Motor brake cables for HG-KR/HG-MR Lead out in opposite direction of motor shaft (direct connection type) — Standard bending life –> 2m ( MR-BKS1CBL2M-A2-L ) –> 5m ( MR-BKS1CBL5M-A2-L ) –> 10m ( MR-BKS1CBL10M-A2-L ) — Long bending life –> 2m ( MR-BKS1CBL2M-A2-H ) –> 5m ( MR-BKS1CBL5M-A2-H ) –> 10m ( MR-BKS1CBL10M-A2-H ) – Motor brake cables for HG-KR/HG-MR lead out in direction of motor shaft (relay type) — standard –> 0.3m ( MR-BKS2CBL03M-A1-L ) – Motor brake cables for HG-KR/HG-MR lead out in opposite direction of motor shaft (relay type) — standard –> 0.3m ( MR-BKS2CBL03M-A2-L ) |
