Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J2S series |
| Sub-range name | HC-KF series |
| Functions | AC brushless rotary servo motor |
| Design | keyed shaft built-in absolute feedback encod. (17-bit) low inertia / small power capacity fan cooling |
| Supply voltage (AC) | 200Vac class |
| Rated current | 2.3A |
| Rated active power (kW) | 400W / 0.4kW |
| Rotational speed | 3000rpm 4500rpm (maximum) |
| Torque | 1.3Nm nominal |
| Maximum torque | 3.8Nm |
| Moment of inertia | 0.0000460kg.m2 (0.46kg.cm2) |
| Mounting mode | 60x60mm flange mounting |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Degree of protection | IP55 |
| Dimensions | H72.8mm x W62mm x D154.5mm |
| Net Height (mm) | 72.8 mm |
| Net Width (mm) | 62 mm |
| Net Depth (mm) | 154.5 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 6.9 A |

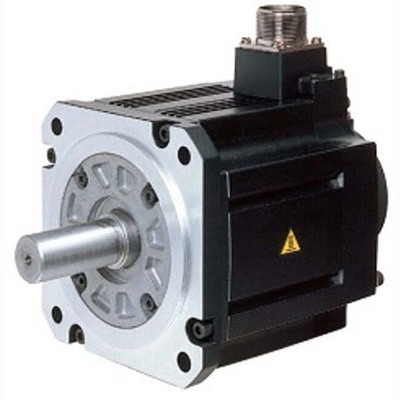

| Order code / Manufacturer SKU | HC-KFS43K |
| Manufacturer product status | Discontinued |
