Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |

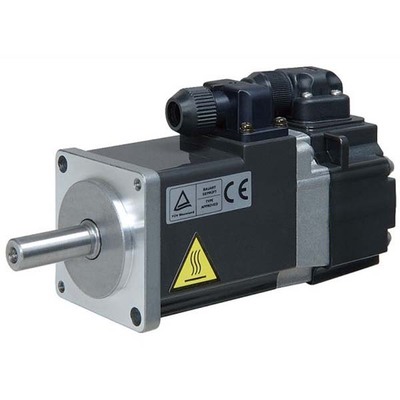

| Main function | AC servo motor |
| Product series / family name | MELSERVO JN series |
| Sub-range name | HF-KN series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in e/m brake built-in incremental feedback encod. (131072ppr) low inertia / small power capacity natural cooling |
| Supply voltage (AC) | 200Vac class |
| Rated current | 0.9A |
| Rated active power (kW) | 50W / 0.05kW |
| Rotational speed | 3000rpm 4500rpm (maximum) |
| Torque | 0.16Nm nominal |
| Maximum torque | 0.48Nm |
| Moment of inertia | 0.0000054kg.m2 (0.054kg.cm2) |
| Mounting mode | 60x60mm flange mounting |
| Resolution | 131072ppr (equivalent to 17-bit) feedback |
| Degree of protection | IP65 |
| Dimensions | H77.1mm x W60mm x D133.9mm |
| Net Height (mm) | 77.1 mm |
| Net Width (mm) | 60 mm |
| Net Depth (mm) | 133.9 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 2.7 A |
| Order code / Manufacturer SKU | HF-KN053B |
| Manufacturer product status | Commercialized |
