### Especificações | Parâmetro | Valor | | :———————————————– | :———————————————————————————————————————– | | Marca principal | Mitsubishi Electric | | Função principal | Servomotor AC | | Série / nome da família do produto | Série MELSERVO J4 | | Nome da sub-gama | Série HG-SR | | Funções | Servomotor AC brushless rotativo | | Projeto | Eixo reto, freio e/m integrado, encoder absoluto integrado (22 bits), compatibilidade com unidade de segurança, inércia média / capacidade de potência média, refrigeração natural | | Tensão de alimentação (AC) | Classe 400Vac | | Corrente nominal | 11A | | Potência ativa nominal (kW) | 5000W / 5kW | | Velocidade de rotação | 2000rpm (nominal) / 3000rpm (máxima) | | Torque | 23.9Nm (nominal) | | Torque máximo | 71.6Nm | | Momento de inércia | 0.0109kg.m² (109kg.cm²) | | Tipo de conexão | 2 conectores tipo MS | | Modo de montagem | Montagem em flange 176x176mm | | Resolução | Feedback de 22 bits (equivalente a 4194304ppr) | | Grau de proteção | IP67 | | Dimensões | A228.9mm x L176mm x P307mm | | Altura líquida (mm) | 228.9 mm | | Largura líquida (mm) | 176 mm | | Profundidade líquida (mm) | 307 mm | | Temperatura ambiente para operação | 0…+40 °C | | Temperatura ambiente para armazenamento | -15°C…+70 °C | | Carga radial máxima | 2058 N | | Carga axial máxima | 980 N | | Corrente máxima | 42 A | | Código de pedido / SKU do fabricante | HG-SR5024BW0C | | Status do produto do fabricante | Comercializado | | Equivalente a | HGSR5024BW0C | | Em conformidade com norma(s) | Marcação CE, TUV Rheinland, cULus, UL, KC, EN61800-3, EN60034-1, EN62061 SILCL3, EN50581, UL1004-1, UL1004-6, CSA, KC, EAC | | Acessórios recomendados | Para uso em 1 eixo padrão, amplificadores – MR-J4-500GF4, MR-J4-500GF4-RJ, MR-J4-500B4, MR-J4-500B4-RJ, MR-J4-500A4, MR-J4-500A4-RJ. Usar cabos amplificador motor como segue: Cabo encoder para HG-SR e HG-SR (tipo de conexão direta) — Vida útil padrão em flexão –> 2m (MR-J3ENSCBL2M-L), 5m (MR-J3ENSCBL5M-L), 10m (MR-J3ENSCBL10M-L), 20m (MR-J3ENSCBL20M-L), 30m (MR-J3ENSCBL30M-L). — Vida útil longa em flexão –> 2m (MR-J3ENSCBL2M-H), 5m (MR-J3ENSCBL5M-H), 10m (MR-J3ENSCBL10M-H), 15m (MR-J3ENSCBL15M-H), 17m (MR-J3ENSCBL17M-H), 20m (MR-J3ENSCBL20M-H), 30m (MR-J3ENSCBL30M-H), 40m (MR-J3ENSCBL40M-H), 50m (MR-J3ENSCBL50M-H ou MR-J3ENS4CBL50M-H), 60m (MR-J3ENSCBL60M-H ou MR-J3ENS4CBL60M-H), 80m (MR-J3ENS4CBL80M-H), 90m (MR-J3ENS4CBL90M-H), 100m (MR-J3ENS4CBL100M-H). Cabo de alimentação — Tipo reto –> 2m (MR-J3P10-2M), 5m (MR-J3P10-5M), 10m (MR-J3P10-10M), 15m (MR-J3P10-15M), 20m (MR-J3P10-20M), 25m (MR-J3P10-25M), 30m (MR-J3P10-30M). Cabo de alimentação; Tipo blindado — Vida útil longa –> 2m (MR-J3PWS10-2M), 5m (MR-J3PWS10-5M), 10m (MR-J3PWS10-10M), 15m (MR-J3PWS10-15M), 20m (MR-J3PWS10-20M), 25m (MR-J3PWS10-25M), 30m (MR-J3PWS10-30M). Cabo de alimentação para série HG-SR/HG-JR/HG-UR para amplificador série MR-J4W2/MR-J4W3 — Vida útil padrão –> 2m (SC-EPWS2CBL2M-L), 5m (SC-EPWS2CBL5M-L), 10m (SC-EPWS2CBL10M-L), 20m (SC-EPWS2CBL20M-L), 30m (SC-EPWS2CBL30M-L). — Vida útil longa –> 2m (SC-EPWS2CBL2M-H), 5m (SC-EPWS2CBL5M-H), 10m (SC-EPWS2CBL10M-H), 20m (SC-EPWS2CBL20M-H), 30m (SC-EPWS2CBL30M-H). Cabo de freio; Tipo blindado para série HG-SR/JR/RR/UR — Padrão –> 2m (MR-J3BK-2M), 5m (MR-J3BK-5M), 10m (MR-J3BK-10M), 15m (MR-J3BK-15M), 20m (MR-J3BK-20M), 25m (MR-J3BK-25M), 30m (MR-J3BK-30M), 40m (MR-J3BK-40M), 50m (MR-J3BK-50M). Cabos de freio para série HG-SR/JR/RR/UR — Vida útil longa –> 2m (MR-J3BRKS1-2M), 5m (MR-J3BRKS1-5M), 10m (MR-J3BRKS1-10M), 15m (MR-J3BRKS1-15M), 20m (MR-J3BRKS1-20M), 25m (MR-J3BRKS1-25M), 30m (MR-J3BRKS1-30M), 40m (MR-J3BRKS1-40M), 50m (MR-J3BRKS1-50M). |—SEPARATOR—### Documentos * [Mitsubishi Electric – MELSERVO J4 series – Catalogue.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjIvMDIvMTAvMTUvMDQvMjgvNTZlMGQzODAtNWQ4ZC00NTI5LTg0ZmEtZjFjOTQwMWZlZjEyL01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBNRUxTRVJWTyUyMEo0JTIwc2VyaWVzJTIwLSUyMENhdGFsb2d1ZS5wZGYiXV0?sha=5401ce98f40052fe) Este produto é equivalente ao SKU HGSR5024BW0C. Para mais informações ou para discutir suas necessidades, entre em contato conosco. [Saiba Mais no Contato](https://mokka-sensors.com.br/#contato)
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | HG-SR series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in e/m brake built-in absolute feedback encod. (22-bit) safety unit compatibility medium inertia / medium power capacity natural cooling |
| Supply voltage (AC) | 400Vac class |
| Rated current | 11A |
| Rated active power (kW) | 5000W / 5kW |
| Rotational speed | 2000rpm 3000rpm (maximum) |
| Torque | 23.9Nm nominal |
| Maximum torque | 71.6Nm |
| Moment of inertia | 0.0109kg.m2 (109kg.cm2) |
| Connection type | 2 x MS-type connectors |
| Mounting mode | 176x176mm flange mounting |
| Resolution | 22-bit (equivalent to 4194304ppr) feedback |
| Degree of protection | IP67 |
| Dimensions | H228.9mm x W176mm x D307mm |
| Net Height (mm) | 228.9 mm |
| Net Width (mm) | 176 mm |
| Net Depth (mm) | 307 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum radial load | 2058 N |
| Maximum axial load | 980 N |
| Maximum current | 42 A |

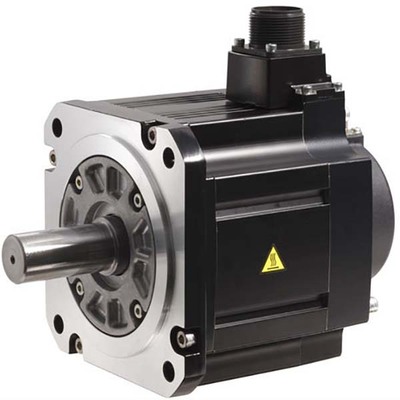

| Order code / Manufacturer SKU | HG-SR5024BW0C |
| Manufacturer product status | Commercialized |
| Equivalent to | HGSR5024BW0C |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC EN61800-3 EN60034-1 EN62061 SILCL3 EN50581 UL1004-1 UL1004-6 CSA KC EAC |
| Recommended accessories | for standard 1-axis use amplifiers – MR-J4-500GF4 – MR-J4-500GF4-RJ – MR-J4-500B4 – MR-J4-500B4-RJ – MR-J4-500A4 – MR-J4-500A4-RJ Use amplifier motor cables as follows – Encoder cable for HG-SR and HG-SR (direct connection type) — Standard bending life –> 2m ( MR-J3ENSCBL2M-L ) – Encoder cable for HG-SR and HG-SR (direct connection type) — Standard bending life –> 2m ( MR-J3ENSCBL2M-L ) –> 5m ( MR-J3ENSCBL5M-L ) –> 10m ( MR-J3ENSCBL10M-L ) –> 20m ( MR-J3ENSCBL20M-L ) –> 30m ( MR-J3ENSCBL30M-L ) — Long bending life –> 2m ( MR-J3ENSCBL2M-H ) –> 5m ( MR-J3ENSCBL5M-H ) –> 10m ( MR-J3ENSCBL10M-H ) –> 15m ( MR-J3ENSCBL15M-H ) –> 17m ( MR-J3ENSCBL17M-H ) –> 20m ( MR-J3ENSCBL20M-H ) –> 30m ( MR-J3ENSCBL30M-H ) –> 40m ( MR-J3ENSCBL40M-H ) –> 50m ( MR-J3ENSCBL50M-H or MR-J3ENS4CBL50M-H ) –> 60m ( MR-J3ENSCBL60M-H or MR-J3ENS4CBL60M-H ) –> 80m ( MR-J3ENS4CBL80M-H ) –> 90m ( MR-J3ENS4CBL90M-H ) –> 100m ( MR-J3ENS4CBL100M-H ) – Power supply cable cables (straight type connector) — Standard bending life –> 2m ( MR-J3P10-2M ) –> 5m ( MR-J3P10-5M ) –> 10m ( MR-J3P10-10M ) –> 15m ( MR-J3P10-15M ) –> 20m ( MR-J3P10-20M ) –> 25m ( MR-J3P10-25M ) –> 30m ( MR-J3P10-30M ) – Power supply cable; Shielded type cables (straight type connector) — Long bending life –> 2m ( MR-J3PWS10-2M ) –> 5m ( MR-J3PWS10-5M ) –> 10m ( MR-J3PWS10-10M ) –> 15m ( MR-J3PWS10-15M ) –> 20m ( MR-J3PWS10-20M ) –> 25m ( MR-J3PWS10-25M ) –> 30m ( MR-J3PWS10-30M ) – Power supply cable for HG-SR/HG-JR/HG-UR series to MR-J4W2/MR-J4W3 series amplifier — Standard bending life –> 2m ( SC-EPWS2CBL2M-L ) –> 5m ( SC-EPWS2CBL5M-L ) –> 10m ( SC-EPWS2CBL10M-L ) –> 20m ( SC-EPWS2CBL20M-L ) –> 30m ( SC-EPWS2CBL30M-L ) — Long bending life –> 2m ( SC-EPWS2CBL2M-H ) –> 5m ( SC-EPWS2CBL5M-H ) –> 10m ( SC-EPWS2CBL10M-H ) –> 20m ( SC-EPWS2CBL20M-H ) –> 30m ( SC-EPWS2CBL30M-H ) – Brake cable; shield type for HG-SR/JR/RR/UR series — standard –> 2m ( MR-J3BK-2M ) –> 5m ( MR-J3BK-5M ) –> 10m ( MR-J3BK-10M ) –> 15m ( MR-J3BK-15M ) –> 20m ( MR-J3BK-20M ) –> 25m ( MR-J3BK-25M ) –> 30m ( MR-J3BK-30M ) –> 40m ( MR-J3BK-40M ) –> 50m ( MR-J3BK-50M ) – Brake cables for HG-SR/JR/RR/UR series — Long bending life –> 2m ( MR-J3BRKS1-2M ) –> 5m ( MR-J3BRKS1-5M ) –> 10m ( MR-J3BRKS1-10M ) –> 15m ( MR-J3BRKS1-15M ) –> 20m ( MR-J3BRKS1-20M ) –> 25m ( MR-J3BRKS1-25M ) –> 30m ( MR-J3BRKS1-30M ) –> 40m ( MR-J3BRKS1-40M ) –> 50m ( MR-J3BRKS1-50M ) |
