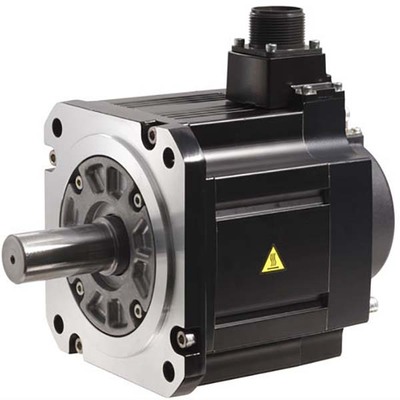

Entre em contato conosco para mais informações sobre o servo motor Mitsubishi Electric HG-SR3524BJ. https://mokka-sensors.com.br/#contato
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | HG-SR series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in e/m brake built-in absolute feedback encod. (22-bit) oil seal medium inertia / medium power capacity natural cooling |
| Supply voltage (AC) | 400Vac class |
| Rated current | 7A |
| Rated active power (kW) | 3500W / 3.5kW |
| Rotational speed | 2000rpm 3000rpm (maximum) |
| Torque | 16.7Nm nominal |
| Maximum torque | 50.1Nm |
| Moment of inertia | 0.00882kg.m2 (88.2kg.cm2) |
| Connection type | 2 x MS-type connectors |
| Mounting mode | 176x176mm flange mounting |
| Resolution | 22-bit (equivalent to 4194304ppr) feedback |
| Degree of protection | IP67 |
| Dimensions | H228.9mm x W176mm x D291mm |
| Net Height (mm) | 228.9 mm |
| Net Width (mm) | 176 mm |
| Net Depth (mm) | 291 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum radial load | 2058 N |
| Maximum axial load | 980 N |
| Maximum current | 27 A |
| Order code / Manufacturer SKU | HG-SR3524BJ |
| Manufacturer product status | Commercialized |
| Equivalent to | HGSR3524BJ |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC EN61800-3 EN60034-1 EN62061 SILCL3 EN50581 UL1004-1 UL1004-6 CSA KC EAC |
| Recommended accessories | for standard 1-axis use amplifiers – MR-J4-350GF4 – MR-J4-350GF4-RJ – MR-J4-350B4 – MR-J4-350B4-RJ – MR-J4-350A4 – MR-J4-350A4-RJ Use amplifier motor cables as follows – Encoder cable for HG-SR and HG-SR (direct connection type) — Standard bending life –> 2m ( MR-J3ENSCBL2M-L ) – Encoder cable for HG-SR and HG-SR (direct connection type) — Standard bending life –> 2m ( MR-J3ENSCBL2M-L ) –> 5m ( MR-J3ENSCBL5M-L ) –> 10m ( MR-J3ENSCBL10M-L ) –> 20m ( MR-J3ENSCBL20M-L ) –> 30m ( MR-J3ENSCBL30M-L ) — Long bending life –> 2m ( MR-J3ENSCBL2M-H ) –> 5m ( MR-J3ENSCBL5M-H ) –> 10m ( MR-J3ENSCBL10M-H ) –> 15m ( MR-J3ENSCBL15M-H ) –> 17m ( MR-J3ENSCBL17M-H ) –> 20m ( MR-J3ENSCBL20M-H ) –> 30m ( MR-J3ENSCBL30M-H ) –> 40m ( MR-J3ENSCBL40M-H ) –> 50m ( MR-J3ENSCBL50M-H or MR-J3ENS4CBL50M-H ) –> 60m ( MR-J3ENSCBL60M-H or MR-J3ENS4CBL60M-H ) –> 80m ( MR-J3ENS4CBL80M-H ) –> 90m ( MR-J3ENS4CBL90M-H ) –> 100m ( MR-J3ENS4CBL100M-H ) – Power supply cable cables (straight type connector) — Standard bending life –> 2m ( MR-J3P4-2M ) –> 5m ( MR-J3P4-5M ) –> 10m ( MR-J3P4-10M ) –> 15m ( MR-J3P4-15M ) –> 20m ( MR-J3P4-20M ) –> 25m ( MR-J3P4-25M ) –> 30m ( MR-J3P4-30M ) –> 100m ( MR-J3P4-100M ) – Power supply cable; Shielded type cables (straight type connector) — Long bending life –> 2m ( MR-J3PWS4-2M ) –> 5m ( MR-J3PWS4-5M ) –> 10m ( MR-J3PWS4-10M ) –> 15m ( MR-J3PWS4-15M ) –> 20m ( MR-J3PWS4-20M ) –> 25m ( MR-J3PWS4-25M ) –> 30m ( MR-J3PWS4-30M ) –> 40m ( MR-J3PWS4-40M ) –> 50m ( MR-J3PWS4-50M ) – Power supply cable for HG-SR/HG-JR/HG-UR series to MR-J4W2/MR-J4W3 series amplifier — Standard bending life –> 2m ( SC-EPWS2CBL2M-L ) –> 5m ( SC-EPWS2CBL5M-L ) –> 10m ( SC-EPWS2CBL10M-L ) –> 20m ( SC-EPWS2CBL20M-L ) –> 30m ( SC-EPWS2CBL30M-L ) — Long bending life –> 2m ( SC-EPWS2CBL2M-H ) –> 5m ( SC-EPWS2CBL5M-H ) –> 10m ( SC-EPWS2CBL10M-H ) –> 20m ( SC-EPWS2CBL20M-H ) –> 30m ( SC-EPWS2CBL30M-H ) – Brake cable; shield type for HG-SR/JR/RR/UR series — standard –> 2m ( MR-J3BK-2M ) –> 5m ( MR-J3BK-5M ) –> 10m ( MR-J3BK-10M ) –> 15m ( MR-J3BK-15M ) –> 20m ( MR-J3BK-20M ) –> 25m ( MR-J3BK-25M ) –> 30m ( MR-J3BK-30M ) –> 40m ( MR-J3BK-40M ) –> 50m ( MR-J3BK-50M ) – Brake cables for HG-SR/JR/RR/UR series — Long bending life –> 2m ( MR-J3BRKS1-2M ) –> 5m ( MR-J3BRKS1-5M ) –> 10m ( MR-J3BRKS1-10M ) –> 15m ( MR-J3BRKS1-15M ) –> 20m ( MR-J3BRKS1-20M ) –> 25m ( MR-J3BRKS1-25M ) –> 30m ( MR-J3BRKS1-30M ) –> 40m ( MR-J3BRKS1-40M ) –> 50m ( MR-J3BRKS1-50M ) |
