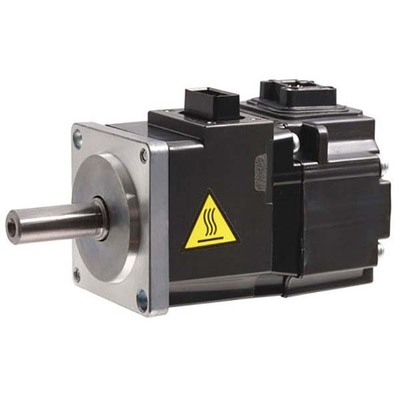

Servo Motor Mitsubishi Electric HG-MR43BJ MELSERVO J4 400W Servo Motor Mitsubishi Electric MELSERVO J4 HG-MR43BJ, 400W, 200V, 1.3Nm, com freio e encoder absoluto 22-bit. Ideal para aplicações industriais que exigem alta precisão e confiabilidade. ## Visão geral O servo motor rotativo AC sem escovas HG-MR43BJ, da linha MELSERVO J4 da Mitsubishi Electric, é projetado para aplicações de alto desempenho. Este modelo apresenta um eixo reto e inclui um freio eletromecânico e um encoder absoluto de 22 bits integrado, garantindo feedback de alta resolução. Com uma potência nominal de saída de 400W (0.4kW) e tensão de alimentação na classe de 200Vac, este servo motor oferece um torque nominal de 1.3Nm e uma velocidade nominal de rotação de 3000rpm. Sua construção robusta, com grau de proteção IP65 e montagem por flange de 60x60mm, o torna adequado para ambientes industriais desafiadores. Este servo motor é uma solução confiável para automação industrial, controle de movimento e robótica, onde precisão, eficiência e durabilidade são requisitos essenciais. ### Principais recursos * Servo motor AC sem escovas * Eixo reto * Freio eletromecânico integrado * Encoder absoluto de 22 bits (equivalente a 4194304 pulsos/volta) * Retentor de óleo * Inércia ultra-baixa / baixa capacidade de potência * Refrigeração natural * Conector retangular de 4 pinos * Montagem por flange de 60x60mm * Grau de proteção IP65 ### Especificações | Parâmetro | Valor | | :————————————- | :———————————————————————————————————————- | | Marca principal | Mitsubishi Electric | | Função principal | Servo motor AC | | Série / Nome da família do produto | MELSERVO J4 series | | Nome da sub-gama | HG-MR series | | Funções | Servo motor rotativo AC sem escovas | | Projeto | Eixo reto, freio e/m embutido, encoder de feedback absoluto (22 bits) embutido, retentor de óleo, inércia ultra-baixa/baixa potência, refrigeração natural | | Tensão de alimentação (AC) | Classe 200Vac | | Corrente nominal | 2.6A | | Potência ativa nominal (kW) | 400W / 0.4kW | | Velocidade de rotação | 3000rpm / 6000rpm (máxima) | | Torque | 1.3Nm nominal | | Torque máximo | 3.8Nm | | Momento de inércia | 0.0000164kg.m² (0.164kg.cm²) | | Tipo de conexão | Conector retangular de 4 pinos | | Modo de montagem | Montagem por flange de 60x60mm | | Resolução | Feedback de 22 bits (equivalente a 4194304ppr) | | Grau de proteção | IP65 | | Dimensões | A77.1mm x L60mm x P165.1mm | | Altura líquida (mm) | 77.1 mm | | Largura líquida (mm) | 60 mm | | Profundidade líquida (mm) | 165.1 mm | | Temperatura do ar ambiente para operação | 0…+40 °C | | Temperatura do ar ambiente para armazenamento | -15°C…+70 °C | | Carga radial máxima | 245 N | | Carga axial máxima | 98 N | | Corrente máxima | 9 A | | Código de pedido / SKU do fabricante | HG-MR43BJ | | Status do produto do fabricante | Comercializado | | Equivalente a | HGMR43BJ | | Em conformidade com as normas | Marca CE, TUV Rheinland, cULus, UL, KC, EN61800-3, EN60034-1, EN62061 SILCL3, EN50581, UL1004-1, UL1004-6, CSA, KC, EAC | ### Documentos * [Mitsubishi Electric – MELSERVO J4 series – Catalogue.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjIvMDIvMTAvMTUvMDQvMjgvNTZlMGQzODAtNWQ4ZC00NTI5LTg0ZmEtZjFjOTQwMWZlZjEyL01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBNRUxTRVJWTyUyMEo0JTIwc2VyaWVzJTIwLSUyMENhdGFsb2d1ZS5wZGYiXV0?sha=5401ce98f40052fe) Este produto é compatível com amplificadores da série MELSERVO J4 e requer cabos de conexão específicos (encoder e alimentação), que devem ser adquiridos separadamente. Para mais informações ou para adquirir este produto, entre em contato conosco. [https://mokka-sensors.com.br/#contato](https://mokka-sensors.com.br/#contato)
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | HG-MR series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in e/m brake built-in absolute feedback encod. (22-bit) oil seal ultra-low inertia / small power capacity natural cooling |
| Supply voltage (AC) | 200Vac class |
| Rated current | 2.6A |
| Rated active power (kW) | 400W / 0.4kW |
| Rotational speed | 3000rpm 6000rpm (maximum) |
| Torque | 1.3Nm nominal |
| Maximum torque | 3.8Nm |
| Moment of inertia | 0.0000164kg.m2 (0.164kg.cm2) |
| Connection type | 4-pin rectangular connector |
| Mounting mode | 60x60mm flange mounting |
| Resolution | 22-bit (equivalent to 4194304ppr) feedback |
| Degree of protection | IP65 |
| Dimensions | H77.1mm x W60mm x D165.1mm |
| Net Height (mm) | 77.1 mm |
| Net Width (mm) | 60 mm |
| Net Depth (mm) | 165.1 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum radial load | 245 N |
| Maximum axial load | 98 N |
| Maximum current | 9 A |
| Order code / Manufacturer SKU | HG-MR43BJ |
| Manufacturer product status | Commercialized |
| Equivalent to | HGMR43BJ |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC EN61800-3 EN60034-1 EN62061 SILCL3 EN50581 UL1004-1 UL1004-6 CSA KC EAC |
| Recommended accessories | for standard 1-axis use amplifiers – MR-J4-40GF – MR-J4-40GF-RJ – MR-J4-40B – MR-J4-40B-RJ – MR-J4-40B1 – MR-J4-40B1-RJ – MR-J4-40A – MR-J4-40A-RJ – MR-J4-40A1 – MR-J4-40A1-RJ for standard 2-axis use amplifiers – MR-J4W2-77B – MR-J4W2-1010B for standard 3-axis use amplifiers – MR-J4W3-444B Use amplifier motor cables as follows – Encoder cable for HG-KR/HG-MR lead out in direction of motor shaft (direct connection type) — Standard bending life –> 2m ( MR-J3ENCBL2M-A1-L ) –> 5m ( MR-J3ENCBL5M-A1-L ) –> 10m ( MR-J3ENCBL10M-A1-L ) – Encoder cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (direct connection type) — Standard bending life –> 1m ( MR-J3ENCBL1M-A2-L ) –> 2m ( MR-J3ENCBL2M-A2-L ) –> 5m ( MR-J3ENCBL5M-A2-L ) –> 10m ( MR-J3ENCBL10M-A2-L ) — Long bending life –> 1m ( MR-J3ENCBL1M-A2-H ) –> 2m ( MR-J3ENCBL2M-A2-H ) –> 5m ( MR-J3ENCBL5M-A2-H ) –> 10m ( MR-J3ENCBL10M-A2-H ) – Encoder cable for HG-KR/HG-MR (junction type) — Standard bending life –> 2m ( MR-EKCBL2M-L or MR-J3ENSCBL2M-L ) –> 5m ( MR-EKCBL5M-L or MR-J3ENSCBL5M-L ) –> 10m ( MR-EKCBL10M-L or MR-J3ENSCBL10M-L ) –> 15m ( MR-EKCBL15M-L ) –> 20m ( MR-EKCBL20M-L or MR-J3ENSCBL20M-L ) –> 30m ( MR-EKCBL30M-L or MR-J3ENSCBL30M-L ) — Long bending life –> 2m ( MR-EKCBL2M-H or MR-J3ENSCBL2M-H ) –> 5m ( MR-EKCBL5M-H or MR-J3ENSCBL5M-H ) –> 10m ( MR-EKCBL10M-H or MR-J3ENSCBL10M-H ) –> 20m ( MR-EKCBL20M-H or MR-J3ENSCBL20M-H ) –> 30m ( MR-EKCBL30M-H or MR-J3ENSCBL30M-H ) –> 40m ( MR-J3ENSCBL40M-H ) –> 50m ( MR-EKCBL50M-H or MR-J3ENSCBL50M-H ) –> 60m ( MR-J3ENSCBL60M-H ) – Encoder cable for HG-KR/HG-MR lead out in direction of motor shaft (junction type) — Standard bending life –> 0.3m ( MR-J3JCBL03M-A1-L ) –> 3m ( MR-J3JSCBL03M-A1-L ) – Encoder cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (junction type) — Standard bending life –> 0.3m ( MR-J3JCBL03M-A2-L ) –> 3m ( MR-J3JSCBL03M-A2-L ) – Power supply cable for HG-KR/HG-MR lead out in direction of motor shaft (direct connection type) — Standard bending life –> 2m ( MR-PWS1CBL2M-A1-L ) –> 3m ( MR-PWS1CBL3M-A1-L ) –> 5m ( MR-PWS1CBL5M-A1-L ) –> 10m ( MR-PWS1CBL10M-A1-L ) — Long bending life –> 2m ( MR-PWS1CBL2M-A1-H ) –> 3m ( MR-PWS1CBL3M-A1-H ) –> 5m ( MR-PWS1CBL5M-A1-H ) –> 7m ( MR-PWS1CBL7M-A1-H ) –> 8m ( MR-PWS1CBL8M-A1-H ) –> 10m ( MR-PWS1CBL10M-A1-H ) – Power supply cable; Shielded type for HG-KR/HG-MR lead out in direction of motor shaft (direct connection type) — Standard bending life –> 0.3m ( MR-J3PS03M-A1 ) –> 5m ( MR-J3PS5M-A1 ) –> 10m ( MR-J3PS10M-A1 ) – Power supply cable; Shielded type for HG-KR/HG-MR lead out in opposite direction of motor shaft (direct connection type) — Standard bending life –> 0.3m ( MR-J3PS03M-A2 ) –> 5m ( MR-J3PS5M-A2 ) –> 10m ( MR-J3PS10M-A2 ) – Power supply cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (direct connection type) — Standard bending life –> 1m ( MR-PWS1CBL1M-A2-L ) –> 2m ( MR-PWS1CBL2M-A2-L ) –> 5m ( MR-PWS1CBL5M-A2-L ) –> 10m ( MR-PWS1CBL10M-A2-L ) — Long bending life –> 1m ( MR-PWS1CBL1M-A2-H ) –> 5m ( MR-PWS1CBL5M-A2-H ) –> 10m ( MR-PWS1CBL10M-A2-H ) –> 15m ( MR-PWS1CBL15M-A2-H ) – Power supply cable for HG-KR/HG-MR lead out in direction of motor shaft (relay type) — Standard bending life –> 0.3m ( MR-PWS2CBL03M-A1-L ) – Power supply cable for HG-KR/HG-MR lead out in opposite direction of motor shaft (relay type) — Standard bending life –> 0.3m ( MR-PWS2CBL03M-A2-L ) – Power supply cable for HG-KR/HG-MR series to MR-J4W2/MR-J4W3 series amplifier — Direct connection type lead out in direction of motor shaft –> 2m ( SC-EPWS1CBL2M-A1-L ) –> 5m ( SC-EPWS1CBL5M-A1-L ) — Direct connection type lead out in opposite direction of motor shaft –> 2m ( SC-EPWS1CBL2M-A2-L ) –> 5m ( SC-EPWS1CBL5M-A2-L ) — Direct connection type lead out in direction of motor shaft (Long bending life) –> 2m ( SC-EPWS1CBL2M-A1-H ) –> 5m ( SC-EPWS1CBL5M-A1-H ) — Direct connection type lead out in opposite direction of motor shaft (Long bending life) –> 2m ( SC-EPWS1CBL2M-A2-H ) –> 5m ( SC-EPWS1CBL5M-A2-H ) – Motor brake cables for HG-KR/HG-MR Lead out in direction of motor shaft (direct connection type) — Standard bending life –> 2m ( MR-BKS1CBL2M-A1-L ) –> 5m ( MR-BKS1CBL5M-A1-L ) –> 10m ( MR-BKS1CBL10M-A1-L ) — Long bending life –> 2m ( MR-BKS1CBL2M-A1-H ) –> 5m ( MR-BKS1CBL5M-A1-H ) –> 7m ( MR-BKS1CBL7M-A1-H ) –> 10m ( MR-BKS1CBL10M-A1-H ) – Motor brake cables for HG-KR/HG-MR Lead out in opposite direction of motor shaft (direct connection type) — Standard bending life –> 2m ( MR-BKS1CBL2M-A2-L ) –> 5m ( MR-BKS1CBL5M-A2-L ) –> 10m ( MR-BKS1CBL10M-A2-L ) — Long bending life –> 2m ( MR-BKS1CBL2M-A2-H ) –> 5m ( MR-BKS1CBL5M-A2-H ) –> 10m ( MR-BKS1CBL10M-A2-H ) – Motor brake cables for HG-KR/HG-MR lead out in direction of motor shaft (relay type) — standard –> 0.3m ( MR-BKS2CBL03M-A1-L ) – Motor brake cables for HG-KR/HG-MR lead out in opposite direction of motor shaft (relay type) — standard –> 0.3m ( MR-BKS2CBL03M-A2-L ) |
