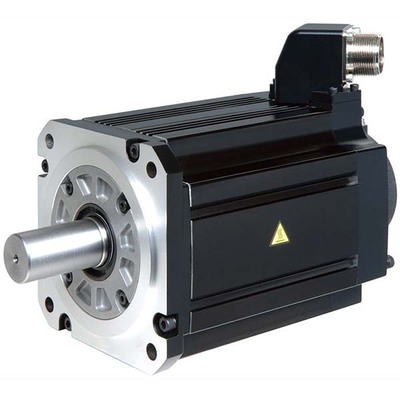

Servo Motor AC Brushless Mitsubishi Electric MELSERVO J4 HG-JR30K1M4 30kW 400V – Eixo Reto c/ Encoder Absoluto
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | HG-JR series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in thermistor built-in absolute feedback encod. (22-bit) oil seal low inertia / medium-large power capacity forced ventilation cooling |
| Supply voltage (AC) | 400Vac class |
| Rated current | 68A |
| Rated active power (kW) | 30kW |
| Rotational speed | 1500rpm 2500rpm (maximum) |
| Torque | 191Nm nominal |
| Maximum torque | 573Nm |
| Moment of inertia | 0.0627kg.m2 (627kg.cm2) |
| Connection type | MS-type connectors |
| Mounting mode | 250x250mm flange mounting |
| Resolution | 22-bit (equivalent to 4194304ppr) feedback |
| Degree of protection | IP44 |
| Dimensions | H345mm x W250mm x D678mm |
| Net Height (mm) | 345 mm |
| Net Width (mm) | 250 mm |
| Net Depth (mm) | 678 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum radial load | 3234 N |
| Maximum axial load | 1470 N |
| Maximum current | 235 A |
| Order code / Manufacturer SKU | HG-JR30K1M4 |
| Manufacturer product status | Commercialized |
| Equivalent to | HGJR30K1M4 |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC EN61800-3 EN60034-1 EN62061 SILCL3 EN50581 UL1004-1 UL1004-6 CSA KC EAC |
