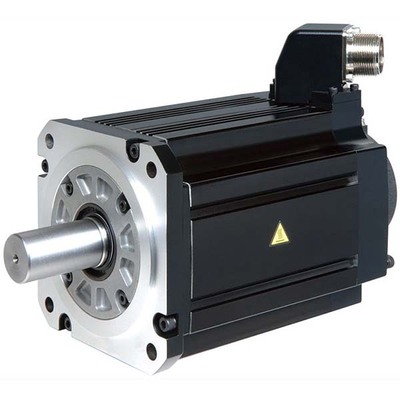

### Especificações | Parâmetro | Valor
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | HG-JR series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in e/m brake built-in absolute feedback encod. (22-bit) oil seal safety unit compatibility low inertia / medium-large power capacity natural cooling |
| Supply voltage (AC) | 200Vac class |
| Rated current | 11A |
| Rated active power (kW) | 1500W / 1.5kW |
| Rotational speed | 3000rpm 6000rpm (maximum) |
| Torque | 4.8Nm nominal |
| Maximum torque | 14.3Nm |
| Moment of inertia | 0.000429kg.m2 (4.29kg.cm2) |
| Connection type | 2 x MS-type connectors |
| Mounting mode | 90x90mm flange mounting |
| Resolution | 22-bit (equivalent to 4194304ppr) feedback |
| Degree of protection | IP67 |
| Dimensions | H138.8mm x W90mm x D285mm |
| Net Height (mm) | 138.8 mm |
| Net Width (mm) | 90 mm |
| Net Depth (mm) | 285 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum radial load | 323 N |
| Maximum axial load | 284 N |
| Maximum current | 32 A |
| Order code / Manufacturer SKU | HG-JR153BW0C |
| Manufacturer product status | Commercialized |
| Equivalent to | HGJR153BW0C |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC EN61800-3 EN60034-1 EN62061 SILCL3 EN50581 UL1004-1 UL1004-6 CSA KC EAC |
| Recommended accessories | for standard 1-axis use amplifiers – MR-J4-200GF – MR-J4-200GF-RJ – MR-J4-200B – MR-J4-200B-RJ – MR-J4-200A – MR-J4-200A-RJ – MR-J4-350GF – MR-J4-350GF-RJ – MR-J4-350B – MR-J4-350B-RJ – MR-J4-350A – MR-J4-350A-RJ Use amplifier motor cables as follows – Encoder cable for HG-JR — Standard bending life –> 2m ( MR-J3ENSCBL2M-L ) –> 5m ( MR-J3ENSCBL5M-L ) –> 10m ( MR-J3ENSCBL10M-L ) –> 20m ( MR-J3ENSCBL20M-L ) –> 30m ( MR-J3ENSCBL30M-L ) — Long bending life –> 2m ( MR-J3ENSCBL2M-H ) –> 5m ( MR-J3ENSCBL5M-H ) –> 10m ( MR-J3ENSCBL10M-H ) –> 15m ( MR-J3ENSCBL15M-H ) –> 17m ( MR-J3ENSCBL17M-H ) –> 20m ( MR-J3ENSCBL20M-H ) –> 30m ( MR-J3ENSCBL30M-H ) –> 40m ( MR-J3ENSCBL40M-H ) –> 50m ( MR-J3ENSCBL50M-H or MR-J3ENS4CBL50M-H ) –> 60m ( MR-J3ENSCBL60M-H or MR-J3ENS4CBL60M-H ) –> 80m ( MR-J3ENS4CBL80M-H ) –> 90m ( MR-J3ENS4CBL90M-H ) –> 100m ( MR-J3ENS4CBL100M-H ) – Power supply cable; Shielded type cables (straight type connector) — Long bending life –> 2m ( MR-J3PWS2-2M ) –> 5m ( MR-J3PWS2-5M ) –> 10m ( MR-J3PWS2-10M ) –> 15m ( MR-J3PWS2-15M ) –> 17m ( MR-J3PWS2-17M ) –> 20m ( MR-J3PWS2-20M ) –> 25m ( MR-J3PWS2-25M ) –> 30m ( MR-J3PWS2-30M ) –> 40m ( MR-J3PWS2-40M ) – Power supply cable for HG-SR/HG-JR/HG-UR series to MR-J4W2/MR-J4W3 series amplifier — Standard bending life –> 2m ( SC-EPWS2CBL2M-L ) –> 5m ( SC-EPWS2CBL5M-L ) –> 10m ( SC-EPWS2CBL10M-L ) –> 20m ( SC-EPWS2CBL20M-L ) –> 30m ( SC-EPWS2CBL30M-L ) — Long bending life –> 2m ( SC-EPWS2CBL2M-H ) –> 5m ( SC-EPWS2CBL5M-H ) –> 10m ( SC-EPWS2CBL10M-H ) –> 20m ( SC-EPWS2CBL20M-H ) –> 30m ( SC-EPWS2CBL30M-H ) |
