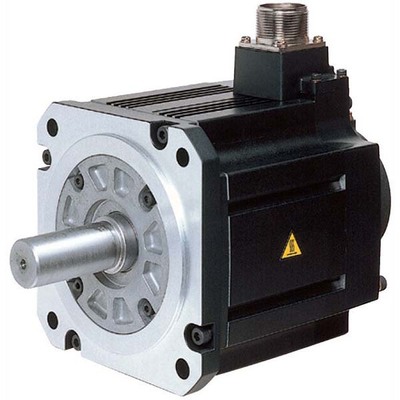

Motor AC Brushless MELSERVO J3 HF-SP81BJ da Mitsubishi Electric, 850W, 1000RPM, Freio, Encoder Absoluto IP67. Ideal para sistemas de automação.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J3 series |
| Sub-range name | HF-SP series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in e/m brake built-in absolute feedback encod. (18-bit) oil seal medium inertia / medium power capacity |
| Supply voltage (AC) | 200Vac class |
| Rated current | 4.5A |
| Rated active power (kW) | 850W / 0.85kW |
| Rotational speed | 1000rpm 1500rpm (maximum) |
| Torque | 8.12Nm nominal |
| Maximum torque | 24.4Nm |
| Moment of inertia | 0.002kg.m2 (20kg.cm2) |
| Mounting mode | 130x130mm flange mounting |
| Degree of protection | IP67 |
| Dimensions | H177.5mm x W130mm x D252mm |
| Net Height (mm) | 177.5 mm |
| Net Width (mm) | 130 mm |
| Net Depth (mm) | 252 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 13.5 A |
| Order code / Manufacturer SKU | HF-SP81BJ |
| Manufacturer product status | Discontinued |
| Benefits | medium inertia two types of the rated speed are available application for material handling systems robots x-y tables |
