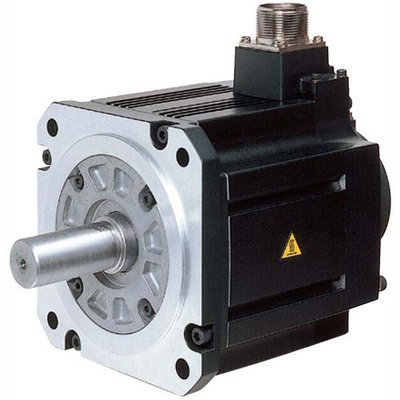

Entre em contato conosco para saber mais sobre o Servo Motor AC Brushless Mitsubishi Electric MELSERVO J3 HF-SP201J, com 2kW de potência, 19.1Nm de torque nominal e velocidade de 1000rpm.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J3 series |
| Sub-range name | HF-SP series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in absolute feedback encod. (18-bit) oil seal medium inertia / medium power capacity |
| Supply voltage (AC) | 200Vac class |
| Rated current | 11A |
| Rated active power (kW) | 2000W / 2kW |
| Rotational speed | 1000rpm 1500rpm (maximum) |
| Torque | 19.1Nm nominal |
| Maximum torque | 57.3Nm |
| Moment of inertia | 0.0075kg.m2 (75kg.cm2) |
| Mounting mode | 176x176mm flange mounting |
| Degree of protection | IP67 |
| Dimensions | H228.9mm x W176mm x D262.5mm |
| Net Height (mm) | 228.9 mm |
| Net Width (mm) | 176 mm |
| Net Depth (mm) | 262.5 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 33 A |
| Order code / Manufacturer SKU | HF-SP201J |
| Manufacturer product status | Discontinued |
| Benefits | medium inertia two types of the rated speed are available application for material handling systems robots x-y tables |
