Documentos
- Mitsubishi Electric – MELSERVO J3 series – Catalogue.pdf
- Mitsubishi Electric – MELSERVO J3 series – LM Linear servo – Catalogue.pdf
Observe que este produto está descontinuado pelo fabricante.
Para mais informações ou para consultar alternativas, entre em contato conosco.
Especificações
| Parâmetro | Valor |
|---|---|

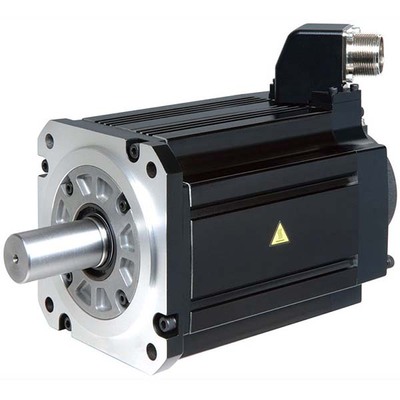

| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J3 series |
| Sub-range name | HF-JP series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in e/m brake built-in absolute feedback encod. (18-bit) oil seal low inertia / medium-large power capacity |
| Supply voltage (AC) | 200Vac class |
| Rated current | 34A |
| Rated active power (kW) | 7000W / 7kW |
| Rotational speed | 3000rpm 5000rpm (maximum) |
| Torque | 22.3Nm nominal |
| Maximum torque | 66.8Nm |
| Moment of inertia | 0.00529kg.m2 (52.9kg.cm2) |
| Mounting mode | 176x176mm flange mounting |
| Degree of protection | IP67 |
| Dimensions | H251.3mm x W176mm x D392mm |
| Net Height (mm) | 251.3 mm |
| Net Width (mm) | 176 mm |
| Net Depth (mm) | 392 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 103 A |
| Order code / Manufacturer SKU | HF-JP703B |
| Manufacturer product status | Discontinued |
| Benefits | well suited for high-throughput and high-acceleration or deceleration operations suited for injection molding machines large press machines food processing machines printing machines |
