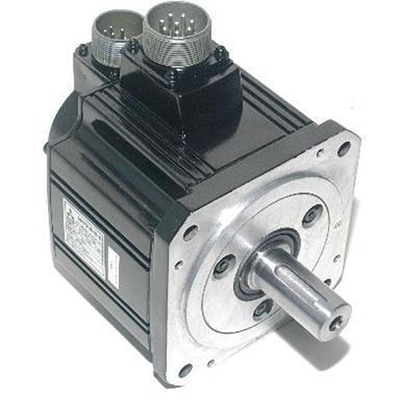

Servo Motor Mitsubishi Electric MELSERVO J2S HC-SFS2024K
Potência: 2kW | Tensão: 400Vca | Torque: 9.55Nm | Rotação: 2000rpm | Encoder Absoluto 17-bit | IP65
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J2S series |
| Sub-range name | HC-SF series |
| Functions | AC brushless rotary servo motor |
| Design | keyed shaft built-in absolute feedback encod. (17-bit) oil seal medium inertia / medium power capacity |
| Supply voltage (AC) | 400Vac class |
| Rated current | 5.4A |
| Rated active power (kW) | 2000W / 2kW |
| Rotational speed | 2000rpm 2500rpm (maximum) |
| Torque | 9.55Nm nominal |
| Maximum torque | 28.5Nm |
| Moment of inertia | 0.00425kg.m2 (42.5kg.cm2) |
| Mounting mode | 176x176mm flange mounting |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Degree of protection | IP65 |
| Dimensions | H230mm x W176mm x D224mm |
| Net Height (mm) | 230 mm |
| Net Width (mm) | 176 mm |
| Net Depth (mm) | 224 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 16.2 A |
| Order code / Manufacturer SKU | HC-SFS2024K |
| Manufacturer product status | Discontinued |
