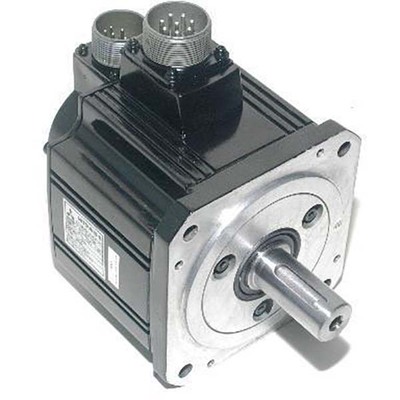

Motor Servo Mitsubishi HC-SFS152B J2S 1.5kW 2000RPM Freio IP65 Este servo motor AC brushless da Mitsubishi Electric, modelo HC-SFS152B, oferece 1.5kW de potência nominal e opera a 2000RPM. Possui freio eletromagnético integrado, encoder absoluto de 17 bits e selo de óleo.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | MELSERVO J2S series |
| Sub-range name | HC-SF series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in e/m brake built-in absolute feedback encod. (17-bit) oil seal medium inertia / medium power capacity |
| Supply voltage (AC) | 200Vac class |
| Rated current | 9A |
| Rated active power (kW) | 1500W / 1.5kW |
| Rotational speed | 2000rpm 3000rpm (maximum) |
| Torque | 7.16Nm nominal |
| Maximum torque | 21.6Nm |
| Moment of inertia | 0.0022kg.m2 (22kg.cm2) |
| Mounting mode | 130x130mm flange mounting |
| Resolution | 17-bit (equivalent to 131072ppr) feedback |
| Degree of protection | IP65 |
| Dimensions | H176mm x W130mm x D258mm |
| Net Height (mm) | 176 mm |
| Net Width (mm) | 130 mm |
| Net Depth (mm) | 258 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 27 A |
| Order code / Manufacturer SKU | HC-SFS152B |
| Manufacturer product status | Discontinued |
