Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |

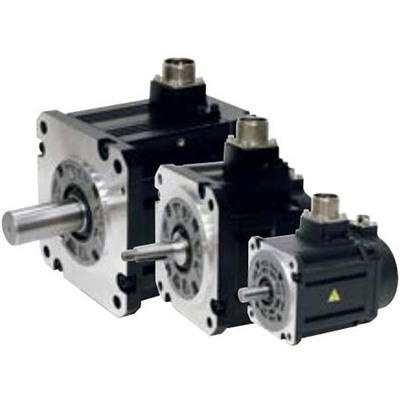

| Main function | AC servo motor |
| Product series / family name | HG series |
| Functions | AC brushless rotary servo motor |
| Design | taper shaft built-in absolute feedback encod. (20-bit) medium inertia |
| Supply voltage (AC) | 200Vac class |
| Rated current | 2A |
| Rated active power (kW) | 500W / 0.5kW |
| Rotational speed | 3000rpm 4000rpm (maximum) |
| Stall torque | 2.9Nm |
| Moment of inertia | 0.000613kg.m2 (6.13kg.cm2) |
| Mounting mode | 130x130mm flange mounting |
| Resolution | 20-bit (equivalent to 1048576 ppr) feedback |
| Degree of protection | IP67 |
| Maximum current | 17 A |
| Order code / Manufacturer SKU | HG54T-D48 |
| Manufacturer product status | Commercialized |
| Benefits | Multi-hybrid drives A line of high-performance multi-hybrid drive units are available The multi-hybrid drive unit drives a maximum of three servo axes and one spindle Supporting the downsizing of units and offering technical advantages |
