Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo motor |
| Product series / family name | HF series |
| Functions | AC brushless rotary servo motor |
| Design | straight shaft built-in e/m brake built-in absolute feedback encod. (1Mppr) medium inertia |
| Supply voltage (AC) | 400Vac class |
| Rated current | 3.4A |
| Rated active power (kW) | 2000W / 2kW |
| Rotational speed | 3000rpm 4000rpm (maximum) |
| Torque | 6.4Nm nominal |
| Maximum torque | 47Nm |
| Stall torque | 13.7Nm |
| Moment of inertia | 0.00383kg.m2 (38.3kg.cm2) |
| Mounting mode | 114.3×114.3mm flange mounting |
| Resolution | 20-bit (equivalent to 1000000ppr) feedback |
| Degree of protection | IP67 |

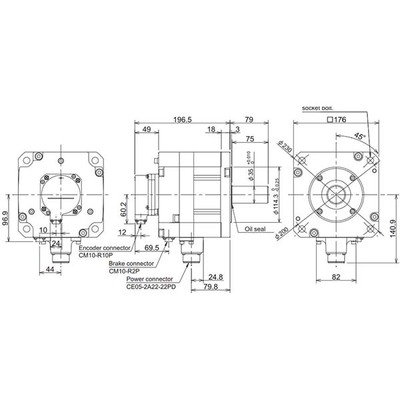

| Dimensions | H228.9mm x W176mm x D275.5mm |
| Net Height (mm) | 228.9 mm |
| Net Width (mm) | 176 mm |
| Net Depth (mm) | 275.5 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Maximum current | 28.5 A |
| Order code / Manufacturer SKU | HF-H204BS-A51 |
| Manufacturer product status | Commercialized |
