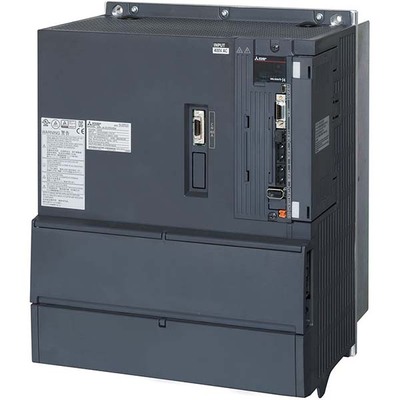

Servo Drive AC MELSERVO J4 Mitsubishi Electric MR-J4-DU45KA4-RJ, 45kW, 380-480Vac, 131A. Segurança e comunicação avançada. Saiba mais.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo drive |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | MR-J4 series |
| Functions | AC motion servo drive / amplifier unit positioning mode sine wave PWM control/current control method point table method Indexer (turret) method program method 2-channel analog monitor Safe torque off (STO) fully closed loop control load-side encoder interface speed control mode torque control mode advanced vibration suppression control II adaptive filter II robust filter auto tuning one-touch tuning tough drive function drive recorder function machine diagnosis function power monitoring function super trace control lost motion compensation |
| Design | safety unit compatibility pwr. supplied by converter unit 2-wire or 4-wire type communication method main circuit power is supplied from the power regeneration converter unit forced ventilation cooling |
| Supply voltage (AC) | 380Vac-480Vac (400V class; 400Vac / 415Vac / 440Vac) |
| Type of network | 3-phase input (3P) |
| Rated current | 131A |
| Rated active power (kW) | 45kW |
| Protection functions | overcurrent shut-off overload shut-off (electronic thermal) servo motor overheat protection encoder fault protection undervoltage protection instantaneous power failure protection overspeed protection excessive error protection |
| Communication protocol | RS-422 RS-485 |
| Digital inputs | 1 x digital input (24Vdc; sink/source) (EM2) 1 x digital input (24Vdc; sink/source) (LSP) 1 x digital input (24Vdc; sink/source) (LSN) 1 x digital input (24Vdc; sink/source) (SON) 1 x digital input (24Vdc; sink/source) (RES) 1 x digital input (24Vdc; sink/source) (PC / ST1 / RS2) 1 x digital input (24Vdc; sink/source) (TL / ST2 / RS1) 1 x digital input (24Vdc; sink/source) (SP1) 1 x digital input (24Vdc; sink/source) (SP2) |
| Digital outputs | 1 x digital output (rly. contact type) (ALM) 1 x digital output (rly. contact type) (ZSP) 1 x digital output (rly. contact type) (TLC / VLC) 1 x digital output (rly. contact type) (INP / SA) 1 x digital output (rly. contact type) (RD) |
| Analog inputs | 1 x analog input (0-10Vdc) (TLA / TC) 1 x analog input (-10…+10Vdc) (VC / VLA) |
| Analog outputs | 1 x analog output (-10…+10Vdc) (MO1) 1 x analog output (-10…+10Vdc) (MO2) |
| Degree of protection | IP20 |
| Dimensions | H380mm x W300mm x D300mm |
| Net Height (mm) | 380 mm |
| Net Width (mm) | 300 mm |
| Net Depth (mm) | 300 mm |
| Ambient air temperature for operation | 0…+55 °C |
| Ambient air temperature for storage | -20°C…+65 °C |
| Power consumption | (drive auxiliary power consumption) 45 W |
| Order code / Manufacturer SKU | MR-J4-DU45KA4-RJ |
| Manufacturer product status | Commercialized |
| Equivalent to | MRJ4DU45KA4RJ |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC EN61800-5-2 EN61800-5-1 EN61800-3 EN ISO 13849-1 PLe Cat3 EN62061 SILCL3 IEC61508-5-2 EN50581 UL508C CSA KC EAC |
| Benefits | high-speed serial communication A/B/Z-phase differential input signal |
| Recommended accessories | compatible with servo motors HG-JR45K1M4 (85A) |
