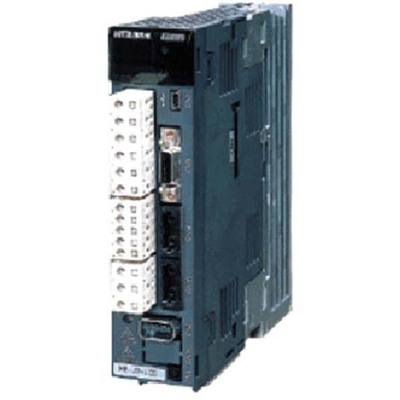

Servo Drive AC MELSERVO J3 Mitsubishi MR-J3-20B 200W 200-230Vac
COTAÇÃO
Servo Drive AC MELSERVO J3 Mitsubishi MR-J3-20B 200W 230V
Especificações
Parâmetro
Valor
Primary brand
Mitsubishi Electric
Main function
AC servo drive
Product series / family name
MELSERVO J3 series
Sub-range name
MR-J3 series
Functions
AC motion servo drive / amplifier positioning mode sine wave PWM control/current control method
Design
built-in dynamic brake built-in regenerative resistor natural cooling SSCNET III/H
Supply voltage (AC)
200Vac-230Vac (200V class; 220Vac / 230Vac)
Type of network
Single-phase input (2P) or 3-phase input (3P)
Rated current
1.5A
Rated active power (kW)
200W / 0.2kW
Protection functions
overcurrent shut-off regeneration overvoltage shut-off overload shut-off (electronic thermal) servo motor overheat protection encoder fault protection regeneration fault protection undervoltage/sudden power outage protection overspeed protection excessive error protection
Digital inputs
1 x digital input (24Vdc; sink/source) (EM1) 1 x digital input (24Vdc; sink/source) (DI1) 1 x digital input (24Vdc; sink/source) (DI2) 1 x digital input (24Vdc; sink/source) (DI3)
Digital outputs
1 x digital output (rly. contact type) (ALM) 1 x digital relay output (MBR) 1 x digital output (rly. contact type) (INP)
Analog outputs
1 x analog output (-10…+10Vdc) (MO1) 1 x analog output (-10…+10Vdc) (MO2)
Dimensions
H168mm x W40mm x D135mm
Net Height (mm)
168 mm
Net Width (mm)
40 mm
Net Depth (mm)
135 mm
Ambient air temperature for operation
0…+55 °C
Ambient air temperature for storage
-20°C…+65 °C
Current consumption
1.5A input
Power consumption
(drive auxiliary power consumption) 30 W
Technical compatibility with
HF-KP series HF-MP series
Order code / Manufacturer SKU
MR-J3-20B
Manufacturer product status
Discontinued
Compliant with standard(s)
CE marking cULus TUV Rheinland EN UL RoHS
Benefits
high-speed serial communication
