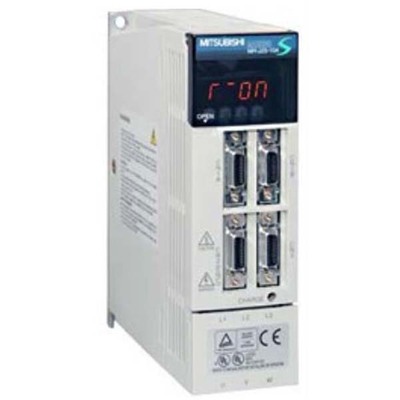

Este servo drive AC MELSERVO J2S da Mitsubishi Electric (SKU MR-J2S-37KA4) possui 37kW de potência e opera em 380-480V trifásico. É um componente de controle de movimento com proteção e entrada analógica.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | AC servo drive |
| Product series / family name | MELSERVO J2S series |
| Sub-range name | MR-J2 series |
| Functions | AC motion servo drive / amplifier sine wave PWM control/current control method speed control mode torque control mode |
| Design | external pwr. suppl. forced ventilation cooling |
| Supply voltage (AC) | 380Vac-480Vac (400V class; 400Vac / 415Vac / 440Vac) |
| Type of network | 3-phase input (3P) |
| Rated active power (kW) | 37kW |
| Protection functions | overcurrent shut-off regeneration overvoltage shut-off overload shut-off (electronic thermal) servo motor overheat protection encoder fault protection regeneration fault protection undervoltage/sudden power outage protection overspeed protection excessive error protection |
| Communication protocol | No communication interface |
| Digital inputs | 1 x digital input (24Vdc; sink/source) (EMG) 1 x digital input (24Vdc; sink/source) (LSP) 1 x digital input (24Vdc; sink/source) (LSN) 1 x digital input (24Vdc; sink/source) (SON) 1 x digital input (24Vdc; sink/source) (RES) 1 x digital input (24Vdc; sink/source) (PC / ST1 / RS2) 1 x digital input (24Vdc; sink/source) (TL / ST2 / RS1) 1 x digital input (24Vdc; sink/source) (SP2) |
| Digital outputs | 1 x digital output (rly. contact type) (ALM) 1 x digital output (rly. contact type) (ZSP) 1 x digital output (rly. contact type) (TLC / VLC) |
| Analog inputs | 1 x analog input (0-10Vdc) (TLA / TC) 1 x analog input (-10…+10Vdc) (VC / VLA) |
| Resolution | 17-bit / 131072ppr encod. feedback input |
| Dimensions | H500mm x W450mm x D300mm |
| Net Height (mm) | 500 mm |
| Net Width (mm) | 450 mm |
| Net Depth (mm) | 300 mm |
| Ambient air temperature for operation | 0…+55 °C |
| Ambient air temperature for storage | -20°C…+65 °C |
| Power consumption | (drive auxiliary power consumption) 50 W |
| Technical compatibility with | HA-LFS series |
| Order code / Manufacturer SKU | MR-J2S-37KA4 |
| Manufacturer product status | Discontinued |
| Benefits | The servo amplifier’s main circuit pwr. is supplied from the converter unit. |
