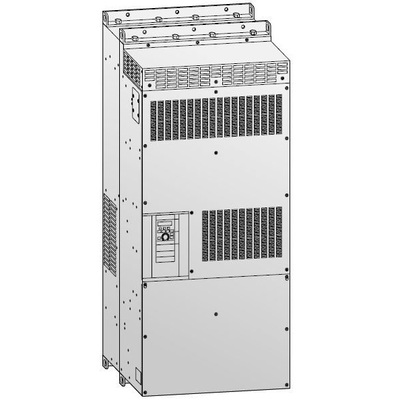

Retificador/Conversor Mitsubishi Electric FR-CC2-H500K-60P 500kW
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Rectifier |
| Product series / family name | FREQROL FR-CC2 series |
| Functions | Rectifier / Converter unit DC reactor built-in |
| Design | built-in DC reactor conformal coating parallel operation Forced air cooling |
| Supply voltage (AC) | 380Vac-500Vac (400Vac / 415Vac / 480Vac) |
| Type of network | 3-phase/3P |
| Rated current | 962A |
| Rated active power (kW) | 500kW |
| Digital inputs | 1 x digital input (source/sink) (RES) 1 x digital input (source/sink) (OH) 1 x digital input (source/sink) (RDI) |
| Digital outputs | 1 x digital output (SPDT (Single Pole Double Throw contact A1/B1/C1) (programmable) 1 x digital output (sink/source open collector transistor) (RDA) 1 x digital output (sink/source open collector transistor) (RDB) 1 x digital output (sink/source open collector transistor) (RSO) 1 x digital output (sink/source open collector transistor) (IPF) 1 x digital output (sink/source open collector transistor) (FAN) |
| Chemical resistance | Chemical resistance (circuit board coating – IEC60721-3-3 3S2 3C2) |
| Order code / Manufacturer SKU | FR-CC2-H500K-60P |
| Manufacturer product status | Commercialized |
| Equivalent to | FRCC2H500K60P |
| Compliant with standard(s) | IEC60721-3-3 (3S2; 3C2) |
