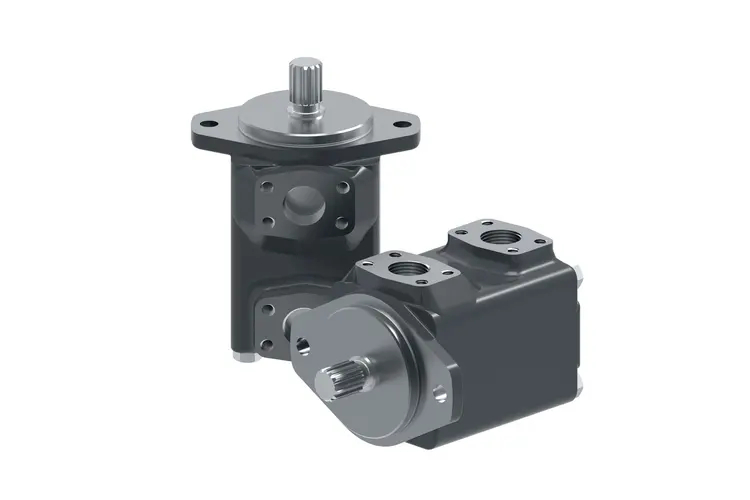

Motor Hidráulico de Palhetas Danfoss – Potência, Eficiência e Baixa Vibração

O motor hidráulico de palhetas Danfoss é a escolha ideal para aplicações industriais que exigem torque consistente, rotação variável e longa vida útil. Clique e solicite um orçamento personalizado agora mesmo.

Por que escolher o Motor de Palhetas Danfoss?

• Confiabilidade comprovada em campo, mesmo sob uso intensivo.
• Eficiência de até 86 % graças ao design exclusivo de placas de pressão alternadas.
• Operação reversível apenas invertendo o fluxo de óleo.
• Funciona em série sem perda de desempenho, com portas de entrada e saída pressurizadas simultaneamente.
• Cartucho substituível sem remover o motor do equipamento, reduzindo tempo de parada.
• Alta rotação e pressão para demandas severas.

Especificações Técnicas

• Deslocamento volumétrico: 44 cm³ – 317 cm³ (2,7 in³ – 19,3 in³)
• Pressão contínua: até 172 bar (2 500 psi)
• Velocidade nominal: até 3 000 rpm em pressão máxima; picos de 4 000 rpm sob carga leve
• Compatível com diferentes fluidos, incluindo misturas água‑glicol

Aplicações Típicas

Ideal para elevadores scraper, transmissões hidrostáticas, guinchos, atuadores auxiliares e outras máquinas que necessitam de torque elevado com manutenção simplificada.

Precisa de Ajuda para Selecionar o Modelo Ideal?

Nossa equipe técnica está pronta para indicar o motor Danfoss mais adequado ao seu projeto. Peça seu orçamento hoje mesmo!

Perguntas Frequentes

Qual a diferença entre motor de palhetas e motor de pistões?

Os motores de palhetas são mais silenciosos, apresentam pulsação reduzida e custo‑benefício superior em baixas e médias pressões, enquanto motores de pistões suportam pressões ainda mais altas.

Posso usar água‑glicol como fluido hidráulico?

Sim. O motor de palhetas Danfoss foi projetado para operar com água‑glicol sem comprometer a eficiência ou a durabilidade.

O motor é reversível?

Sim. A reversão ocorre simplesmente invertendo o sentido do fluxo de óleo, sem alterações físicas no sistema.

Veja também nossa linha completa de motores hidráulicos Danfoss.



Descrição	Referência	Código do Modelo
SL7-L230-G Tower L,Green,LED 230V	Y7-171475	N/A
SL7-L230-R Tower L, Red,LED 230V	Y7-171474	N/A
V20F-1D6S-38D-5H-22L	H-9222	N/A
SAE_FLANGE_KIT_Rc3_UNC	FLST-80U-009	N/A
SAE_FLANGE_KIT_Rc2_UNC	FLST-50U-009	N/A
SAE_FLANGE_2_INCH_THD	FLST-50-009	N/A
SAE_FLANGE_KIT_Rc1.5_UNC	FLST-40U-009	N/A
Shipping Board, 4 IN Pipe Flange	998710	N/A
SHIPPING BOARD, 3″ PIPE FLANGE	998708	N/A
SP SHIPPING BOARD NONKEY	998704SP	N/A
SHIPPING BOARD 1.25Pipe Flange	998704	N/A
CKIT ORING 45V/VQ VITON	998651	N/A
PIN, STRAIGHT DOWEL PLANT CLEANUP	9603	N/A
FB A 10 FT BRACKET KIT 126315 12-PER KIT	942471	N/A
SHIM KIT	941038	N/A
FB C 10 FT BRACKET KIT 205077 6 PER-KIT	941008	N/A
SCREW, .500-13X10.5 HHC	937007	N/A
BRKT STUD 2.25 X 1/2-13	932827	N/A
PACKING PREFORMED (70D	932664	N/A
PACKING PREFORMED (BROW	932663	N/A
KEY, SQ 7.94X7.94X50.80	928541	N/A
PLUG(SAME 16096-112)CAPPLUG RPO-112	928505	N/A
CARTRIDGE KIT V20++ 9	923462	N/A
C KIT 35M115 IN LB	923167	N/A
C KIT 35M95 IN LB	923166	N/A
C KIT 35M80 IN LB	923165	N/A
VANE KIT 35M	923164	N/A
SEAL KIT 35M	923163	N/A
C KIT 25M65 IN LB	923162	N/A
C KIT 25M55 IN LB	923161	N/A
C KIT 25M42 IN LB	923160	N/A
C KIT 25M 30 LT45	923159	N/A
VANE KIT 25M	923158	N/A
SEAL KIT 25M	923157	N/A
C KIT 45M130 IN LB	923111	N/A
C KIT 45M155 IN LB	923110	N/A
C KIT 45M185 IN LB	923109	N/A
VANE KIT 45M	923108	N/A
SEAL KIT 45M	923106	N/A
C KIT 50M300 IN LB	923101	N/A
C KIT 50M255 IN LB	923100	N/A
C KIT 50M220 IN LB	923099	N/A
VANE KIT 50M	923098	N/A
SEAL KIT 50M	923096	N/A
SEAL KIT M2	922832	N/A
SEAL KIT F8-35M	920180	N/A
SEAL KIT	919896	N/A
RING 9T GPM V20 0 030CC	913521	N/A
RING 8T GPM V20 0 026CC	913520	N/A
RING 7T GPM V20 023CC	913519	N/A
RING 6T GPM V20 0 020CC	913518	N/A
V 200 C. KIT 5 GPM	912064	N/A
Key	88678-P	N/A
INLET HOUSING	883321	N/A
F8 25M30A 1C20	876376-C	N/A
F8 25M30A 1C20	876376-3	N/A
F8-25M30A-1×20	876376	N/A
26M30A 11C20	876330-3	N/A
SEAL KIT F8 25M	876274	N/A
SLEEVE, ROTOR	860354	N/A
_SHPPG PARTS INLET COVER	860133	N/A
Vane Pump Insp & Rework charges-HALDIA	837171	N/A
F3 26M65A 1C20	739AR00001A	N/A
25M65A 11C20 151	729AR00005A	N/A
25M55A 1C20-136	729AR00001A	N/A
F8-35M115AM-13C20-150 PAINT CAT YELLOW	727AR00003A	N/A
F8-35M115AM-13C20-128	727AR00001A	N/A
45VQ57A 1A20	629213-1	N/A
SCREW	6043470-001-P	N/A
SCREW 45V 1/4-20 X 3.125	6043470-001	N/A
OUTLET BODY SUBDECK	6039757-001	N/A
SHIPPING PTS(BOLTS)	6039754-001	N/A
SP COUPLER (FROM 49989 91-001)	5995693-001SP	N/A
COUPLER (MAKE FROM 4998991-001)	5995693-001	N/A
SD COMMON PARTS V2010 NF 063 SUFFIX	5991801-001	N/A
C KIT F3 25M65 IN LB RG	5990277-001	N/A
COVER 35M METRIC	5987534-001	N/A
BODY 35M METRIC	5987533-001	N/A
NAMEPLATE	594329	N/A
RING,BACKUP RETAINER	588509	N/A
RETAINER-PACKING BACK-UP	588508	N/A
RETAINER-PACKING BACK-UP	588507	N/A
RETAINER-PACKING BACK-UP	588506	N/A
PACKING, PREFORMED	586592	N/A
PACKING, PREFORMED	586590	N/A
ORING	586589	N/A
O RING “F3”	586588	N/A
PACKING, PREFORMED	586586	N/A
ORING	586585	N/A
ORING	586583	N/A
ORING	586582	N/A
O-RING	586581	N/A
WASHER	582519	N/A
RING 14 GPM 25VQ 045CC	579742	N/A
O RING VITON	579392	N/A
O RING VITON	579389	N/A
O RING BUNA 253	579385	N/A
O-RING BUNA 247	579377	N/A
O RING BUNA 238	579375	N/A
O-RING BUNA 231	579373	N/A
F8 35M95A 11A20	576942-1	N/A
F8-35M95A-11×20	576942	N/A
Screw, Hex 5/8-11 X 9.50	576924	N/A
F8 45M130A 11C20	576263-3	N/A
F8 25M65A 11C20	574999-C	N/A
F8 25M65A 11C20	574999-3	N/A
F8-25M65A-11×20	574999	N/A
F8 25M65A 1C20	574998-C	N/A
F8 25M65A 1C20	574998-3	N/A
F8-25M65A-1×20	574998	N/A
F8 25M55A 11C20	574997-C	N/A
F8 25M55A 11C20	574997-3	N/A
F8-25M55A-1×20	574996	N/A
F8 25M42A 11C20	574995-C	N/A
F8-25M42A-11×20	574995	N/A
F8 25M42A 1C 20	574994-C	N/A
F8-25M42A-1×20	574994	N/A
45M130A 1C 20 141	574899-C	N/A
RING-SPACER	574489	N/A
6 GPM ROTATING GROUP	567663	N/A
14VC500 SIDE PLATE	515276-XR	Alternate part number: 515276
PACKING, PREFORMED	513408	N/A
C KIT 45M185 IN LB CAT	502980	N/A
PLATE P 2525VQ	502401-XR	N/A
BRG, CARRIER S/A 45VPF REPLACE 875594-S	4998060-003	N/A
BRG, CARRIER S/A 35VPF REPLACE 877128-S	4998060-002	N/A
BEARING, CARRIER S/A 25VPF WAS 875584-S	4998060-001	N/A
CAPLUG, 1-1/4-NPT P-108	4996681-001	N/A
CAPLUG 1.0 NPT P-88H NIAGARA Nr TH-11	4996680-001	N/A
SHAFT Nr1 KEYED SAE 1.50 45VMQ	4993353-001	N/A
PLATE P 20VQ-30 W/B	497134	N/A
RELIEF VALVE 2150 PSI	478164	N/A
46M155A 175C20	477973-3	N/A
PIN, SPRING COILED	471442	N/A
F8 35M80A 11C 20	452017-C	N/A
F8 35M80A 11C20	452017-3	N/A
F8-35M80A-11×20	452017	N/A
HX HD 1/2-13UNCx6.25	45015	N/A
PACKING, PREFORMED	435714	N/A
F8-35M115A-11×20	435496	N/A
SEAL PAK 35VQ F3	433766	N/A
SEAL PAK (F3) (SERVICE) 25VQ	433764	N/A
_RETAINER AND O RING	433763	N/A
45VQ42A 1A20	432647-1	N/A
Screw, Hex 3/8-16 X 3.75	432511	N/A
Screw, Hex 3/8-16 X 3.25	432509	N/A
HF_10_SIZE_12EL_COIL	4305712	N/A
SEAL, (F3)	429285	N/A
SEAL, (F10)	429284	N/A
SEAL, PLAIN ENCASED	429283	N/A
SEAL, (F10)	429282	N/A
SEAL, (F10)	429281	N/A
COVER CASTING	429119-C	N/A
_SHIPPING PARTS-OUTLET B	429118	N/A
WASHER	427700	N/A
COUPLING	426770	N/A
SP GASKET (MADE 3 TIMES/YEAR)	423617SP	N/A
GASKET (MADE 3 TIMES/YEAR)	423617	N/A
FB C 10 FOOT BRACKET KIT205077 1-PER	422584	N/A
FB B 10 FOOT BRACKET KIT199491 1-PER	422583	N/A
FB A 10 FOOT BRACKET KIT126315 1-PER	422582	N/A
PIN	422207	N/A
PIN	422206	N/A
45VQ60A 1A20	421967-1	N/A
F3 25VQ21A 1A20	421649-1	N/A
45VQ60A 11C20	420618-3	N/A
45VQ42A 11C20	420616-3	N/A
_SHIPPING PTS 1 OUTLET A	420486	N/A
HX HD 5/8-11UNCx6.50	42023	N/A
RING-SEALING	419675	N/A
RING-SEALING	419674	N/A
RING-SEALING	419673	N/A
RING-SEALING	419672	N/A
BALL	419580	N/A
PIN	418108	N/A
COVER VANE MOTOR	417909	N/A
SUPPORT PLATE INLET	417758	N/A
FLEX SIDE PLATE STAMPING	417483	N/A
36WCBD3 OUTER SUPPORT RING	417435-XR	Alternate part number: 417435
SCREW	417435-P	N/A
SCREW 10-24 X 2.375	417435	N/A
20VQ C KIT 12GPM LH	416428L	N/A
51VC1600 SOL SIDE PLATE TORQUE BAR BUSH	416426-XR	Alternate part number: 416426
SCREW 20V/VQ Nr8-36 X 2.0	416426	N/A
O RING 35VQ	416417	N/A
RING, RETAINER OIL SEAL	415731	N/A
FLEX PLATE STAMPING 25VQ	415520-S1	N/A
RING, RETAINER OIL SEAL	415375	N/A
SCREW 25VQ 10-32X2.5 SAME 16148-322	413834	N/A
FLEX PLATE STAMPING 35VQ	413405-S1	N/A
BODY 35V	413016L	N/A
RING, RETAINER OIL SEAL	412013	N/A
O/L SUPP PLATE 25/38	412003-S	N/A
SQ RING-PHOSPHATING	411492-PH	N/A
RING 4.5 GPM V100	411492	N/A
SCREW 35VQ 1/4-28 X 2.9	410609	N/A
SP SPACER (525 BOX)	410053SP	N/A
SPACER (525 BOX)	410053	N/A
36M80A2 1C20	407453-3	N/A
COVERRAM P NO 6826	404513	N/A
ROTOR SLOT MILLING	403539-S2-A	N/A
ROTOR SLOT MILLING	402690-S2-A	N/A
262320-ORING(B MOUNTEND)ID3.987″X.103C/S	401525	N/A
RING, RET OIL SEAL 20VQ	395562	N/A
SHAFT SEAL25V (F3=429286)	394976	N/A
SEAL 35-VPF-VMQ 45V 45M	394974	N/A
SEAL, SHAFT	394973	N/A
_SHAFT 86	394294	N/A
KEY, SHAFT Nr86	393536	N/A
F8 45M185A 11C20 128 CAT ONLY	391332-3	N/A
SPRING	389460	N/A
SEAL	388205	N/A
SCREW	38523-P	N/A
46M185A 11C 20	381995-C	N/A
46M185A 11C20	381995-3	N/A
HSG-4535V/VQ	380965L	N/A
SCREW 45VQ 1/4-28 X 3.5	380109	N/A
O- RING(NBR-70) ID-3.987″xC/S-0.103″	375422	N/A
SHAFT-NO. 11 DRIVE	374339	N/A
51M300A 11C 20 114	373170-C	N/A
51M300A 11C20 114	373170-3	N/A
26M55A 11C 20	373168-C	N/A
26M55A 11C20	373168-3	N/A
26M55A 11×20	373168	N/A
25M35A 1C 20	373164-C	N/A
25M35A 1C20	373164-3	N/A
36M80A 11C 20	373154-C	N/A
36M80A 11C20	373154-3	N/A
36M80A 11×20	373154	N/A
26M55A 1C 20	373153-C	N/A
26M55A 1C20	373153-3	N/A
26M55A 1×20	373153	N/A
26M42A 1C 20	373152-C	N/A
26M42A-1A20	373152-A	N/A
26M42A 1C20	373152-3	N/A
26M42A 1A20	373152-1	N/A
26M42A 1×20	373152	N/A
COVER-VANE PUMP (MACH.)	372863	N/A
WASHER	370084	N/A
BUSHING	370072	N/A
26M65A 1C 20	361184-C	N/A
26M65A 1A20	361184-A	N/A
26M65A 1C20	361184-3	N/A
26M65A 1×20	361184	N/A
26M30A 1C 20	361173-C	N/A
26M30A 1C20	361173-3	N/A
26M30A 1×20	361173	N/A
25M42A 1C 20	361166-C	N/A
25M42A 1A 20	361166-A	N/A
25M42A 1D20	361166-4	N/A
25M42A 1C20	361166-3	N/A
25M42A 1A20	361166-1	N/A
25M42A 1×20	361166	N/A
25M55A 1C 20	361158-C	N/A
25M55A 1A 20	361158-A	N/A
25M55A 1C20	361158-3	N/A
25M55A 1A20	361158-1	N/A
25M55A 1×20	361158	N/A
BODY AND BUSHING	357292	N/A
25M65A 11C 20	355161-C	N/A
25M65A 11A20	355161-A	N/A
25M65A 11A20 LH	355161-5	N/A
25M65A 11C20	355161-3	N/A
25M65A 11A20	355161-1	N/A
25M65A 11×20	355161	N/A
SEAL, HIGH PRESSURE	355147	N/A
“O” RING NBR ID 3.237″X0.103″ C/S	353409	N/A
PIN LT45	351963	N/A
GASKET TO SUIT V SERIES SWITCH	34GASKET	N/A
GUIDE	347397	N/A
36M95A 11C20	346691-C	N/A
36M95A 11C20	346691-3	N/A
36M95A 11×20	346691	N/A
51M255A 11C 20 114	346686-C	N/A
51M255A 11C20 114	346686-3	N/A
SPRING	345262	N/A
26M42A2 1C20	344240-3	N/A
25M42A2 1C20	342009-3	N/A
C KIT 25M35 IN LB RG	342001	N/A
26M42A 11C20	341996-C	N/A
26M42A 11C20	341996-3	N/A
26M42A 11×20	341996	N/A
SHAFT	331783	N/A
25M65A 1C 20	327627-C	N/A
25M65A 1A 20	327627-A	N/A
25M65A 1C20	327627-3	N/A
36M95A 1C 20	327626-C	N/A
36M95A 1C20	327626-3	N/A
35M115A2 11C20	327606-3	N/A
36M80A 1C 20	327602-C	N/A
36M80A 1C20	327602-3	N/A
35M80A2 1C20	327601-3	N/A
46M130A 1C20	327599-3	N/A
RING 12 GPM -OD GRINDING	326984-S2	N/A
RING 12 GPM	326984-S	N/A
46M155A 11C20	322470-C	N/A
46M155A 11C20	322470-3	N/A
46M-155-11-A-20	322470-1	N/A
50M220A 1C20 114	322446-C	N/A
50M220A 1C20 114	322446-3	N/A
46M185A 1C 20	318844-C	N/A
46M185A 1C20	318844-3	N/A
46M155A 1C 20	317274-C	N/A
46M155A 1C20	317274-3	N/A
50M255A 1C 20 114	316059-C	N/A
50M255A 1C20 114	316059-3	N/A
50M300A 1C 20 114	313472-C	N/A
50M300A 1C20 114	313472-3	N/A
50M300A 1A20 114	313472-1	N/A
45M155A2 1C20	313467-3	N/A
26M65A 11C20	313463-C	N/A
26M65A 11C20	313463-3	N/A
25M55A 11D 20	313459-D	N/A
25M55A 11C 20	313459-C	N/A
25M55A 11C20	313459-3	N/A
25M55A 11×20	313459	N/A
25M42A 11C 20	313457-C	N/A
25M42A 11C20	313457-3	N/A
25M42A 11B20	313457-2	N/A
25M42A 11A20	313457-1	N/A
25M42A 11×20	313457	N/A
25M30A 1C 20 117	313454-C	N/A
25M30A1x20117	313454	N/A
C KIT 25M55 IN LB RG	313451	N/A
C KIT 25M42 IN LB RG	313450	N/A
C KIT 25M30 IN LB RG	313449	N/A
_COVER AND SHIPPING PART	313447	N/A
RING 42 INCH LB 25M	313426	N/A
SHAFT, Nr11 25M	312154	N/A
SHAFT, Nr1 25M	312153	N/A
ADAPTER-HUB	312152	N/A
PRESSURE PLATE 25M	312144-S1	N/A
PRESSURE PLATE 25M	312144	N/A
PRESSURE PLATE 25M	312143-S1	N/A
COVER 25M	312140-S1	N/A
COVER-VANE MOTOR	312140	N/A
BODY 25 M	312139-S	N/A
BODY-VANE MOTOR	312139	N/A
PACKING, PREFORMED	312092	N/A
36M115A 11C 20	312072-C	N/A
36M115A 11C20	312072-3	N/A
36M115A 11×20	312072	N/A
36M115A 1C 20	312066-C	N/A
36M115A 1C20	312066-3	N/A
35M115A 1C 20	312065-C	N/A
35M115A 1C20	312065-3	N/A
35M115A 1A20	312065-1	N/A
35M95A 1C 20	312064-C	N/A
35M95A 1C20	312064-3	N/A
35M95A 1B20	312064-2	N/A
35M80A 1C 20	312063-C	N/A
35M80A 1A20	312063-A	N/A
35M80A 1C20	312063-3	N/A
35M80A 1A20	312063-1	N/A
35M115A 11C 20	312062-C	N/A
35M115A 11A20	312062-A	N/A
35M115A 11C20	312062-3	N/A
35M115A 11A20	312062-1	N/A
35M115A 11×20	312062	N/A
35M80A 11C 20	312061-C	N/A
35M80A 11C20	312061-3	N/A
35M80A 11×20	312061	N/A
C KIT 35M80 IN LB RG	312060	N/A
C KIT 35M 115 IN LB RG	312059	N/A
ADAPTER-HUB	312056	N/A
BODY-VANE MOTOR	312055	N/A
COVER-VANE PUMP	312054	N/A
BODY 50M	311162	N/A
35M95A 11C 20	310886-C	N/A
35M95A-11A-20	310886-A	N/A
35M95A 11D20	310886-4	N/A
35M95A 11C20	310886-3	N/A
35M95A 11A20	310886-1	N/A
35M95A 11×20	310886	N/A
C KIT 35M95 IN LB RG	310885	N/A
SHAFT Nr11 35M	310873	N/A
SHAFT, Nr1 35M	310872	N/A
RING-300 INCH LB 50M	310865	N/A
SEAL,HIGH PRESSURE LT45	310427	N/A
BEARING,BALL DBL ROW 46M	309926	N/A
45M185A 1C 20	309419-C	N/A
45M185A 1C20	309419-3	N/A
45M155A 1C 20	309418-C	N/A
45M155A 1C20	309418-3	N/A
RING 155 INCH LB 45M	309416	N/A
C KIT 45M185 IN LB RG	309412	N/A
C KIT 45M155 IN LB RG	309411	N/A
C KIT 45M130 IN LB RG	309410	N/A
_NO 1 SHAFT AND SQUARE K	309408	N/A
_COVER AND SHIPPING PART	309407	N/A
SHAFT Nr11 45M	309405	N/A
SHAFT, Nr1 45M	309404	N/A
45M IO PLATE W S/A	309403	N/A
IO PLATE P 45M	309402	N/A
45M185A 11C 20	309398-C	N/A
45M185A 11A20	309398-A	N/A
45M185A 11C20	309398-3	N/A
45M185A 11A20	309398-1	N/A
45M155A 11A20	308840-A	N/A
45M155A 11C20	308840-3	N/A
45M155A 11A20	308840-1	N/A
45M130A 11C 20	308839-C	N/A
45M130A 11C20	308839-3	N/A
50M255A-11C20-114	308836-C	N/A
50M255A 11C20 114	308836-3	N/A
50M220A 11A20 114	308835-1	N/A
C KIT 50M220 IN LB RG	308833	N/A
45M130A 1C 20	308830-C	N/A
45M130A 1C20	308830-3	N/A
50M300A 11C20 114	308821-C	N/A
50M300A 11C20 114	308821-3	N/A
RING 130 INCH LB 45M	308816	N/A
RING 185 INCH LB 45M	308815	N/A
COVER-VANE MOTOR	308814	N/A
BODY-VANE MOTOR	308813	N/A
BRAKE VALVE BRACKET 32 DCB	308681-XR	Alternate part number: 308681
CTR INLET B0DY AND BUSHI	308681	N/A
14E475-16E475 FRICTION B	307448-XR	Alternate part number: 307448
ROTOR RM2	307448-S2	N/A
ROTOR MACHINING 1	307448-S1	N/A
ROTOR HT	307448-HT	N/A
14E475-16E475 FRICTION B	307448	N/A
C KIT 50M255 IN LB RG	307231	N/A
C KIT 50M300 IN LB RG	307230	N/A
SHAFT Nr11 50M	307224	N/A
ROTOR 45M	307209	N/A
SCREW	298167	N/A
SCREW, CAP, SOCKET HEAD(1960 SERIES)	298148	N/A
SCREW, CAP, SOCKET HEAD	298147	N/A
50V109A 1A11 130 SC	295913-1S	N/A
Screw, Hex 5/8-11 X 3.25	295414	N/A
SCREW, HEX HEAD CAP	295344	N/A
BEARING	295156	N/A
12-158 ORING	294660	N/A
PISTON	290057	N/A
SHAFT BEARING	284397	N/A
PIN 35V .251 X 3.38	280031	N/A
SEAL	279499	N/A
ORING PREFORMED 25M	278708	N/A
RELIEF VALVE 1850 PSI	272080	N/A
235 RETAINER BACKUP	271803	N/A
BACK UP RING	271795	N/A
RETAINER, PACKING BACK UP	271794	N/A
226 RETAINER BACKUP	271791	N/A
BACK UP RING (CVI)	271790	N/A
RETAINER, PACKING BACK-U	271735	N/A
RETAINER 024 BACKUP	271699	N/A
COVER 4535VQ	270679L	N/A
ROTOR FOR FACE GRINDING	270597-S2	N/A
ROTOR BLAN K25 VQ	270597-S1	N/A
SCREW, HEX HEAD CAP	269879	N/A
SHAFT SEALV10.VTM27 see922904	263585	N/A
O’RING (ID-6.484″ x C/S-0.139″) VITON	262439	N/A
ORING -(VITON) (ID3.109″ x 0.139″ C/S)	262414	N/A
O RING-VITON ID2.984″ X C/S 0.139″	262413	N/A
13-232 ORING	262411	N/A
O-RING (VITON) ID 1.984″ x C/S 0.139″	262405	N/A
SCREW	255837	N/A
CYLINDER ,S3000B-35-610-50-AU000	255335-610	N/A
SHAFT	254848-HT	N/A
_NO. 1 SHAFT AND KEY	252615	N/A
BACK UP RING	244670	N/A
KEY-SHAFT Nr86.375 X .375 X 2.0	239751	N/A
RING, LOCKING (STEEL)	237832	N/A
RING-RETAINING INTERNAL use 115015-078	237807	N/A
Screw, Hex 3/4-10 X 8.25	237138	N/A
_1 SHAFT AND KEY	233416	N/A
SEAL, OIL V300	232855	N/A
RELIEF VALVE 2000 PSI	232799	N/A
CONTROL VLVE S/A LT45	232797	N/A
RELIEF VALVE 1250 PSI	232796	N/A
O-RING 0 25 DIA 0 5 0 OD 13-PARKER 12500	230853-3-CP3341	N/A
PIN 25V .1885 X 2.75	229662	N/A
SHAFT SEAL V210 3F3=279499) see 922733	229235	N/A
SCREW	227407SP	N/A
SCREW	227407	N/A
PIN 50V .251 X 4.60	225800	N/A
WIPER FELT	224476	N/A
COVER 25V	224309L	N/A
RING-RETAINING (INTERNAL	223172	N/A
PIN 45V .251 X 3.88	220888	N/A
PLUG RV	219107	N/A
STEEL RING 11 GPM MACHINING	218320-S1	N/A
STEEL RING-PHOSPHATING	218320-PH	N/A
Key	217596-P	N/A
KEY .312X.312X1.125	217596	N/A
ROTOR MACHINING 1	215043-S1	N/A
FILTER	213984	N/A
PLUG RV	213927	N/A
LOCKING RING, STEEL	209890	N/A
SCREW, HEX. CAP(FINISHED	205436	N/A
RING FORGING 25VQ	203178-S1	N/A
RING FORGING 25M	203169-S1	N/A
RING FORGING 25M	203169-C	N/A
WIPER	200465	N/A
12-239 ORING, 90 DURO	200159	N/A
O RING-NBR (ID-2.487″xC/S-0.103″)	199823	N/A
ORING (NBR-70)-ID 61.60 x 2.62C/S	199822	N/A
O-RING (ID36.17 x CS-2.62) NBR	199816	N/A
WIPER	197865	N/A
SEAL 45VPF-VMQ 46-51M	197412	N/A
WIPER	197411	N/A
SP Washer (DWNG -194878)	194878SP	N/A
Washer (DWNG – 194878)	194878	N/A
WASHER	193220	N/A
RING	193144-P	N/A
RING, SNAP(STEEL)	193144	N/A
SEAL V200	192303	N/A
RING	191400-P	N/A
RING, SNAP(STEEL)	191400	N/A
28mm ACC charging Adaptor	19057-CE1M-002	N/A
CHARGE APAPTER M28-G1/4	19044-CE1Z-002	N/A
CHARGE APAPTER M28-7/8UNF	19043-CE1M-002	N/A
Washer	190362	N/A
18JB982	18JB982	N/A
THREAD PLUGS, INLET – NOT SHOWN	189814	N/A
PLUG-SHIPPING	189813	N/A
SCREW, HEX HEAD CAP，1/2-13 6.75	189378	N/A
C23T1-A2-7-0 115VAC LED CONNECTOR	18209TA141	N/A
PIN	179341	N/A
STEEL RING 8 GPM MACHINING	178183-S1	N/A
STEEL RING-PHOSPHATING	178183-PH	N/A
O RING (V/P).	174619	N/A
SHAFT STD V2200	163044-HT	N/A
GASKET V20 F-COVER	162903	N/A
Circlip	16077-040	N/A
Finished Nut Hex UNC Nr10-24	16021-003	N/A
RING, RETAINING INTERNAL	158630	N/A
PIN	158465-P	N/A
PIN 20V .1885 X 2.50	158465	N/A
SCREW, HEX HEAD CAP	158267	N/A
O’RING-NITRILE(ID-171.0436 x 3.53-C/S)	154114	N/A
‘O’RING (NITRILE)-ID-164.70xC/S-3.53	154113	N/A
CKIT ORING 45V/VQ BUNA 11-253	154107	N/A
O-Ring (NBR-70) ID 5.109″ x C/S 0.139″	154105	N/A
C KIT ORING 35V/VQ BUNA	154101	N/A
CKIT ORING 25V/VQ BUNA	154095	N/A
ORING	154090	N/A
O-RING (NBR 70) (ID3.109″x0.139″C/S)	154089	N/A
O-RING (NBR-70) ID 2.984″ x C/S 0.139″	154088	N/A
O-RING (NBR-70) ID 2.734″ x C/S 0.139″	154086	N/A
O-Ring NBR-70ID-2.609″xC/S-0.139″	154085	N/A
O’RING NBR 70ID 2.484″ x C/S 0.139″	154084	N/A
O-RING (NBR-70) ID 2.359″ x C/S 0.139″	154083	N/A
O-RING(NBR 70) (ID1.984″xC/S 0.139″)	154080	N/A
O-Ring (NBR-70) ID 1.859″ x C/S 0.139″	154079	N/A
O-RING (NBR-70) ID 1.734″ x C/S 0.139″	154078	N/A
O-RING (NBR-70) ID 1.484″ x C/S 0.139″	154026	N/A
O RING	143216	N/A
Key .1875 X.1875 X 1.00	142843	N/A
KEY .375 X .375 X 1.375 MF 239751	140282	N/A
WAVE WASHER V2200	137650	N/A
SCREW, HEX HEAD CAP	134249	N/A
SCREW PLANT CLEANUP	1318	N/A
HX HD 1/2-13UNCx3.00	131486	N/A
HX HD 7/16-14UNCx2.0	1296	N/A
25M65A 1×20	12113733	N/A
12-261 ORING	12110179	N/A
BU RING (PTFE) OD82.32xID76.32×1.27THK	12110145	N/A
SP Snap Ring (Dwng 190 272)	120428SP	N/A
Snap Ring (Dwng 190272)	120428	N/A
T182872 – SHAFT SEAL AT40	12030372	N/A
RING	120128-P	N/A
RING, RETAINING	120128	N/A
RING	119982-P	N/A
Snap Ring	119982	N/A
SCREW, HEX HEAD CAP	119805	N/A
SP Snap Ring	117507SP	N/A
Snap Ring	117507	N/A
STEEL RING 2 GPM V200 RM1	116141-S1	N/A
STEEL RING-PHOSPHATING	116141-PH	N/A
SP COMPENSATOR PRESURE PVH	115081-001SP	N/A
SP Bolt Socket Head M5X30	114953-030SP	N/A
Spring	114139	N/A
320/20-PP-H SHELL	1130003246	N/A
SIV-2-3D-W3 ANTI-TWIST LOCKING PLATE	1130002278	N/A
AF-3D-M-W3 STACKING BOLT M8X29	1120003585	N/A
HX HD 1/2-13UNCx2.250 PLANT CLEANUP	11163	N/A
SP-2-DP-AS-M-W3	1110032252	N/A
SP-321.3-PP-H-DP-AS-M-W3	1110031186	N/A
SP-MD-IM-50/25-160 VE RA	1102212-050-025-A	N/A
RING	109975-P	N/A
RING, RETAINING INTERNAL	109975	N/A
SCREW	10935-P	N/A
SP O-RING (VITON)	104166-156SP	N/A
O-RING (VITON)	104166-156	N/A
RING	102949-P	N/A
RING, RETAINING	102949	N/A
LOCKING RING	102038	N/A
Snap Ring (Rplcd by96098-078), PVH	098653Z	Alternate part number: 098653
RING-RTNG EXT 0.72×0.042	098653-P	N/A
SCREW, HEX HEAD CAP	096168Z	Alternate part number: 096168
SNAP RING	089447Z	N/A
KEY .312 X.312 X 1.5	088678Z	Alternate part number: 088678
SCREW, HEX HEAD CAP	087947Z	Alternate part number: 087947
RING	083003Z	Alternate part number: 083003
SCREW, HEX HEAD CAP	061321Z	Alternate part number: 061321
Screw, Hex 3/4-10 X 6.50	056092Z	Alternate part number: 056092
BEARING, BALL, ANNULAR-R ADAL (6305U)	049758Z	Alternate part number: 049758
SCREW, HEX HEAD CAP	042955Z	Alternate part number: 042955
SCREW, HEX HEAD CAP	042023Z	Alternate part number: 042023
Screw, Hex 5/8-11 X 5.50	042022Z	N/A
PIN	039640Z	Alternate part number: 039640
Bearing (Dwng 39465)	039465Z	Alternate part number: 039465
SCREW, HEX HEAD CAP	038523Z	Alternate part number: 038523
BEARING 50M	030112Z	N/A
KEY,SQUARE	029664Z	N/A
SPRING	028422Z	Alternate part number: 028422
BEARING, 51M	023948Z	Alternate part number: 023948
SD COVER D WW-0 PLUG	02-466838	N/A
OUTLET SUPPORT PLATE 35VMQ W/BUSHING	02-465611	N/A
SEAL KIT FOR VVx2 RF/VVx2 PX	02-358836	N/A
SEAL KIT FOR VVx1 (BUNAN)	02-358835	N/A
25M30A-1C20	02-346570-C	N/A
25M30A 1C20	02-346570-3	N/A
CAPLUG, BSP G-1/2 SAME AS 16298-508	02-338676	N/A
51M220A 11C20 114	02-318692-C	N/A
51M220A 11C20 114	02-318692-3	N/A
V10 1B5B 41D 20	02-315503-4	N/A
SD ADAPTOR SAE ‘C’ VITON	02-315109	N/A
SA COUPLING SAE ‘B’TO’A’	02-315064	N/A
SA CPLG SAE’C’ TO SAE’C’	02-315056	N/A
BALL BEARING	02-147707	N/A
2520V12A8-1DB22R	02-137170-V	N/A
SEAL, OIL V20F-NF F3	02-133102	N/A
Screw, Hex 3/4-10 X 14.5	02-113380	N/A
Screw, Hex 5/8-11 X 13.5	02-113379	N/A
RING, STEEL	02-113370	N/A
Screw, Hex 5/8-11 X 11.0	02-113364	N/A
PIN DOWEL .250 X 3.875	02-113357	N/A
BEARING, 28VQ	02-113351	N/A
SCREW, SOCKET HEAD CAP	02-113322	N/A
SCREW, SOCKET 1960 SERIE S	02-113320	N/A
SD SHIPPING PERA OUTLET 1	02-102283	N/A
BODY SD SHIPPING PARTS	02-102179	N/A
RELIEF VALVE 0460 PSI	02-102014	N/A
PIN	019096Z	N/A
PIN, STRAIGHT DOWEL UNHA	016662Z	Alternate part number: 016662
PIN, DOWEL	015993Z	N/A
SCREW, HEX HEAD CAP	011173Z	Alternate part number: 011173
SCREW, HEX HEAD (1/2 UNC	011165Z	Alternate part number: 011165
SCREW, HEX HEAD CAP	011163Z	Alternate part number: 011163
SCREW 1/4-20 3.250	010937Z	N/A
SCREW 1/4-20 X 2.75 DG5S4	010935Z	N/A
CAP SCREWPLATED 16147-312	010358Z	Alternate part number: 010358
KEY .1875 X.1875 X 1.25	009955Z	Alternate part number: 009955
Screw, Hex 5/8-11 X 2.75	008876Z	N/A
BEARING, 45M	008618Z	N/A
BOLT, SOCKET HEAD10-24x.5	008076Z	Alternate part number: 008076
KEY,SQUARE	003418Z	Alternate part number: 003418
PIN	002478Z	Alternate part number: 002478
SPRING	002281Z	Alternate part number: 002281
SPRING	002280Z	Alternate part number: 002280
PIN	002161Z	Alternate part number: 002161
BEARING, BALL 45VPF-VMQ	001738Z	N/A
BEARING, BALL, ANNULAR-R	001705Z	Alternate part number: 001705
BEARING, BALL, ANNULAR-R	001704Z	Alternate part number: 001704
BEARING V10F	001703Z	Alternate part number: 001703
KEY	001617Z	Alternate part number: 001617
Screw, Hex 5/8-11 X 3.00	001357Z	N/A
Screw, Hex 5/8-11 X 2.50	001356Z	Alternate part number: 001356
Screw, Hex 1/2-13 X 1.75	001315Z	Alternate part number: 001315
SCREW, HEX HEAD CAP	001296Z	Alternate part number: 001296
SCREW, HEX HEAD CAP	001278Z	Alternate part number: 001278
SCREW-3/8-16X3	001278-P	N/A
Screw, Hex 3/8-16 X 1.00 GR-8 RE-170177	001272Z	N/A
SCREW	001114Z	N/A
SCREW S-H CAP .375 X 1.0	001072Z	N/A
