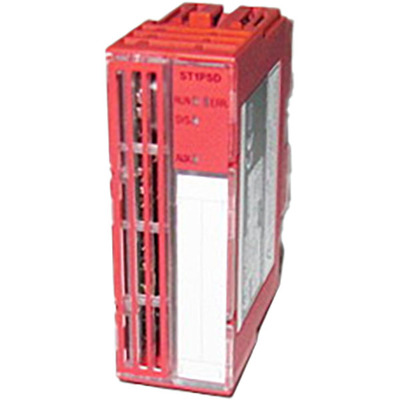

## Documentos * [Mitsubishi Electric – FA product – Catalog.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjQvMDIvMTEvMDkvMzAvNDMvMGU0NjAwMjctZjNlNi00Zjg4LTg0MjEtNGQ1ODQ3ZTQ5YmM0L01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBGQSUyMHByb2R1Y3QlMjAtJTIwQ2F0YWxvZy5wZGYiXV0?sha=b3051e6b11b395d4) * [Mitsubishi Electric – MELSEC ST Series – Datasheet.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjQvMDIvMTEvMTAvMDcvMTEvYzViOWMyOGUtYjRjNC00NDRiLTliMDItZDNiYWE3ZjE1YTVlL01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBNRUxTRUMlMjBTVCUyMFNlcmllcyUyMC0lMjBEYXRhc2hlZXQucGRmIl1d?sha=1fcb6a69f2277cf7) Para mais informações sobre este módulo e outros produtos da linha MELSEC ST, consulte a documentação técnica fornecida. [Entre em contato conosco](https://mokka-sensors.com.br/#contato) para mais detalhes sobre o Módulo Refresh Bus ST1PSD.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Distribution unit |
| Product series / family name | Industrial automation > Remote distributed I/Os > Various accessories |
| Sub-range name | MELSEC ST series |
| Functions | Bus refreshing module |
| Design | for pwr. the head station (5Vdc suppl. + 24Vdc distribution) |
| Supply voltage (DC) | 5Vdc |
| Mounting mode | Plug-in |
| Order code / Manufacturer SKU | ST1PSD |
| Manufacturer product status | Commercialized |
| Recommended accessories | Applicable base modules 1. For powering the head station (supply of 5Vdc and distribution of 24Vdc) – ST1B-S4P2-H-SET (spring-clamp terminals) – ST1B-E4P2-H-SET (screw-clamp terminals) 2. For increasing the capacity of the 5Vdc supply – ST1B-S4P2-R-SET (spring-clamp terminals) – ST1B-E4P2-R-SET (screw-clamp terminals) |
