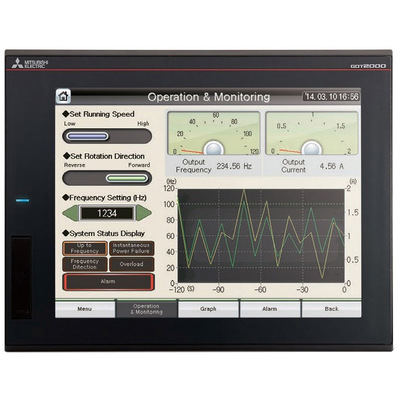

A Mitsubishi Electric oferece o Kit HMI Touchscreen GT2708-STBD-K, uma solução completa para automação industrial. Este HMI de 8.4 polegadas possui display SVGA, conectividade Ethernet e múltiplas interfaces seriais (RS232/422/485), além de ser resistente à água e poeira com classificação IP67. O kit inclui software de programação e cabo USB, facilitando a implementação em seus projetos.
Com design robusto e avançados recursos de operação, o GT2708-STBD-K da série GOT2000 é ideal para aplicações que exigem confiabilidade e interface intuitiva.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | HMI / Display unit |
| Product series / family name | Industrial automation > HMIs (Human Machine Interfaces) > GOT2000 series |
| Sub-range name | GOT2000 – GT27 series |
| Functions | Advanced Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI |
| Design | starter kit / bundle |
| Supply voltage (DC) | 24Vdc |
| Display | 8.4″ 800x600pixels (SVGA) TFT 65536 (65k) color display with LED backlight / Analog resistive film digitizer |
| Color | Black frame |
| Memory capacity | 57MBytes (ROM) 128MBytes (RAM) |
| Connection type | 2 x USB Type A (host) connectors USB mini-B (device) connector 9-pin D-Sub male connector (RS-232) 9-pin D-Sub female connector (RS-422/RS-485) RJ45 port (Ethernet) |
| Communication protocol | RS-232 RS-422 RS-485 Ethernet CC-Link |
| Mounting mode | Flush |
| Degree of protection | IP67 |
| Dimensions | W241mm x H194mm x D52mm W9.49″ x H7.64″ x D2.05″ |
| Door cut-out height | 6.93″ / 176 mm |
| Door cut-out width | 8.94″ / 227 mm |
| Ambient air temperature for operation | +32°F…+131°F / 0°C…+55 °C |
| Ambient air temperature for storage | -4°F…+140°F / -20°C…+60 °C |
| Humidity | 10% to 90% (non-condensing) |
| Power consumption | 13 W |
| Contents | 1 x HMI (GT2708-STBD) 1 x USB cable GTW3 s/w. GT11-50BAT Lithium battery |
| Order code / Manufacturer SKU | GT2708-STBD-K |
| Manufacturer product status | Commercialized |
| Equivalent to | GT2708STBDK |
| Compliant with standard(s) | CE EAC cUL UL KC IEC 61131-2 JIS B 3502 |
| Electrical durability | 60 000 hours |
| Benefits | multi-touch gesture and multimedia Video / RGB functions |
| Storage type | SD card slot |
