## Principais recursos * Controle de velocidade/frequência variável (VSD/VFD) * Revestimento conformal estendido para resistência química * Comunicação Modbus RTU * Controle PWM de alta frequência de portadora * Controle avançado de vetor de fluxo magnético * Controle de motor PM * Função de segurança de parada (SS1) * Ampla gama de entradas e saídas digitais e analógicas ## Especificações | Parâmetro | Valor | | :——————————— | :————————————————————————————————————- | | Marca principal | Mitsubishi Electric | | Função principal | Inversor de velocidade/frequência variável (VSD/VFD) | | Série/nome da família do produto | Série FREQROL FR-F800 | | Frequência de rede (saída) | 0,2-590 Hz | | Tensão de alimentação (VCA) | 380VCA-500VCA (400VCA / 415VCA / 480VCA) | | Tipo de rede | Trifásico/3P | | Corrente nominal | 216A (LD Light duty) 260A (SLD Super Light duty) | | Potência ativa nominal (kW) | 110kW (LD Light duty) 132kW (SLD Super Light Duty) | | Potência nominal (HP) | 150HP (LD Light Duty) 175HP (SLD Super Light Duty) | | Potência aparente nominal (S) | 165kVA (LD Light Duty) 198kVA (SLD Super Light Duty) | | Protocolo de comunicação | Modbus RTU | | Entradas digitais | 1 x entrada digital (STF), 1 x entrada digital (STR), 1 x entrada digital (STOP), 1 x entrada digital (RH), 1 x entrada digital (RM), 1 x entrada digital (RL), 1 x entrada digital (JOG), 1 x entrada digital (RT), 1 x entrada digital (MRS), 1 x entrada digital (RES), 1 x entrada digital (AU), 1 x entrada digital (CS), 1 x entrada digital (SS1 canal 1), 1 x entrada digital (SS1 canal 2) | | Saídas digitais | 1 x saída digital (SPDT A1/B1/C1), 1 x saída digital (SPDT A2/B2/C2), 1 x saída digital (coletor aberto RUN), 1 x saída digital (coletor aberto SU), 1 x saída digital (coletor aberto IPF), 1 x saída digital (coletor aberto OL), 1 x saída digital (coletor aberto FU), 1 x saída digital (SO – Saída de Monitoramento de Segurança), 1 x saída digital (PTO Saída de Trem de Pulsos) | | Entradas analógicas | 1 x entrada analógica (0-5VCC / 0-10VCC / 4-20mA), 1 x entrada analógica (0-5VCC / 0-10VCC), 1 x entrada analógica (0-5VCC / 0-10VCC / 4-20mA) | | Saídas analógicas | 1 x saída analógica (0-10VCC), 1 x saída analógica (0-20mA) | | Grau de proteção | IP00 | | Resistência química | Resistência química (revestimento da placa de circuito + condutores revestidos – IEC60721-3-3 3S2 3C2) | | Tipo de aplicação | Ventilador Bomba Ar condicionado | | Código de pedido / SKU | FR-F840-02600-3U06 | | Status do produto do fabricante | Comercializado | | Equivalente a | FRF840026003U06 | | Em conformidade com norma(s) | UL cUL CE KC (Coreia do Sul) Lei de Ondas de Rádio RoHS IEC60721-3-3 (3S2; 3C2) | ## Documentos * [Mitsubishi Electric – Factory Automation (FA) – FREQROL – FR-F800 Series – Catalog.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjMvMDEvMTMvMDgvMzYvMTMvNTNiZGMyYjAtNjhlZC00N2FmLWFhMTAtZjg5MGQ2NGQ3YzM4L01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBGYWN0b3J5JTIwQXV0b21hdGlvbiUyMChGQSklMjAtJTIwRlJFUVJPTCUyMC0lMjBGUi1GODAwJTIwU2VyaWVzJTIwLSUyMENhdGFsb2cucGRmIl1d?sha=9b0d319fe04229a1) Este produto é equivalente ao FRF840026003U06. Entre em contato conosco para mais informações sobre o inversor de frequência Mitsubishi Electric FR-F840-02600-3U06. https://mokka-sensors.com.br/#contato
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name | FREQROL FR-F800 series |
| Network frequency | (output) 0.2-590 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) / Inverter Soft-PWM control High carrier frequency PWM control Advanced magnetic flux vector control PM motor control Maximum and minimum frequency settings Multi-speed operation Acceleration/deceleration pattern Thermal protection DC injection braking Starting frequency JOG operation Output stop (MRS) Stall prevention Regeneration avoidance Increased magnetic excitation deceleration Frequency jump Rotation display Automatic restart after instantaneous power failure Electronic bypass sequence Remote setting Retry function Carrier frequency selection Fast-response current limit Forward/reverse rotation prevention Operation mode selection Slip compensation Speed smoothing control Traverse Auto tuning Applied motor selection RS-485 communication PID control PID pre-charge function Cooling fan operation selection Stop selection (deceleration stop/coasting) Power-failure deceleration stop function PLC function Life diagnosis Maintenance timer Current average monitor Multiple rating Test run 24V power supply input for control circuit Safety stop function Self power management BACnet communication PID gain tuning Cleaning Load characteristics storage |
| Design | extended conformal coating Forced air cooling |
| Supply voltage (AC) | 380Vac-500Vac (400Vac / 415Vac / 480Vac) |
| Type of network | 3-phase/3P |
| Rated current | 216A (LD Light duty) 260A (SLD Super Light duty) 110% In for 60s / 120% In for 3s overload current rating (inverse-time characteristics; Super light duty) 120% In for 60s / 150% In for 3s overload current rating (inverse-time characteristics; Light duty) |
| Rated active power (kW) | 110kW (LD Light duty) 132kW (SLD Super Light Duty) |
| Rated power (HP) | 150HP (LD Light Duty) 175HP (SLD Super Light Duty) |
| Protection functions | Overcurrent trip during acceleration Overcurrent trip during constant speed Overcurrent trip during deceleration or stop Regenerative overvoltage trip during acceleration Regenerative overvoltage trip during constant speed Regenerative overvoltage trip during deceleration or stop Inverter overload trip (electronic thermal relay function) Motor overload trip (electronic thermal relay function) Heatsink overheat Stall prevention stop Upper limit fault detection Lower limit fault detection Output side earth (ground) fault overcurrent Output short-circuit Option fault Communication Option fault Parameter storage device fault PU disconnection Output phase loss CPU fault Operation panel power supply short circuit/RS-485 terminals power supply short circuit 24Vdcpower fault Communication fault (inverter) Analog input fault USB communication fault Safety circuit fault Internal circuit fault User definition error in the PLC function Detection of loss of synchronism detection (not available in initial status) External thermal relay operation PTC thermistor operation Retry count excess Abnormal output current detection Overspeed occurrence 4mA input fault Pre-charge fault PID signal fault |
| Communication protocol | Modbus RTU |
| Digital inputs | 1 x digital input (source/sink) (STF) 1 x digital input (source/sink) (STR) 1 x digital input (source/sink) (STOP) 1 x digital input (source/sink) (RH) 1 x digital input (source/sink) (RM) 1 x digital input (source/sink) (RL) 1 x digital input (source/sink) (JOG) 1 x digital input (source/sink) (RT) 1 x digital input (source/sink) (MRS) 1 x digital input (source/sink) (RES) 1 x digital input (source/sink) (AU) 1 x digital input (source/sink) (CS) 1 x digital input (SS1 safe stop channel 1) 1 x digital input (SS1 safe stop channel 2) |
| Digital outputs | 1 x digital output (SPDT (Single Pole Double Throw contact A1/B1/C1) (programmable) 1 x digital output (SPDT Single Pole Double Throw contact A2/B2/C2) (programmable) 1 x digital output (sink/source open collector transistor) (RUN; programmable) 1 x digital output (sink/source open collector transistor) (SU; programmable) 1 x digital output (sink/source open collector transistor) (IPF; programmable) 1 x digital output (sink/source open collector transistor) (OL; programmable) 1 x digital output (sink/source open collector transistor) (FU; programmable) 1 x digital output (programmable) (SO – Safety Monitor Output) 1 x digital output (PTO Pulse Train Output) |
| Analog inputs | 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) 1 x analog input (0-5Vdc / 0-10Vdc) 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) |
| Analog outputs | 1 x analog output (0-10Vdc) 1 x analog output (0-20mA) |
| Degree of protection | IP00 |
| Chemical resistance | Chemical resistance (circuit board coating + plated conductors – IEC60721-3-3 3S2 3C2) |
| Rated apparent power (S) | 165kVA (LD Light Duty) 198kVA (SLD Super Light Duty) |
| Application type | Fan Pump Air conditioning |

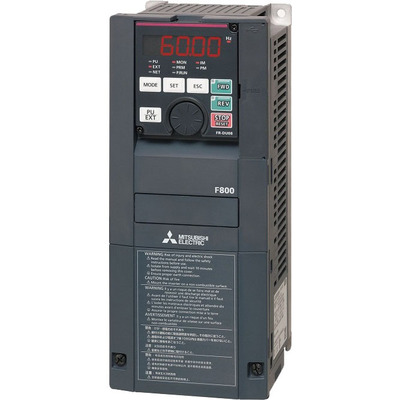

| Order code / Manufacturer SKU | FR-F840-02600-3U06 |
| Manufacturer product status | Commercialized |
| Equivalent to | FRF840026003U06 |
| Compliant with standard(s) | UL cUL CE KC (South Korea) Radio Waves Act RoHS IEC60721-3-3 (3S2; 3C2) |
