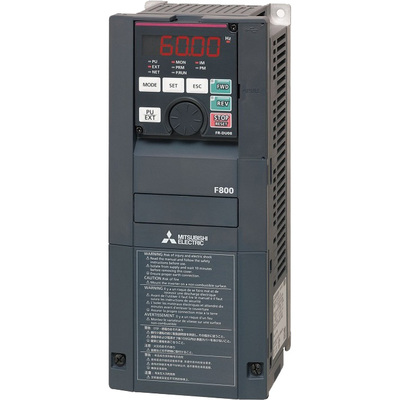

Inversor de Frequência Mitsubishi Electric FR-F862-06470-E360 Inversor de frequência FR-F862-06470-E360 da Mitsubishi Electric, com controle de velocidade variável para aplicações industriais. ## Visão geral Este é um inversor de frequência da série FREQROL FR-F800 da Mitsubishi Electric, projetado para controle de velocidade variável (VSD/VFD). Ele opera com uma tensão de entrada de 600Vac trifásica e oferece uma faixa de frequência de saída de 0.2 a 590Hz, com capacidade nominal de 500HP. O dispositivo inclui capacidade de comunicação via Ethernet e possui revestimento protetor nas placas de circuito para resistência química, conforme normas IEC60721-3-3 3S2 3C2. O inversor é equipado com um conversor separado (FR-CC2), vendido separadamente, e utiliza refrigeração forçada a ar. Seus recursos avançados de controle incluem Soft-PWM, PWM de alta frequência e controle vetorial de fluxo magnético, permitindo operação otimizada com motores de ímã permanente (PM) e motores de indução. O grau de proteção é IP00. ## Principais recursos * Controle de velocidade/frequência variável (VSD/VFD) * Controle Soft-PWM e PWM de alta frequência * Controle vetorial de fluxo magnético avançado * Controle de motor PM (ímã permanente) * Revestimento protetor contra produtos químicos (IEC60721-3-3 3S2 3C2) * Comunicação Ethernet * Conversor separado (FR-CC2, vendido separadamente) * Proteção contra sobrecorrente, sobretensão e superaquecimento * Diversas funções de proteção e diagnóstico * Função PLC integrada
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name | FREQROL FR-F800 series |
| Network frequency | (output) 0.2-590 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) / Inverter Soft-PWM control High carrier frequency PWM control Advanced magnetic flux vector control PM motor control Maximum and minimum frequency settings Multi-speed operation Acceleration/deceleration pattern Thermal protection DC injection braking Starting frequency JOG operation Output stop (MRS) Stall prevention Regeneration avoidance Increased magnetic excitation deceleration Frequency jump Rotation display Automatic restart after instantaneous power failure Electronic bypass sequence Remote setting Retry function Carrier frequency selection Fast-response current limit Forward/reverse rotation prevention Operation mode selection Slip compensation Speed smoothing control Traverse Auto tuning Applied motor selection RS-485 communication PID control PID pre-charge function Cooling fan operation selection Stop selection (deceleration stop/coasting) Power-failure deceleration stop function PLC function Life diagnosis Maintenance timer Current average monitor Multiple rating Test run 24V power supply input for control circuit Safety stop function Self power management BACnet communication PID gain tuning Cleaning Load characteristics storage |
| Design | separate converter (FR-CC2; sold separately) conformal coating Forced air cooling |
| Supply voltage (AC) | 600Vac |
| Type of network | 3-phase/3P |
| Rated power (HP) | 500HP |
| Protection functions | Overcurrent trip during acceleration Overcurrent trip during constant speed Overcurrent trip during deceleration or stop Regenerative overvoltage trip during acceleration Regenerative overvoltage trip during constant speed Regenerative overvoltage trip during deceleration or stop Inverter overload trip (electronic thermal relay function) Motor overload trip (electronic thermal relay function) Heatsink overheat Stall prevention stop Upper limit fault detection Lower limit fault detection Output side earth (ground) fault overcurrent Output short-circuit Option fault Communication Option fault Parameter storage device fault PU disconnection Output phase loss CPU fault Operation panel power supply short circuit/RS-485 terminals power supply short circuit 24Vdcpower fault Communication fault (inverter) Analog input fault USB communication fault Safety circuit fault Internal circuit fault User definition error in the PLC function Detection of loss of synchronism detection (not available in initial status) External thermal relay operation PTC thermistor operation Retry count excess Abnormal output current detection Overspeed occurrence 4mA input fault Pre-charge fault PID signal fault |
| Communication protocol | Ethernet |
| Digital inputs | 1 x digital input (source/sink) (STF) 1 x digital input (source/sink) (STR) 1 x digital input (source/sink) (STOP) 1 x digital input (source/sink) (RH) 1 x digital input (source/sink) (RM) 1 x digital input (source/sink) (RL) 1 x digital input (source/sink) (JOG) 1 x digital input (source/sink) (RT) 1 x digital input (source/sink) (MRS) 1 x digital input (source/sink) (RES) 1 x digital input (source/sink) (AU) 1 x digital input (source/sink) (CS) 1 x digital input (SS1 safe stop channel 1) 1 x digital input (SS1 safe stop channel 2) |
| Digital outputs | 1 x digital output (SPDT (Single Pole Double Throw contact A1/B1/C1) (programmable) 1 x digital output (SPDT Single Pole Double Throw contact A2/B2/C2) (programmable) 1 x digital output (sink/source open collector transistor) (RUN; programmable) 1 x digital output (sink/source open collector transistor) (SU; programmable) 1 x digital output (sink/source open collector transistor) (IPF; programmable) 1 x digital output (sink/source open collector transistor) (OL; programmable) 1 x digital output (sink/source open collector transistor) (FU; programmable) 1 x digital output (programmable) (SO – Safety Monitor Output) 1 x digital output (PTO Pulse Train Output) |
| Analog inputs | 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) 1 x analog input (0-5Vdc / 0-10Vdc) 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) |
| Analog outputs | 1 x analog output (0-10Vdc) 1 x analog output (0-20mA) |
| Degree of protection | IP00 |
| Chemical resistance | Chemical resistance (circuit board coating – IEC60721-3-3 3S2 3C2) |
| Application type | Fan Pump Air conditioning |
| Order code / Manufacturer SKU | FR-F862-06470-E360 |
| Manufacturer product status | Commercialized |
| Equivalent to | FRF86206470E360 |
| Compliant with standard(s) | UL cUL CE KC (South Korea) Radio Waves Act RoHS IEC60721-3-3 (3S2; 3C2) |
