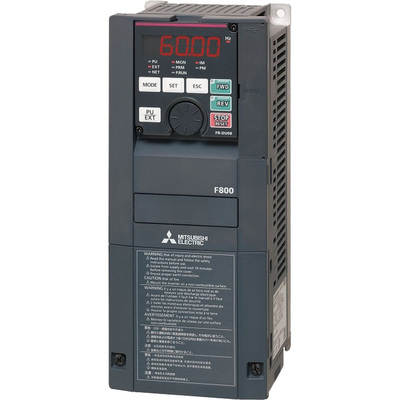

## Inversor de Frequência Mitsubishi FR-F820-00930-3-N6 O Inversor de Frequência FR-F820-00930-3-N6 da Mitsubishi Electric é um dispositivo de Velocidade Variável/Frequência Variável (VSD/VFD) da renomada série FREQROL FR-F800. Este modelo se destaca pela sua capacidade de controle avançado e pela inclusão de um revestimento protetor estendido para a placa de circuito e condutores metalizados, conferindo resistência química conforme a norma IEC60721-3-3 3S2 3C2. Projetado para operar em redes trifásicas de 200 a 240 VCA, este inversor é ideal para aplicações em bombas, ventiladores e sistemas de ar condicionado. Oferece uma faixa de frequência de saída de 0,2 a 590 Hz e capacidade de comunicação via Modbus RTU, além de terminal de corrente CA (0-20mA), tornando-o uma solução versátil para diversas necessidades de automação industrial. ### Principais recursos * Inversor de Frequência (VSD/VFD) * Revestimento protetor estendido para circuitos impressos e condutores * Controle PWM de alta frequência e controle vetorial de fluxo magnético avançado * Controle de motor síncrono de ímã permanente (PM) * Comunicação Modbus RTU * Entrada analógica configurável (0-5Vcc / 0-10Vcc / 4-20mA) * Saída analógica de corrente (0-20mA) * Proteção contra sobrecarga, sobretensão e superaquecimento ### Especificações | Parâmetro | Valor | | :—————————————— | :————————————————————————————————————————————————————– | | Marca principal | Mitsubishi Electric | | Função principal | Inversor de Frequência (VSD/VFD) | | Série do produto / nome da família | FREQROL FR-F800 series | | Frequência da rede (saída) | 0,2-590 Hz | | Tensão de alimentação (CA) | 200Vca-240Vca (220Vca / 230Vca) | | Tipo de rede | Trifásica/3P | | Corrente nominal | 85A (LD Light duty) 93A (SLD Super Light duty) | | Potência ativa nominal (kW) | 22kW (LD Light duty) 22kW (SLD Super Light Duty) | | Potência nominal (HP) | 30HP (LD Light Duty) 30HP (SLD Super Light Duty) | | Funções de proteção | Falha de sobrecorrente, sobretensão, sobrecarga, superaquecimento do dissipador, parada por bloqueio, falha de aterramento, curto-circuito, falha de comunicação, etc. | | Protocolo de comunicação | Modbus RTU | | Entradas digitais | 1 x DI (STF), 1 x DI (STR), 1 x DI (STOP), 1 x DI (RH), 1 x DI (RM), 1 x DI (RL), 1 x DI (JOG), 1 x DI (RT), 1 x DI (MRS), 1 x DI (RES), 1 x DI (AU), 1 x DI (CS), 2 x DI (SS1) | | Saídas digitais | 2 x DO (SPDT – A1/B1/C1 e A2/B2/C2), 4 x DO (Transistor coletor aberto – RUN, SU, IPF, OL, FU), 1 x DO (SO – Saída de Monitoramento de Segurança) | | Entradas analógicas | 1 x (0-5Vcc / 0-10Vcc / 4-20mA), 2 x (0-5Vcc / 0-10Vcc) | | Saídas analógicas | 1 x (0-10Vcc), 1 x (0-20mA) | | Grau de proteção | IP20 | | Resistência química | Resistência química (revestimento da placa de circuito + condutores metalizados – IEC60721-3-3 3S2 3C2) | | Potência aparente nominal (S) | 32kVA (LD Light Duty) 35kVA (SLD Super Light Duty) | | Tipo de aplicação | Ventilador, Bomba, Ar condicionado | | Código do pedido / SKU do fabricante | FR-F820-00930-3-N6 | | Status do produto do fabricante | Em comercialização | | Equivalente a | FRF820009303N6 | | Em conformidade com as normas | UL, cUL, CE, KC (Coreia do Sul), Lei de Ondas de Rádio, RoHS, IEC60721-3-3 (3S2; 3C2) | ### Documentos * [Mitsubishi Electric – Factory Automation (FA) – FREQROL – FR-F800 Series – Catálogo.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjMvMDEvMTMvMDgvMzYvMTMvNTNiZGMyYjAtNjhlZC00N2FmLWFhMTAtZjg5MGQ2NGQ3YzM4L01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBGYWN0b3J5JTIwQXV0b21hdGlvbiUyMChGQSklMjAtJTIwRlJFUVJPTCUyMC0lMjBGUi1GODAwJTIwU2VyaWVzJTIwLSUyMENhdGFsb2cucGRmIl1d?sha=9b0d319fe04229a1) Este produto é equivalente ao FRF820009303N6. Para mais informações e para discutir suas necessidades, entre em contato conosco. [https://mokka-sensors.com.br/#contato](https://mokka-sensors.com.br/#contato)
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name | FREQROL FR-F800 series |
| Network frequency | (output) 0.2-590 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) / Inverter Soft-PWM control High carrier frequency PWM control Advanced magnetic flux vector control PM motor control Maximum and minimum frequency settings Multi-speed operation Acceleration/deceleration pattern Thermal protection DC injection braking Starting frequency JOG operation Output stop (MRS) Stall prevention Regeneration avoidance Increased magnetic excitation deceleration DC feeding Frequency jump Rotation display Automatic restart after instantaneous power failure Electronic bypass sequence Remote setting Retry function Carrier frequency selection Fast-response current limit Forward/reverse rotation prevention Operation mode selection Slip compensation Speed smoothing control Traverse Auto tuning Applied motor selection RS-485 communication PID control PID pre-charge function Cooling fan operation selection Stop selection (deceleration stop/coasting) Power-failure deceleration stop function PLC function Life diagnosis Maintenance timer Current average monitor Multiple rating Test run 24V power supply input for control circuit Safety stop function Self power management BACnet communication PID gain tuning Cleaning Load characteristics storage Emergency drive |
| Design | extended conformal coating CA term (0-20mA) Forced air cooling |
| Supply voltage (AC) | 200Vac-240Vac (220Vac / 230Vac) |
| Type of network | 3-phase/3P |
| Rated current | 85A (LD Light duty) 93A (SLD Super Light duty) 110% In for 60s / 120% In for 3s overload current rating (inverse-time characteristics; Super light duty) 120% In for 60s / 150% In for 3s overload current rating (inverse-time characteristics; Light duty) |
| Rated active power (kW) | 22kW (LD Light duty) 22kW (SLD Super Light Duty) |
| Rated power (HP) | 30HP (LD Light Duty) 30HP (SLD Super Light Duty) |
| Protection functions | Overcurrent trip during acceleration Overcurrent trip during constant speed Overcurrent trip during deceleration or stop Regenerative overvoltage trip during acceleration Regenerative overvoltage trip during constant speed Regenerative overvoltage trip during deceleration or stop Inverter overload trip (electronic thermal relay function) Motor overload trip (electronic thermal relay function) Heatsink overheat Stall prevention stop Upper limit fault detection Lower limit fault detection Output side earth (ground) fault overcurrent Output short-circuit Option fault Communication Option fault Parameter storage device fault PU disconnection Output phase loss CPU fault Operation panel power supply short circuit/RS-485 terminals power supply short circuit 24Vdcpower fault Communication fault (inverter) Analog input fault USB communication fault Safety circuit fault Internal circuit fault User definition error in the PLC function Detection of loss of synchronism detection (not available in initial status) External thermal relay operation PTC thermistor operation Retry count excess Abnormal output current detection Overspeed occurrence 4mA input fault Pre-charge fault PID signal fault Inrush current limit circuit fault Instantaneous power failure Undervoltage Input phase loss |
| Communication protocol | Modbus RTU |
| Digital inputs | 1 x digital input (source/sink) (STF) 1 x digital input (source/sink) (STR) 1 x digital input (source/sink) (STOP) 1 x digital input (source/sink) (RH) 1 x digital input (source/sink) (RM) 1 x digital input (source/sink) (RL) 1 x digital input (source/sink) (JOG) 1 x digital input (source/sink) (RT) 1 x digital input (source/sink) (MRS) 1 x digital input (source/sink) (RES) 1 x digital input (source/sink) (AU) 1 x digital input (source/sink) (CS) 1 x digital input (SS1 safe stop channel 1) 1 x digital input (SS1 safe stop channel 2) |
| Digital outputs | 1 x digital output (SPDT (Single Pole Double Throw contact A1/B1/C1) (programmable) 1 x digital output (SPDT Single Pole Double Throw contact A2/B2/C2) (programmable) 1 x digital output (sink/source open collector transistor) (RUN; programmable) 1 x digital output (sink/source open collector transistor) (SU; programmable) 1 x digital output (sink/source open collector transistor) (IPF; programmable) 1 x digital output (sink/source open collector transistor) (OL; programmable) 1 x digital output (sink/source open collector transistor) (FU; programmable) 1 x digital output (programmable) (SO – Safety Monitor Output) |
| Analog inputs | 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) 1 x analog input (0-5Vdc / 0-10Vdc) 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) |
| Analog outputs | 1 x analog output (0-10Vdc) (signal output) 1 x analog output (0-20mA) (current output) |
| Degree of protection | IP20 |
| Chemical resistance | Chemical resistance (circuit board coating + plated conductors – IEC60721-3-3 3S2 3C2) |
| Rated apparent power (S) | 32kVA (LD Light Duty) 35kVA (SLD Super Light Duty) |
| Application type | Fan Pump Air conditioning |
| Order code / Manufacturer SKU | FR-F820-00930-3-N6 |
| Manufacturer product status | Commercialized |
| Equivalent to | FRF820009303N6 |
| Compliant with standard(s) | UL cUL CE KC (South Korea) Radio Waves Act RoHS IEC60721-3-3 (3S2; 3C2) |
