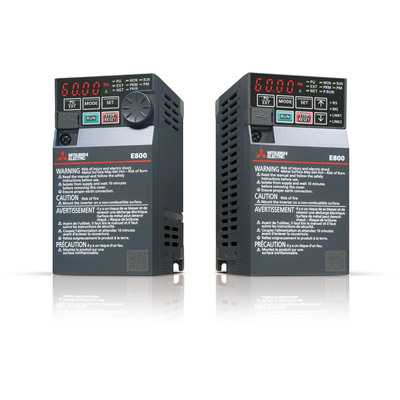

Inversor de Frequência FR-E800 Mitsubishi 1.5kW 220V E820-0080EPC-60 Inversor de Frequência Mitsubishi Electric FR-E800, SKU E820-0080EPC-60. Potência de 1.5kW, 220V, 3P, com comunicação Ethernet/EtherCAT e revestimento. ## Visão geral Este é um inversor de frequência da série FR-E800 da Mitsubishi Electric, projetado para controle de velocidade variável. Possui revestimento especial para maior resistência a produtos químicos, conforme as normas IEC60721-3-3 3S2 3C2, sendo adequado para ambientes industriais desafiadores. O inversor oferece capacidades de comunicação robustas, incluindo Ethernet e EtherCAT, o que facilita a integração em sistemas de automação industrial avançados. Sua classificação de segurança SIL2 / PLd assegura um alto nível de proteção em aplicações críticas. ## Principais recursos * Controle de velocidade e frequência variável * Revestimento para resistência química (norma IEC60721-3-3 3S2 3C2) * Comunicação Ethernet e EtherCAT * Segurança SIL2 / PLd * Ampla faixa de tensão de alimentação (200–240VCA, trifásico) * Capacidade de sobrecarga (Normal Duty e Light Duty) * Proteções abrangentes contra falhas ## Especificações | Parâmetro | Valor | | :——————————————– | :———————————————————————————————————————- | | Marca principal | Mitsubishi Electric | | Função principal | Conversor de Velocidade/Frequência Variável (VSD/VFD) / Inversor | | Série / Nome da família do produto | Série FREQROL FR-E800 | | Frequência da rede (saída) | 0.2–590 Hz | | Tensão de alimentação (CA) | 200–240 VCA (220 VCA / 230 VCA) | | Tipo de rede | Trifásico / 3P | | Corrente nominal | 8A (ND Tarefa Normal) 9.6A (LD Tarefa Leve) | | Potência ativa nominal (kW) | 1.5kW (ND Tarefa Normal) 2.2kW (LD Tarefa Leve) | | Potência nominal (HP) | 2HP (ND Tarefa Normal) 3HP (LD Tarefa Leve) | | Protocolo de comunicação | Ethernet EtherCAT | | Entradas digitais | 1 x entrada digital (sink) (DI0) 1 x entrada digital (sink) (DI1) 1 x entrada digital (SS1 canal de parada segura 1) 1 x entrada digital (SS1 canal de parada segura 2) | | Saídas digitais | 1 x saída digital (contato SPDT A/B/C) (programável) 1 x saída digital (SO – Saída de Monitoramento de Segurança) (programável) | | Entradas analógicas | 1 x entrada analógica (0–5 VCA / 0–10 VCA / 0–20 mA) 1 x entrada analógica (0–5 VCA / 0–10 VCA / 4–20 mA) | | Saídas analógicas | 1 x saída analógica (-10…+10 VCA; 12 bits) | | Grau de proteção | IP20 | | Temperatura ambiente para operação | -20…+60 °C | | Resistência química | Resistência química (revestimento da placa de circuito – IEC60721-3-3 3S2 3C2) | | Potência aparente nominal (S) | 3.2 kVA (ND Tarefa Normal) 3.8 kVA (LD Tarefa Leve) | | Código de pedido / SKU do fabricante | E820-0080EPC-60 FR-E820-0080EPC-60 | | Classe de segurança | SIL2 PLd | | Resistência a sobrecarga (características inversas; tarefa normal) | 150% In por 60s / 200% In por 3s | | Resistência a sobrecarga (características inversas; tarefa leve) | 120% In por 60s / 150% In por 3s |
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name | FREQROL FR-E800 series |
| Network frequency | (output) 0.2-590 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) / Inverter Soft-PWM control High carrier frequency PWM control Selectable among V/F control Advanced magnetic flux vector control Real sensorless vector control PM motor control Maximum and minimum frequency settings Multi-speed operation Acceleration/deceleration pattern Thermal protection DC injection brake Starting frequency JOG operation Output stop (MRS) Stall prevention Regeneration avoidance Frequency jump Rotation display Automatic restart after instantaneous power failure Remote setting Automatic acceleration/deceleration Retry function Carrier frequency selection Fast-response current limit Forward/reverse rotation prevention Operation mode selection Slip compensation Droop control Speed smoothing control Traverse Auto tuning Applied motor selection PID control Easy dancer control Cooling fan operation selection Stop selection (deceleration stop/coasting) Power-failure deceleration stop function Stop-on-contact control PLC function Life diagnosis Maintenance timer Current average monitor Multiple rating Speed control Torque control Torque limit Safety stop function Inverter-to-inverter link function |
| Design | conformal coating Safety comm. (C) 200V class (3-phase) Protocol group C (EtherCAT) Forced air cooling |
| Supply voltage (AC) | 200Vac-240Vac (220Vac / 230Vac) |
| Type of network | 3-phase/3P |
| Rated current | 8A (ND Normal Duty) 9.6A (LD Light duty) 150% In for 60s / 200% In for 3s overload current rating (inverse-time characteristics; normal duty) 120% In for 60s / 150% In for 3s overload current rating (inverse-time characteristics; Light duty) |
| Rated active power (kW) | 1.5kW (ND Normal Duty) 2.2kW (LD Light duty) |
| Rated power (HP) | 2HP (ND Normal Duty) 3HP (LD Light duty) |
| Protection functions | Overcurrent trip during acceleration Overcurrent trip during constant speed Overcurrent trip during deceleration or stop Regenerative overvoltage trip during acceleration Regenerative overvoltage trip during constant speed Regenerative overvoltage trip during deceleration or stop Inverter overload trip Motor overload trip Heatsink overheat Undervoltage Input phase loss Stall prevention stop Loss of synchronism detection Upper limit fault detection Lower limit fault detection Brake transistor alarm detection Output side earth (ground) fault overcurrent Output short-circuit Output phase loss External thermal relay operation Option fault Communication Option fault Parameter storage device fault PU disconnection Retry count excess CPU fault Abnormal output current detection Inrush current limit circuit fault USB communication fault Analog input error Safety circuit fault Overspeed occurrence Speed deviation excess detection Brake sequence fault PID signal fault Ethernet communication fault Opposite rotation deceleration fault Internal circuit fault User definition error by the PLC function Board combination mismatch Fan alarm Stall prevention (overcurrent) Stall prevention (overvoltage) Regenerative brake pre-alarm Electronic thermal relay function pre-alarm PU stop Maintenance timer warning Parameter write error Operation panel lock Password locked Speed limit indication Safety stop Ethernet communication fault Duplicate IP address IP address fault Incorrect parameter setting |
| Communication protocol | Ethernet EtherCAT |
| Digital inputs | 1 x digital input (sink) (DI0) 1 x digital input (sink) (DI1) 1 x digital input (SS1 safe stop channel 1) 1 x digital input (SS1 safe stop channel 2) |
| Digital outputs | 1 x digital output (SPDT (Single Pole Double Throw contact A/B/C) (programmable) 1 x digital output (programmable) (SO – Safety Monitor Output) |
| Analog inputs | 1 x analog input (0-5Vdc / 0-10Vdc / 0-20mA) 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) |
| Analog outputs | 1 x analog output (-10…+10Vdc; 12-bit) |
| Degree of protection | IP20 |
| Ambient air temperature for operation | -20…+60 °C |
| Chemical resistance | Chemical resistance (circuit board coating – IEC60721-3-3 3S2 3C2) |
| Rated apparent power (S) | 3.2kVA (ND Normal Duty) 3.8kVA (LD Light duty) |
| Application type | Smart factory Fans Transfer systems Food processing lines Food Packaging Cutting machines Sprinklers Automotive production lines Pumps |
| Order code / Manufacturer SKU | E820-0080EPC-60 FR-E820-0080EPC-60 |
| Manufacturer product status | Commercialized |
| Equivalent to | FR-E820-0080EPC-60 FRE8200080EPC60 |
| Compliant with standard(s) | cULus CE TUV IEC60721-3-3 (3S2; 3C2) |
| Class | SIL2 PLd |
| Benefits | Compact design Dual overload rating Auto-tune to Induction Motors (IM) and Permanent Magnet (PM) motors Energy saving Downtime reduction |
