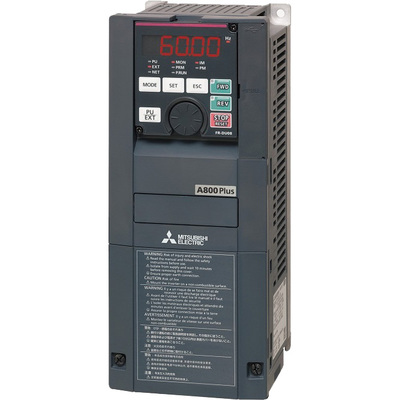

Inversor Mitsubishi Electric FR-A840-00310-2-60 11kW 380-500V Este Inversor de Frequência Mitsubishi Electric, modelo FR-A840-00310-2-60, é uma solução avançada para controle de velocidade e frequência de motores. Projetado com revestimento protetor e entrada analógica de 0-20mA, ele oferece durabilidade e precisão em ambientes industriais exigentes. Sua capacidade de comunicação via Modbus RTU facilita a integração em sistemas de automação. Com potência nominal de 11kW (15HP) em regime Normal Duty (ND), este inversor opera em redes trifásicas de 380V a 500V, com uma frequência de saída ajustável entre 0.2Hz e 590Hz. O grau de proteção IP20 garante proteção contra corpos sólidos de maior calibre. A série FR-A800 Plus destaca-se pela sua robustez e funcionalidades, incluindo resistência química conforme as normas IEC60721-3-3 3S2 e 3C2, ideal para aplicações com exposição a substâncias químicas. O inversor FR-A840-00310-2-60 da Mitsubishi Electric é uma unidade de velocidade variável (VSD/VFD) que incorpora tecnologias como controle PWM Soft, controle PWM de alta frequência e controle de excitação otimizado. Suas múltiplas funções de proteção, como sobrecorrente, sobretensão regenerativa e sobrecarga, asseguram a integridade do equipamento e do motor acoplado. A unidade oferece diversas entradas e saídas digitais e analógicas, além de protocolos de comunicação como Modbus RTU. ### Principais recursos * Revestimento protetor para circuitos impressos (resistência química IEC60721-3-3 3S2 3C2) * Terminal analógico CA (0-20mA) * Comunicação Modbus RTU integrada * Controle de velocidade e frequência variável * Múltiplas funções de proteção e segurança ### Especificações | Parâmetro | Valor | | :—————————— | :——————————————————————————————————————————- | | Marca principal | Mitsubishi Electric | | Função principal | Inversor de Velocidade/Frequência Variável (VSD/VFD) | | Série do produto / Nome da família | FREQROL FR-A800 Plus series | | Frequência da rede | (Entrada de alimentação) 50/60 Hz (saída) 0.2-590 Hz | | Tensão de alimentação (CA) | 380Vca-500Vca (400Vca / 415Vca / 480Vca) | | Tipo de rede | Trifásica/3P | | Corrente nominal | 23A (ND Normal Duty) 31A (SLD Super Light duty) 29A (LD Light duty) 17A (HD Heavy Duty) | | Potência ativa nominal (kW) | 11kW (ND Normal Duty) 15kW (SLD Super Light Duty) 15kW (LD Light duty) 7.5kW (HD Heavy Duty) | | Potência nominal (HP) | 15HP (ND Normal Duty) 20HP (SLD Super Light Duty) 20HP (LD Light duty) 10HP (HD Heavy Duty) | | Protocolo de comunicação | Modbus RTU | | Entradas digitais | 1 x entrada digital (fonte/dreno) (STF) 1 x entrada digital (fonte/dreno) (STR) 1 x entrada digital (fonte/dreno) (STOP) … | | Saídas digitais | 1 x saída digital (contato SPDT (A1/B1/C1) (programável) 1 x saída digital (contato SPDT (A2/B2/C2) (programável) … | | Entradas analógicas | 1 x entrada analógica (0-5Vcc / 0-10Vcc / 0-20mA) 1 x entrada analógica (0-5Vcc / 0-10Vcc) 1 x entrada analógica (0-5Vcc / 0-10Vcc / 4-20mA) | | Saídas analógicas | 1 x saída analógica (0-10Vcc) 1 x saída analógica (0-20mA) | | Grau de proteção | IP20 | | Resistência química | Resistência química (revestimento de circuito impresso – IEC60721-3-3 3S2 3C2) | | Número da Tarifa Aduaneira | 85049099 | | Potência aparente nominal (S) | 18kVA (ND Normal Duty) 24kVA (SLD Super Light Duty) 22kVA (LD Light duty) 13kVA (HD Heavy Duty) | | Tipo de aplicação | Guindaste, Elevador, Alimentos, Embalagem, Máquina-ferramenta, Prensas, Bobinagem/Desbobinagem | | Código do pedido / SKU | FR-A840-00310-2-60 | | Status do produto do fabricante | Comercializado | | Equivalente a | FRA84000310260 | | Em conformidade com padrão(s) | UL cUL CE KC (Coreia do Sul) Lei de Ondas de Rádio EAC RoHS IEC60721-3-3 (3S2; 3C2) | ### Documentos * [Mitsubishi Electric – Factory Automation (FA) – FREQROL – FR-A800 Plus Series for cranes – Catalog.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjMvMDEvMTMvMDgvMzQvNTkvYmIxNGJmMTAtY2RjNS00MWYwLTk3ZDItMDc4NGNjZjRmOGQ5L01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBGYWN0b3J5JTIwQXV0b21hdGlvbiUyMChGQSklMjAtJTIwRlJFUVJPTCUyMC0lMjBGUi1BODAwJTIwUGx1cyUyMFNlcmllcyUyMGZvciUyMGNyYW5lcyUyMC0lMjBDYXRhbG9nLnBkZiJdXQ?sha=0f7bc37ffb7a5846) * [Mitsubishi Electric – Factory Automation (FA) – FREQROL – FR-A800 Plus Series for roll to roll – Catalog.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjMvMDEvMTMvMDgvMzUvMTgvYzA4NTRhMTktMjQ1Mi00NjVkLThmMWMtZWUwM2ExYmM5ZDdkL01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBGYWN0b3J5JTIwQXV0b21hdGlvbiUyMChGQSklMjAtJTIwRlJFUVJPTCUyMC0lMjBGUi1BODAwJTIwUGx1cyUyMFNlcmllcyUyMGZvciUyMHJvbGwlMjB0byUyMHJvbGwlMjAtJTIwQ2F0YWxvZy5wZGYiXV0?sha=7e56804d66324d73) Este equipamento é equivalente ao código FRA84000310260. Para mais informações e soluções em automação, entre em contato conosco. Saiba Mais
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name | FREQROL FR-A800 Plus series |
| Network frequency | (Supply input) 50/60 Hz (output) 0.2-590 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) / Inverter Soft-PWM control High carrier frequency PWM control Optimum excitation control Maximum and minimum frequency settings Multi-speed operation Acceleration/deceleration pattern Thermal protection DC injection braking Starting frequency JOG operation Output stop (MRS) Stall prevention Regeneration avoidance Increased magnetic excitation deceleration Frequency jump Rotation display Automatic restart after instantaneous power failure Electronic bypass sequence Remote setting Automatic acceleration/deceleration Intelligent mode Retry function Carrier frequency selection Fast-response current limit Forward/reverse rotation prevention Operation mode selection Slip compensation Droop control Load torque high-speed frequency control Speed smoothing control Traverse Auto tuning Applied motor selection Gain tuning RS-485 communication PID control PID pre-charge function Easy dancer control Cooling fan operation selection Stop selection (deceleration stop/coasting) Power failure time deceleration-to-stop function Stop-on-contact control PLC function Life diagnosis Maintenance timer Current average monitor Multiple rating Speed control Torque control Position control Pre-excitation Torque limit Test run 24V power supply input for control circuit Safety stop function Anti-sway control Low-speed range speed control P gain Shortest-time torque startup Inching time adjustment function Brake sequence function DC feeding |
| Design | conformal coating CA term (0-20mA) Forced air cooling |
| Supply voltage (AC) | 380Vac-500Vac (400Vac / 415Vac / 480Vac) |
| Type of network | 3-phase/3P |
| Rated current | 23A (ND Normal Duty) 31A (SLD Super Light duty) 29A (LD Light duty) 17A (HD Heavy Duty) 150% In for 60s / 200% In for 3s overload current rating (inverse-time characteristics; Normal duty; 50°C ambient air temperature) 110% In for 60s / 120% In for 3s overload current rating (inverse-time characteristics; Super light duty; 40°C ambient air temperature) 120% In for 60s / 150% In for 3s overload current rating (inverse-time characteristics; Light duty; 50°C ambient air temperature) 200% In for 60s / 250% In for 3s overload current rating (inverse-time characteristics; Heavy duty; 50°C ambient air temperature) |
| Rated active power (kW) | 11kW (ND Normal Duty) 15kW (SLD Super Light Duty) 15kW (LD Light duty) 7.5kW (HD Heavy Duty) |
| Rated power (HP) | 15HP (ND Normal Duty) 20HP (SLD Super Light Duty) 20HP (LD Light duty) 10HP (HD Heavy Duty) |
| Protection functions | Overcurrent trip during acceleration Overcurrent trip during constant speed Overcurrent trip during deceleration or stop Regenerative overvoltage trip during acceleration Regenerative overvoltage trip during constant speed Regenerative overvoltage trip during deceleration or stop Inverter overload trip Motor overload trip Heatsink overheat Stall prevention stop Brake transistor alarm detection Output side earth (ground) fault overcurrent Output short-circuit Output phase loss Option fault Communication Option fault Parameter storage device fault PU disconnection Parameter storage device fault CPU fault Operation panel power supply short circuit/RS-485 terminals power supply short circuit 24Vdcpower fault Communication fault (inverter) Analog input fault USB communication fault Safety circuit fault Option fault Internal circuit fault Excessive retry count (not available in initial status) PTC thermistor operation Loss of synchronism detection Abnormal output current detection Overspeed occurrence 4mA input fault Pre-charge fault PID signal fault Opposite rotation deceleration fault External thermal relay operation Instantaneous power failure Inrush current limit circuit fault Undervoltage Input phase loss |
| Communication protocol | Modbus RTU |
| Digital inputs | 1 x digital input (source/sink) (STF) 1 x digital input (source/sink) (STR) 1 x digital input (source/sink) (STOP) 1 x digital input (source/sink) (RH) 1 x digital input (source/sink) (RM) 1 x digital input (source/sink) (RL) 1 x digital input (source/sink) (JOG) 1 x digital input (source/sink) (RT) 1 x digital input (source/sink) (MRS) 1 x digital input (source/sink) (RES) 1 x digital input (source/sink) (AU) 1 x digital input (source/sink) (CS) 1 x digital input (SS1 safe stop channel 1) 1 x digital input (SS1 safe stop channel 2) |
| Digital outputs | 1 x digital output (SPDT (Single Pole Double Throw contact A1/B1/C1) (programmable) 1 x digital output (SPDT Single Pole Double Throw contact A2/B2/C2) (programmable) 1 x digital output (sink/source open collector transistor) (RUN; programmable) 1 x digital output (sink/source open collector transistor) (SU; programmable) 1 x digital output (sink/source open collector transistor) (IPF; programmable) 1 x digital output (sink/source open collector transistor) (OL; programmable) 1 x digital output (sink/source open collector transistor) (FU; programmable) |
| Analog inputs | 1 x analog input (0-5Vdc / 0-10Vdc / 0-20mA) 1 x analog input (0-5Vdc / 0-10Vdc) 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) |
| Analog outputs | 1 x analog output (0-10Vdc) 1 x analog output (0-20mA) |
| Degree of protection | IP20 |
| Chemical resistance | Chemical resistance (circuit board coating – IEC60721-3-3 3S2 3C2) |
| Customs Tariff Number | 85049099 |
| Rated apparent power (S) | 18kVA (ND Normal Duty) 24kVA (SLD Super Light Duty) 22kVA (LD Light duty) 13kVA (HD Heavy Duty) |
| Application type | Transfer Lift Food Packaging Machine tool Press Printing Winding/unwinding |
| Order code / Manufacturer SKU | FR-A840-00310-2-60 |
| Manufacturer product status | Commercialized |
| Equivalent to | FRA84000310260 |
| Compliant with standard(s) | UL cUL CE KC (South Korea) Radio Waves Act EAC RoHS IEC60721-3-3 (3S2; 3C2) |
