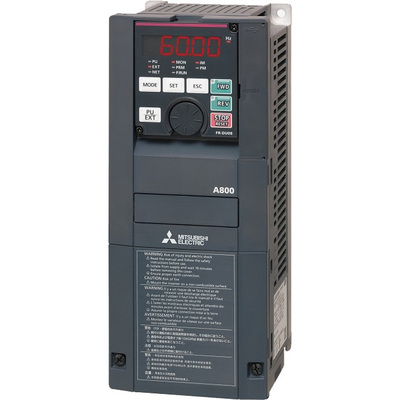

## Visão geral O Inversor de Frequência FR-A842-07700-1-60 da Mitsubishi Electric é um dispositivo de velocidade/frequência variável (VSD/VFD) da série FREQROL FR-A800. Ele conta com um conversor separado (FR-CC2), vendido à parte, revestimento protetor para a placa de circuito impresso e saída de pulso (PTO). Sua operação abrange uma faixa de tensão de entrada de 380V a 500V trifásicos, com capacidade para motores de até 315kW (420HP) em serviço normal (ND) e corrente nominal de 610A. Este equipamento suporta a comunicação Modbus RTU e possui um índice de proteção IP00. As tensões nominais de entrada suportadas incluem 400V, 415V e 480V. A resistência química do revestimento da placa de circuito impresso está em conformidade com as normas IEC60721-3-3 3S2 e 3C2. O código FR-A842-07700-1-60 é equivalente ao código FRA84207700160. ### Principais recursos
- Controle de velocidade/frequência variável (VSD/VFD)
- Entrada trifásica 380V-500V
- Potência de 315kW / 420HP (ND)
- Corrente nominal de 610A (ND)
- Comunicação Modbus RTU
- Revestimento protetor de placa de circuito impresso
- Saída de pulso (PTO)
- Grau de proteção IP00
- Conformidade com normas IEC60721-3-3 3S2, 3C2
- Conversor separado (FR-CC2) vendido à parte
### Especificações | Parâmetro | Valor
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name | FREQROL FR-A800 series |
| Network frequency | (output) 0.2-590 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) / Inverter Soft-PWM control High carrier frequency PWM control Optimum excitation control Maximum and minimum frequency settings Multi-speed operation Acceleration/deceleration pattern Thermal protection DC injection braking Starting frequency JOG operation Output stop (MRS) Stall prevention Regeneration avoidance Increased magnetic excitation deceleration Frequency jump Rotation display Automatic restart after instantaneous power failure Electronic bypass sequence Remote setting Automatic acceleration/deceleration Retry function Carrier frequency selection Fast-response current limit Forward/reverse rotation prevention Operation mode selection Slip compensation Droop control Load torque high-speed frequency control Speed smoothing control Traverse Auto tuning Applied motor selection Gain tuning RS-485 communication PID control PID pre-charge function Easy dancer control Cooling fan operation selection Stop selection (deceleration stop/coasting) Power-failure deceleration stop function Stop-on-contact control PLC function Life diagnosis Maintenance timer Current average monitor Multiple rating Speed control Torque control Position control Pre-excitation Torque limit Test run 24V power supply input for control circuit Safety stop function Anti-sway control |
| Design | separate converter (FR-CC2; sold separately) conformal coating FM term. (PTO output) Forced air cooling |
| Supply voltage (AC) | 380Vac-500Vac (400Vac / 415Vac / 480Vac) |
| Type of network | 3-phase/3P |
| Rated current | 610A (ND Normal Duty) 770A (SLD Super Light duty) 683A (LD Light duty) 547A (HD Heavy Duty) 150% In for 60s / 200% In for 3s overload current rating (inverse-time characteristics; Normal duty; 50°C ambient air temperature) 110% In for 60s / 120% In for 3s overload current rating (inverse-time characteristics; Super light duty; 40°C ambient air temperature) 120% In for 60s / 150% In for 3s overload current rating (inverse-time characteristics; Light duty; 50°C ambient air temperature) 200% In for 60s / 250% In for 3s overload current rating (inverse-time characteristics; Heavy duty; 50°C ambient air temperature) |
| Rated active power (kW) | 315kW (ND Normal Duty) 400kW (SLD Super Light Duty) 355kW (LD Light duty) 280kW (HD Heavy Duty) |
| Rated power (HP) | 420HP (ND Normal Duty) 535HP (SLD Super Light Duty) 475HP (LD Light duty) 375HP (HD Heavy Duty) |
| Protection functions | Overcurrent trip during acceleration Overcurrent trip during constant speed Overcurrent trip during deceleration or stop Regenerative overvoltage trip during acceleration Regenerative overvoltage trip during constant speed Regenerative overvoltage trip during deceleration or stop Inverter overload trip (electronic thermal relay function) Motor overload trip (electronic thermal relay function) Heatsink overheat Stall prevention stop Output side earth (ground) fault overcurrent Output short-circuit Output phase loss Option fault Communication Option fault Parameter storage device fault PU disconnection Parameter storage device fault CPU fault Operation panel power supply short circuit/RS-485 terminals power supply short circuit 24Vdcpower fault Communication fault (inverter) Analog input fault USB communication fault Safety circuit fault Option fault Internal circuit fault Encoder pulse number setting error Overload trip External thermal relay operation (not available in initial status) PTC thermistor operation Retry count excess Abnormal output current detection Overspeed occurrence Speed deviation excess detection Signal loss detection Encoder phase fault 4mA input fault PID signal fault Opposite rotation deceleration fault |
| Communication protocol | Modbus RTU |
| Digital inputs | 1 x digital input (source/sink) (STF) 1 x digital input (source/sink) (STR) 1 x digital input (source/sink) (STOP) 1 x digital input (source/sink) (RH) 1 x digital input (source/sink) (RM) 1 x digital input (source/sink) (RL) 1 x digital input (source/sink) (JOG) 1 x digital input (source/sink) (RT) 1 x digital input (source/sink) (MRS) 1 x digital input (source/sink) (RES) 1 x digital input (source/sink) (AU) 1 x digital input (source/sink) (CS) 1 x digital input (SS1 safe stop channel 1) 1 x digital input (SS1 safe stop channel 2) |
| Digital outputs | 1 x digital output (SPDT (Single Pole Double Throw contact A1/B1/C1) (programmable) 1 x digital output (SPDT Single Pole Double Throw contact A2/B2/C2) (programmable) 1 x digital output (sink/source open collector transistor) (RUN; programmable) 1 x digital output (sink/source open collector transistor) (SU; programmable) 1 x digital output (sink/source open collector transistor) (IPF; programmable) 1 x digital output (sink/source open collector transistor) (OL; programmable) 1 x digital output (sink/source open collector transistor) (FU; programmable) 1 x digital output (PTO Pulse Train Output) (Frequency meter indicator) 1 x digital output (programmable) (SO – Safety Monitor Output) |
| Analog inputs | 1 x analog input (0-5Vdc / 0-10Vdc / 0-20mA) 1 x analog input (0-5Vdc / 0-10Vdc) 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) |
| Analog outputs | 1 x analog output (0-10Vdc) (signal output) |
| Degree of protection | IP00 |
| Chemical resistance | Chemical resistance (circuit board coating – IEC60721-3-3 3S2 3C2) |
| Rated apparent power (S) | 465kVA (ND Normal Duty) 587kVA (SLD Super Light Duty) 521kVA (LD Light duty) 417kVA (HD Heavy Duty) |
| Application type | Transfer Lift Food Packaging Machine tool Press Printing Winding/unwinding |
| Order code / Manufacturer SKU | FR-A842-07700-1-60 |
| Manufacturer product status | Commercialized |
| Equivalent to | FRA84207700160 |
| Compliant with standard(s) | UL cUL CE KC (South Korea) Radio Waves Act EAC RoHS IEC60721-3-3 (3S2; 3C2) |
