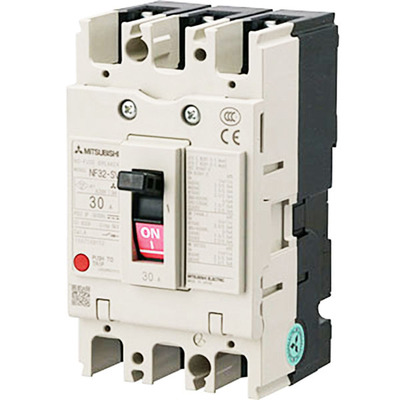

Este disjuntor é compatível com a série WS-V da Mitsubishi Electric e é equivalente ao SKU NF32SV3P12AMB.
Para mais informações ou para discutir suas necessidades, entre em contato conosco.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi |
| Main function | Motor Protection Circuit Breaker (MPCB) |
| Product series / family name | WS-V series |
| Sub-range name | NF-MB (motor protection) |
| Functions | Thermal-Magnetic Motor Protection Circuit Breaker (MPCB) / Manual Mot. Protector Starter |
| Poles | 3-poles (3P) |
| Rated current | 12A |
| Trip current rating | 12 AT |
| Frame current rating | 30 AF |
| Rated power | 5.5kW (400Vac-440Vac) |
| Rated impulse voltage (Uimp) | 8 kV |
| Rated insulation voltage (Ui) | 500 V |
| Connection type | Front lugs or bars connection |
| Ultimate short circuit current breaking capacity (Icu) | 7.5kA (230Vac; IEC60947) 5kA (380Vac; IEC60947) 5kA (400Vac; IEC60947) 2.5kA (415Vac; IEC60947) 2.5kA (440Vac; IEC60947) |
| Service short circuit current breaking capacity (Ics) | 7.5kA (230Vac) 5kA (380Vac) 5kA (400Vac) 2.5kA (415Vac) 2.5kA (440Vac) |
| Service short circuit current breaking capacity as a percentage of Icu (Ics%) | (400Vac) 100 % |
| Trip unit type | Thermal-Magnetic (fixed) |
| Protection functions | Thermal protection (Overload) Magnetic protection (Short-circuit) |
| Protection settings | Thermal protection (Overload) — tripping threshold fixed at 12A |
| Mounting mode | Surface mounting (or DIN rail with optional adapter) |
| Dimensions | W75mm x H130mm x D90mm |
| Electrical durability (with load) | (440Vac) 6000 operations |
| Mechanical durability (at no load) | 10000 operations |
| Utilisation category | A |
| Manufacturer product status | Commercialized |
| Equivalent to | NF32SV3P12AMB |
| Compliant with standard(s) | IEC 60947-2 EN 60947-2 CE marking Marine use approval NK; LR; ABS; GL |
| Benefits | The all-new “World Super V Series (WS-V Series)” built with a new breaking technology is designed to respond to the individual market needs of the receiving and distribution and machineries. This series is the result of revolutionary evolution Equipped with a new cutoff technology to enhance interrupting performance Compatible with the latest standards of various countries to deliver optimal performance according to individual needs. |
| Degree of pollution | 3 |
