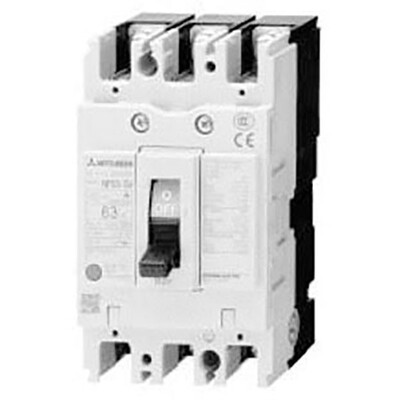

Especificações
| Parâmetro |
Valor |
| Primary brand |
Mitsubishi |
| Main function |
Moulded Case Circuit Breaker (MCCB) with embedded earth leakage protection / ELCB |
| Product series / family name |
WS-V series |
| Sub-range name |
NV-S (standard class) harmonic surge ready |
| Functions |
Moulded Case Circuit Breaker (MCCB) with embedded earth leakage protection / Earth Leakage Circuit Breaker (ELCB) |
| Design |
high-speed type |
| Poles |
3-poles (3P) |
| Rated current |
63A |
| Trip current rating |
63 AT |
| Frame current rating |
63 AF |
| Residual current sensitivity |
100mA / 200mA / 500mA (adjustable) |
| Rated impulse voltage (Uimp) |
6 kV |
| Connection type |
Front lugs or bars connection |
| Ultimate short circuit current breaking capacity (Icu) |
15kA (100Vac; IEC60947) 15kA (200Vac; IEC60947) 15kA (230Vac; IEC60947) 7.5kA (400Vac; IEC60947) 7.5kA (415Vac; IEC60947) 7.5kA (440Vac; IEC60947) |
| Service short circuit current breaking capacity (Ics) |
15kA (100Vac) 15kA (200Vac) 15kA (230Vac) 7.5kA (400Vac) 7.5kA (415Vac) 7.5kA (440Vac) |
| Service short circuit current breaking capacity as a percentage of Icu (Ics%) |
(400Vac) 100 % |
| Trip unit type |
Thermal-Magnetic (fixed) |
| Protection functions |
Thermal protection (Overload) Magnetic protection (Short-circuit) Earth leakage protection |
| Protection settings |
Thermal protection (Overload) — tripping threshold fixed at 63A |
| Mounting mode |
Surface mounting (or DIN rail with optional adapter) |
| Dimensions |
W75mm x H130mm x D90mm |
| Electrical durability (with load) |
8000 operations |
| Mechanical durability (at no load) |
15000 operations |
| Utilisation category |
A |
| Manufacturer product status |
Commercialized |
| Equivalent to |
NV63SV3P63A100 |
| Rated Voltage (AC) – Phase-to-phase |
100-440 V |
| Compliant with standard(s) |
IEC 60947-2 EN 60947-2 CE marking |
| Benefits |
The all-new “World Super V Series (WS-V Series)” built with a new breaking technology is designed to respond to the individual market needs of the receiving and distribution and machineries. This series is the result of revolutionary evolution Equipped with a new cutoff technology to enhance interrupting performance Compatible with the latest standards of various countries to deliver optimal performance according to individual needs. |
| Degree of pollution |
2 |
