Entre em contato para saber mais sobre esta unidade de CPU PLC.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | CPU unit |
| Product series / family name | Industrial automation > PLCs (Programmable Logic Controllers) > MELSEC iQ-F series > Controllers (CPUs) |
| Sub-range name | MELSEC iQ-F – FX5U series |
| Functions | Programmable Logic Controller (PLC) CPU unit I/O control system — Refresh system Program execution type — stored-program repetitive operation Program execution type — standby type Program execution type — initial Program execution type — scan Program execution type — fixed-cycle Program execution type — event |
| Design | built-in I/Os starter kit / bundle |
| Supply voltage (DC) | 24Vdc |
| Programming languages | Ladder diagram (LD) / Relay symbol language Structured Text (ST) Function Block Diagram (FBD) function (FUN) label programming (local/global) |
| Memory capacity | 64Ksteps (128KBytes) flash memory (Program) 1024 points (Timers) 1024 points (Counters) 8000 points (Data registers) 32768 points (File registers) 4GBytes max (SD/SDHC memory card) 120kBytes (Device / label memory) 5MBytes (Data memory / standard ROM) |
| Connection type | screw-clamp connections (I.O’s) RJ45 port (Ethernet) |
| Communication protocol | RS-485 Ethernet |
| Mounting mode | DIN rail |
| Digital inputs | 32 x digital inputs (24Vdc; Sink/Source) |
| Digital outputs | 32 x digital outputs (24Vdc; Sink) |
| Processing time | 34ns / instruction (LD X0) – 0.000034 ms 34ns / instruction (MOV D0 D1) – 0.000034 ms |
| Current consumption | 900mA / 0.9A |
| Power consumption | 40 W |

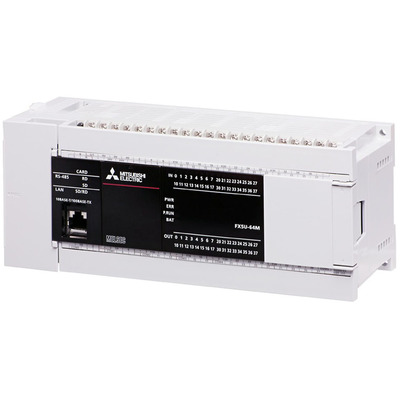

| Contents | 1 x CPU (FX5U-64MT/DS) MELSOFT s/w. |
| Order code / Manufacturer SKU | FX5U-64MT/DS-K |
| Manufacturer product status | Commercialized |
| Equivalent to | FX5U64MTDSK |
| Compliant with standard(s) | CE (EMC directive) CE (LVD – Low Voltage Directive) cUL KC |
| Refreshing time | (Constant scan) 0.2ms-2s / 0.0002-2 s (Fixed cycle interrupt) 1ms-60s / 0.001-60 s |
