Especificações
| Parâmetro | Valor |
|---|---|

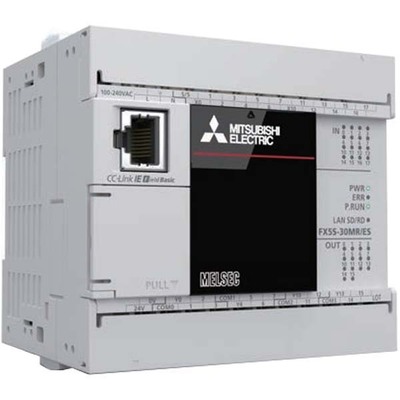

| Primary brand | Mitsubishi Electric |
| Main function | CPU unit |
| Product series / family name | Industrial automation > PLCs (Programmable Logic Controllers) > MELSEC iQ-F series > Controllers (CPUs) |
| Sub-range name | MELSEC iQ-F – FX5S series |
| Functions | Programmable Logic Controller (PLC) CPU unit Program execution type — standby type Program execution type — initial Program execution type — scan Program execution type — fixed-cycle Program execution type — event |
| Design | built-in I/Os |
| Supply voltage (AC) | 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) |
| Memory capacity | 48Ksteps (96KBytes) flash memory (Program) 1024 points (Timers) 1024 points (Counters) 8000 points (Data registers) 32768 points (File registers) 16GBytes max (SD/SDHC memory card) 120kBytes (Device / label memory) 5MBytes (Data memory / standard ROM) |
| Connection type | screw-clamp connections (I.O’s) RJ45 port (Ethernet) |
| Communication protocol | Ethernet |
| Mounting mode | DIN rail |
| Digital inputs | 16 x digital inputs (24Vdc; Sink/Source) |
| Digital outputs | 14 x digital outputs (24Vdc; Sink) |
| Ambient air temperature for operation | +32°F…+131°F / 0°C…+55 °C |
| Ambient air temperature for storage | -13°F…+167°F / -25°C…+75 °C |
| Processing time | 84ns / instruction (LD X0) – 0.000084 ms 100ns / instruction (MOV D0 D1) – 0.0001 ms |
| Current consumption | 400mA / 0.4A |
| Power consumption | 28 W |
| Order code / Manufacturer SKU | FX5S-30MT/ES |
| Manufacturer product status | Commercialized |
| Compliant with standard(s) | CE (EMC directive) CE (LVD – Low Voltage Directive) cUL UL KC CE (RoHS) |
| Refreshing time | (Constant scan) 0.5ms-2s / 0.0002-2 s (Fixed cycle interrupt) 1ms-60s / 0.001-60 s |
