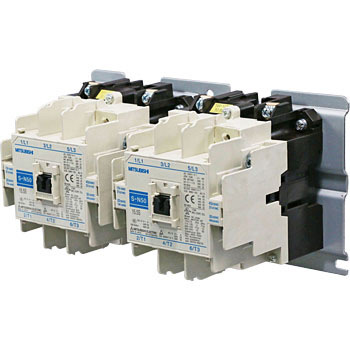

Contator Reversor Mitsubishi Electric MS-N S-2xN50 AC100V
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Contactor |
| Product series / family name | MS-N series |
| Functions | Magnetic contactors reverser assembly |
| Rated current | 55A (240Vac; AC-3) 50A (380Vac / 400Vac / 415Vac / 440Vac; AC-3) 80A (UL continuous current rating) 80A (AC-1) |
| Rated active power (kW) | 15kW (240Vac; AC-3; IEC) 22kW (440Vac; AC-3; IEC) |
| Rated power (HP) | 3HP (120Vac; Single-phase; UL) 7.5HP (7-1/2HP) (240Vac; Single-phase; UL) 15HP (208Vac; 3-phase; UL) 15HP (240Vac; 3-phase; UL) 30HP (480Vac; 3-phase; UL) 30HP (600Vac; 3-phase; UL) |
| Rated operating voltage (Ue) | 690 V |
| Connection type | Screw-clamp connections |
| Poles | 2 x 3 Pole(s) |
| Control Voltage (AC) | 100Vac-127Vac (50Hz/60Hz) (110Vac / 120Vac) |
| Mounting mode | Surface |
| Normally Open (NO) auxliary contacts | 4 NO contacts |
| Normally Closed (NC) auxiliary contacts | 4 NC contacts |
| Number of Normally Open (NO) circuits | 3 NO Pole(s) |
| Degree of protection | IP00 |
| Application type | Reversing (REV) FVR (Full-Voltage Reversing) |
| Manufacturer product status | Commercialized |
| Equivalent to | S-2XN50AC100V |
| Compliant with standard(s) | CE TUV Rheinland cULus UL Listed cUL CCC LR (Lloyd’s Register) BV (Bureau Veritas) KR (Korean Register of Shipping) NK (Nippon Kaiji Kyokai) |
