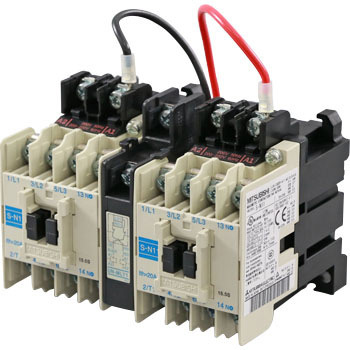

Este contator reversor Mitsubishi Electric série MS-N, com SKU S-2xN11CX AC120V, opera com 2 conjuntos de 3 polos, corrente nominal de 12A em AC-3 e potência de 5.5kW.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Contactor |
| Product series / family name | MS-N series |
| Functions | Magnetic contactors reverser assembly |
| Rated current | 13A (240Vac; AC-3) 12A (380Vac / 400Vac / 415Vac / 440Vac; AC-3) 20A (UL continuous current rating) 20A (AC-1) |
| Rated active power (kW) | 3.5kW (240Vac; AC-3; IEC) 5.5kW (440Vac; AC-3; IEC) |
| Rated power (HP) | 1/2HP (120Vac; Single-phase; UL) 1.5HP (1-1/2HP) (240Vac; Single-phase; UL) 3HP (208Vac; 3-phase; UL) 3HP (240Vac; 3-phase; UL) 7.5HP (7-1/2HP) (480Vac; 3-phase; UL) 7.5HP (7-1/2HP) (600Vac; 3-phase; UL) |
| Rated operating voltage (Ue) | 690 V |
| Connection type | Screw-clamp connections with CAN term. (finger protection) |
| Poles | 2 x 3 Pole(s) |
| Control Voltage (AC) | 110Vac-120Vac (50Hz) 115-120Vac(60Hz) |
| Mounting mode | Surface |
| Normally Open (NO) auxliary contacts | 2 NO contacts |
| Normally Closed (NC) auxiliary contacts | 2 NC contacts |
| Number of Normally Open (NO) circuits | 3 NO Pole(s) |
| Degree of protection | IP20 |
| Application type | Reversing (REV) FVR (Full-Voltage Reversing) |
| Manufacturer product status | Phasing out |
| Equivalent to | S-2XN11(CX)AC120V |
| Product replaced by | S-2xN11CX AC100V |
| Compliant with standard(s) | CE TUV Rheinland cULus UL Listed cUL CCC LR (Lloyd’s Register) BV (Bureau Veritas) KR (Korean Register of Shipping) NK (Nippon Kaiji Kyokai) |
