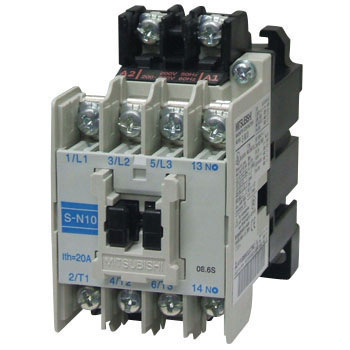

Entre em contato conosco para mais detalhes sobre o Contator Magnético Mitsubishi Electric S-N10CX AC100V e como ele pode atender às suas necessidades de aplicação.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Contactor |
| Product series / family name | MS-N series |
| Functions | Magnetic contactor |
| Rated current | 11A (240Vac; AC-3) 9A (380Vac / 400Vac / 415Vac / 440Vac; AC-3) 13A (UL continuous current rating) 20A (AC-1) |
| Rated active power (kW) | 2.5kW (240Vac; AC-3; IEC) 4kW (440Vac; AC-3; IEC) |
| Rated power (HP) | 1/2HP (120Vac; Single-phase; UL) 1.5HP (1-1/2HP) (240Vac; Single-phase; UL) 3HP (208Vac; 3-phase; UL) 3HP (240Vac; 3-phase; UL) 5HP (480Vac; 3-phase; UL) 5HP (600Vac; 3-phase; UL) |
| Rated operating voltage (Ue) | 690 V |
| Connection type | Screw-clamp connections with CAN term. (finger protection) |
| Poles | 3 Pole(s) |
| Control Voltage (AC) | 100Vac-127Vac (50Hz/60Hz) (110Vac / 120Vac) |
| Mounting mode | DIN rail Surface |
| Normally Open (NO) auxliary contacts | 1 NO contacts |
| Number of Normally Open (NO) circuits | 3 NO Pole(s) |
| Degree of protection | IP20 |
| Net Width (mm) | 43 mm |
| Electrical durability (with load) | 1 000 000 operations |
| Mechanical durability (at no load) | 10 000 000 operations |
| Application type | Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.) |
| Manufacturer product status | Commercialized |
| Equivalent to | S-N10(CX)AC100V |
| Replaces | S-N10CX AC120V |
| Compliant with standard(s) | CE TUV Rheinland cULus UL Listed cUL CCC LR (Lloyd’s Register) BV (Bureau Veritas) KR (Korean Register of Shipping) NK (Nippon Kaiji Kyokai) |
