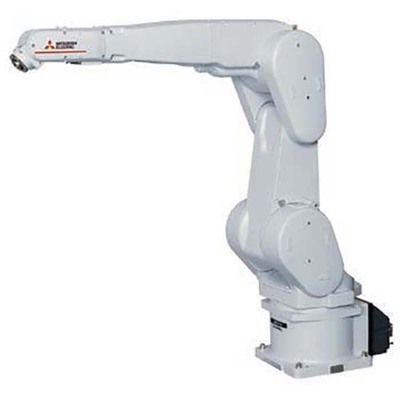

## Documentos * [Mitsubishi Electric – Industrial robots – MELFA FR series – Catalog.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjIvMTIvMTgvMjAvMDcvMTMyOWNiZGMtYTY0NS00NTcxLTlmNTUtMDU3ZTY0YmQxYTFlL01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBJbmR1c3RyaWFsJTIwcm9ib3RzJTIwLSUyME1FTEZBJTIwRlIlMjBzZXJpZXMlMjAtJTIwQ2F0YWxvZy5wZGYiXV0?sha=7ecee2c184969c93) * [Mitsubishi Electric – Industrial robots – Product selection guide.pdf](https://cdn.kyklo.co/assets/W1siZiIsIjIwMjIvMTIvMTgvMjAvMDcvNTYvMTc3MTEwMGMtZjQzYS00NjQzLThiMmYtMWZkZDA2NjE3MDhjL01pdHN1YmlzaGklMjBFbGVjdHJpYyUyMC0lMjBJbmR1c3RyaWFsJTIwcm9ib3RzJTIwLSUyMFByb2R1Y3QlMjBzZWxlY3Rpb24lMjBndWlkZS5wZGYiXV0?sha=23e9622bb8d8c923) Este produto é equivalente ao modelo RV-7FRLL-D-SH05. A série MELFA FR é compatível com a “iQ Platform”. Para mais informações e para discutir suas necessidades, entre em contato conosco. [https://mokka-sensors.com.br/#contato](https://mokka-sensors.com.br/#contato)
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Industrial robot arm |
| Product series / family name | Robots > Autonomous > Vertical > MELFA FR-series robots |
| Sub-range name | MELFA FR-series type RV-7FRLL (extra long arm) |
| Stroke length | Motion space upper and lower vertical limits -846.9mm…+1821.5mm |
| Functions | Vertical multi-joint industrial robotic arm |
| Design | built-in stand-alone controller (CR800-D) Tooling device configuration “SH05” (hand control + hand input signal + vision sensr.) internal wiring model vertically articulated multiple-joint type 6-axes / degrees of freedom AC servo motor drv. system Absolute encod. feedback on every axis 380° (+/-190°) angular span (articulation J1) 240° (-90°…+150°) angular span (articulation J2) 167.5° (-10°…+157.5°) angular span (articulation J3) 400° (+/-200°) angular span (articulation J4) 240° (+/-120°) angular span (articulation J5) 720° (+/-360°) angular span (articulation J6) |
| Capacity | 7kg max. load |
| Moment of inertia | 0.45kg.m2 (J4 axis) 0.45kg.m2 (J5 axis) 0.1kg.m2 (J6 axis) Tolerable moment 16.2Nm (J4 axis) Tolerable moment 16.2Nm (J5 axis) Tolerable moment 6.86Nm (J6 axis) |
| Connection type | 2 x 6mm pneumatic connections (for robot hand I.O.) 8 x 4mm / 4 x 4mm pneumatic connections (for hand I.O.) 5m machine cable with connector on both ends |
| Length | 565mm + 805mm (arm 1) |
| Mounting mode | Floor or ceiling or wall mounting |
| Speed | J1 450°/s J2 360°/s J3 219°/s J4 312°/s J5 219°/s J6 110°/s 15300mm/s composite max. speed 0.63s typical cycle time (with 1kg load; back-and-forth movement over a vertical distance of 25mm and horizontal distance of 300mm) |
| Measurement accuracy | Pose repeatability — +/-0.02mm |
| Degree of protection | IP40 |
| Dimensions | 1503mm reach radius (total arm length) |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | 0…+40 °C |
| Contents | CR800-D controller |
| Order code / Manufacturer SKU | RV7FRLLDSH05 |
| Manufacturer product status | Commercialized |
| Equivalent to | RV-7FRLL-D-SH05 |
| Benefits | Best fit for complex assembling. The function expansion option named “MELFA Smart Plus” is available with MELFA FR series. “MELFA Smart Plus” further broaden the range of possibilities of the MELFA FR series offering performance beyond your expectations. Collaboration with MELSEC Q series/MELSEC iQ-R server series realize more advanced work. Maximum load capacity 3kg to 20kg controller types R controller type — Compatible with the “iQ Platform”. MELSEC iQ-R series-dedicated. (CR800-R controller) Q controller type — Compatible with the “iQ Platform”. MELSEC Q series-dedicated. (CR800-Q controller) D controller type — Standalone controller (CR800-D controller) |
