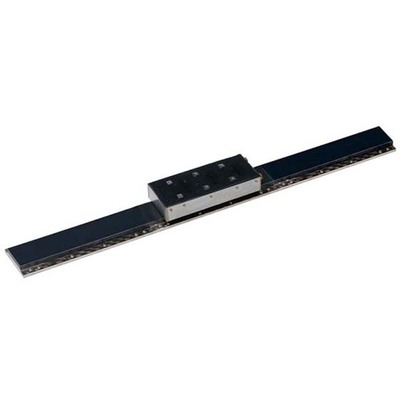

Atuador linear Mitsubishi Electric MELSERVO J4 LM-FP2F-18M-1SS0. Bobina com termistor integrado, refrigeração natural/líquida. Força 900N/1800N/5400N, velocidade 2m/s, corrente 12A, temp. 0…+40°C.
Especificações
| Parâmetro | Valor |
|---|---|
| Primary brand | Mitsubishi Electric |
| Main function | Electric linear actuator (Coil) |
| Product series / family name | MELSERVO J4 series |
| Sub-range name | LM-FP series |
| Functions | Linear actuator / servo motor primary side (coil only) |
| Design | built-in thermistor core type natural cooling or liquid cooling |
| Rated current | 12A (natural cooling) 23A (liquid-cooling) |
| Speed | 2m/s |
| Dimensions | H70.1mm x W120mm x D800mm |
| Net Height (mm) | 70.1 mm |
| Net Width (mm) | 120 mm |
| Net Depth (mm) | 800 mm |
| Ambient air temperature for operation | 0…+40 °C |
| Ambient air temperature for storage | -15°C…+70 °C |
| Force | continuous thrust (natural cooling) 900N / (liquid cooling) 1800N max. thrust 5400N |
| Technical compatibility with | LM-FS[]-1SS0 magnet |
| Maximum current | 87 A |
| Rated power | 10000 VA |
| Order code / Manufacturer SKU | LM-FP2F-18M-1SS0 |
| Manufacturer product status | Commercialized |
| Equivalent to | LMFP2F18M1SS0 |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC DIN VDE0580 EN50581 UL1004-6 CSA EAC |
| Mechanical withstand | 5400 N |
| Recommended accessories | for standard 1-axis use amplifiers – MR-J4-700GF – MR-J4-700GF-RJ – MR-J4-700B – MR-J4-700B-RJ – MR-J4-DU900B – MR-J4-DU900B-RJ – MR-J4-700A – MR-J4-700A-RJ Use amplifier motor cables as follows compatible with Secondary side magnet ( MR-J4-700A-RJ ) ( LM-FS20-576-1SS0 ) |
